Servo-Matik NetPro-SVR 10 kVA Single-Phase Static Voltage Stabilizer
Original price was: KSh 355,000.00.KSh 288,600.00Current price is: KSh 288,600.00. ex VAT

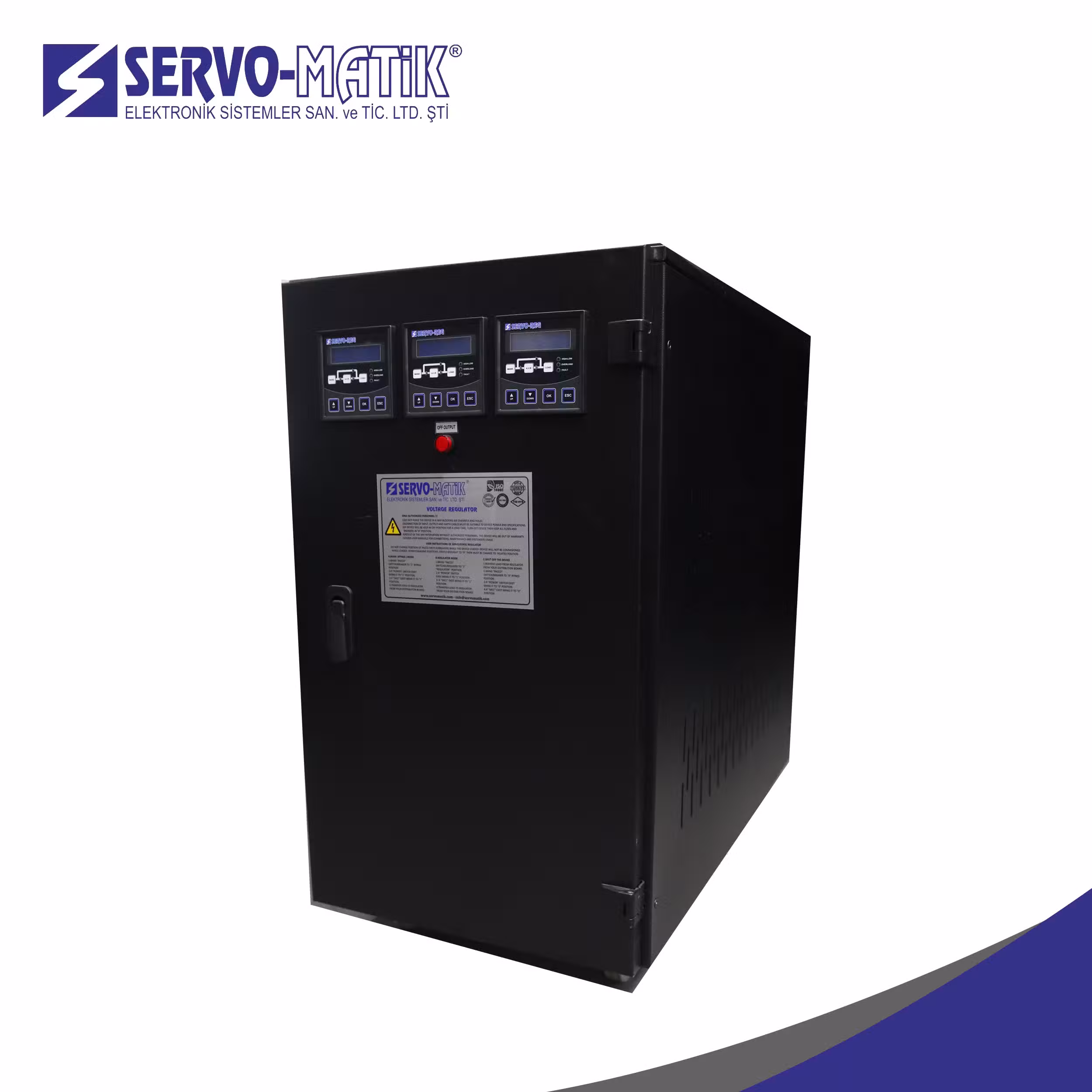

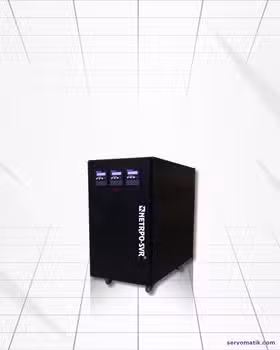

Servo-Matik NetPro-SVR 10 kVA Single-Phase Static Voltage Stabilizer
| Model | SM-SVR-M 103-001 |
| Topology | Static, thyristor controlled |
| Phases | Single phase plus neutral |
| Rated power | 10 kVA |
| Input voltage range | 130–270 V AC |
| Output voltage | 220 V RMS ±1% to ±3% |
| Frequency | 50 Hz ±5% |
| Response time | Approximately 20 ms |
| Efficiency | Above 98% at full load |
| Dimensions | 55 x 35 x 27 cm |
| Weight | 57 kg |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Single-Phase Voltage Regulation for Sensitive Loads
The Servo-Matik static voltage stabilizer holds a 10 kVA single-phase output at 220 V RMS within ±1% to ±3%. It corrects input swings between 130 V and 270 V in roughly 20 ms.
A RISC microprocessor drives thyristor tap selection on the autotransformer. True RMS sensing keeps regulation stable through waveform distortion and generator supply. Step-up and step-down switching transfers energy at zero crossings, so the output carries no added harmonics.
The 57 kg chassis measures 55 x 35 x 27 cm and uses temperature-controlled fan cooling. A manual mains-to-regulator bypass switch allows service without load interruption. Standard EMI and RFI filters sit on the input. The enclosure meets IP20 and runs between 0°C and 40°C.
Key Features
Thyristor Tap Control
Semiconductor switches change autotransformer taps without moving parts or brush wear.True RMS Feedback Loop
The controller measures effective voltage and ignores waveform distortion on the input.Fast Correction Window
- 20 ms response inside the 165 V to 255 V regulating band
- 5000 V/s correction rate on large input steps
- 200% overload ride-through for 10 seconds
Manual Bypass Selector
A rotary switch moves the load between mains and regulated output for maintenance.LCD Monitoring
The panel shows input voltage, output voltage and load percentage in real time.Protection Suite
Short circuit, overload, over-temperature and output over-voltage faults trip the output.Passive Filtering
EMI and RFI filters on the input limit conducted noise reaching downstream equipment.
Specifications
| Feature | Specification |
|---|---|
| Model | SM-SVR-M 103-001 |
| Topology | Static, thyristor controlled |
| Phases | Single phase plus neutral |
| Rated power | 10 kVA |
| Input voltage range | 130–270 V AC |
| Regulated input band | 165–255 V AC |
| Output voltage | 220 V RMS ±1% to ±3% |
| Frequency | 50 Hz ±5% |
| Correction rate | 5000 V/s |
| Response time | Approximately 20 ms |
| Overload capacity | 200% for 10 s |
| Efficiency | Above 98% at full load |
| Control | RISC microprocessor |
| Display | 4 x 20 character LCD |
| Monitoring | Input voltage, output voltage, load percentage |
| Bypass | Manual mains-regulator selector |
| Cooling | Temperature-controlled fan |
| Protection class | IP20 |
| Operating temperature | 0°C to 40°C |
| Relative humidity | Below 90%, non-condensing |
| Altitude | Up to 3000 m |
| Noise | Below 50 dB at 1 m |
| Dimensions | 55 x 35 x 27 cm |
| Weight | 57 kg |
| Standards | ISO 9001, EN 50091-1, EN 50091-2 |
What’s in the Box
Stabilizer unit
User manual
Test certificate
Why Choose the NetPro-SVR 10 kVA
True RMS regulation survives generator supply and distorted mains waveforms.
No moving parts means no brush or servo motor maintenance schedule.
The bypass selector keeps the load powered during service work.
20 ms correction protects instrumentation from sags and swells.
A 10 kVA rating covers a small server room, lab bench or clinic load.
The LCD reports input, output and load readings without external meters.
