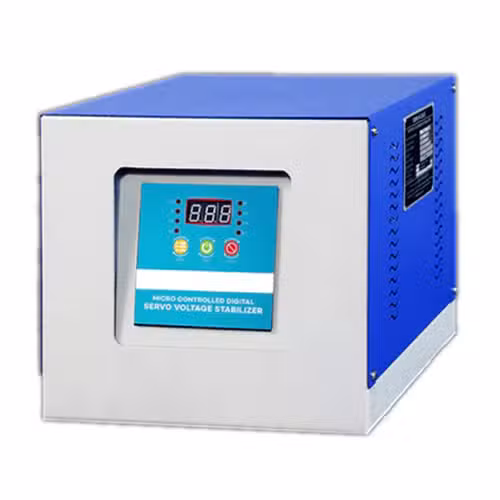

Servo-Matik 10 kVA Servo Voltage Stabilizer SM-REG-M 103-001 Single Phase

Single-Phase Servo Voltage Regulator

The Servo-Matik 10 kVA stabilizer corrects mains voltage for sensitive single-phase loads in offices, clinics, labs and light industrial plants. It uses a microprocessor-controlled servo motor to drive a toroidal variac. Output holds at 220V, 230V or 240V with 1% to 2% adjustable tolerance.

Input correction ranges cover 130-270V, 130-230V, 160-255V and 180-245V AC, with custom ranges available. Operating frequency spans 45 to 65 Hz. The correction speed reaches 90 to 150 V/s, and recovery time sits at 20 ms. True RMS measurement keeps regulation stable on distorted supplies.

The 10 kVA frame measures 55 x 35 x 27 cm and weighs 57 kg. Efficiency reaches 98% at full load. A manual bypass switch selects between mains and regulated output for maintenance. Overload handling allows 100-125% load for 10 minutes, 126-150% for 60 seconds, 151-199% for 10 seconds and above 200% for 3 seconds.

Protection covers output overload, output short circuit, output high and low voltage, and optional neutral-ground fault detection. Surge protection is built in. A dry contact interface reports normal operation and voltage alarms through NO, C and NC terminals. Optional RS485 supports remote monitoring over a network.

Installation requires a ventilated indoor position at least 30 cm from walls. The enclosure carries IP20 rating and operates from -10°C to 50°C at 0% to 95% non-condensing humidity. Altitude rating reaches 3000 m. Acoustic noise stays below 50 dB, which suits open-plan technical rooms.

Commissioning follows a defined sequence. Connect input and output cables to the marked terminals, confirm earth continuity and set the output voltage on the front panel. Switch the bypass to mains, energise the unit and verify the display readings. Then move the selector to regulator and monitor the output under load before handing over.

Periodic service includes cleaning the variac track, checking brush wear and tightening terminal screws. Replace the servo motor brushes when the correction speed drops. Keep the fan filter clear where a cooling fan is fitted. Record input and output voltages monthly to spot drift.

Key Features

• Microprocessor Servo Control
  The RISC controller drives an H-bridge MOSFET PWM motor stage for precise variac positioning.

• Wide Input Correction Range

  • 130-270V AC standard range
  • Alternate 130-230V, 160-255V and 180-245V ranges
  • Custom ranges available on request

• Adjustable Output Tolerance
  Regulation is selectable between 1% and 2% across the 220/230/240V settings.

• Fast Correction Speed
  The servo drive moves at 90 to 150 V/s with a 20 ms recovery time.

• Manual Bypass Switch
  A selector switch moves the load to raw mains for servicing without downtime.

• Multi-Stage Overload Curve

  • 100-125% load for 10 minutes
  • 126-150% load for 60 seconds
  • 151-199% load for 10 seconds
  • Above 200% load for 3 seconds

• Dry Contact Monitoring
  NO, C and NC contacts report normal operation and voltage alarm states.

• Optional RS485 Interface
  The communication option supports remote status monitoring over a network.

Specifications

What’s in the Box

• SERVO-REG 10 kVA stabilizer unit

• Operation and installation manual

• Terminal cover and fixing hardware

• Warranty document

Why Choose This Regulator

• The servo motor stage corrects deep sags and surges without switching transients.

• True RMS feedback keeps output steady on generators and weak rural supplies.

• The manual bypass switch allows maintenance without interrupting the load.

• Dry contacts integrate with building management and alarm panels.

• A 98% efficiency figure limits heat load in enclosed technical rooms.

• The 10 kVA rating covers a small office floor, lab bench or clinic circuit.
