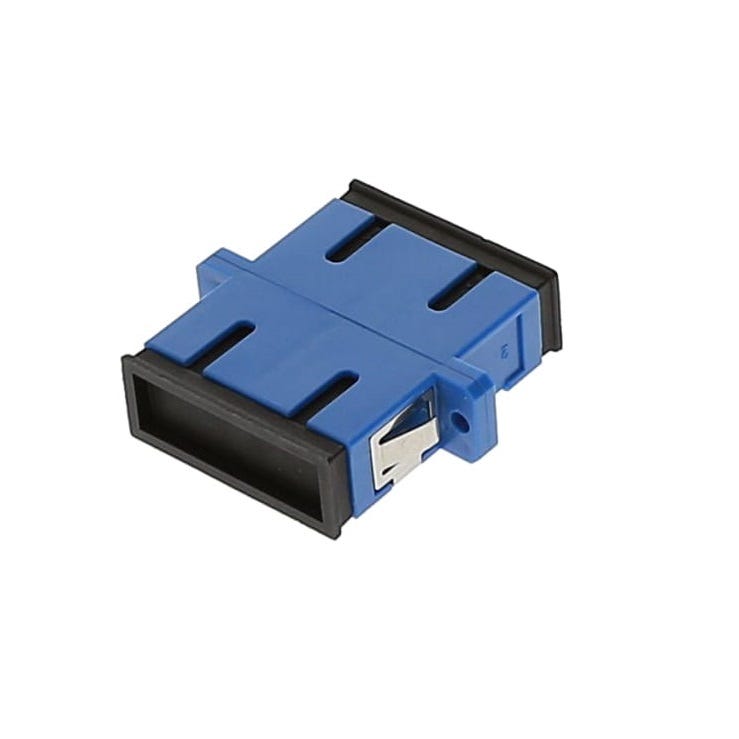

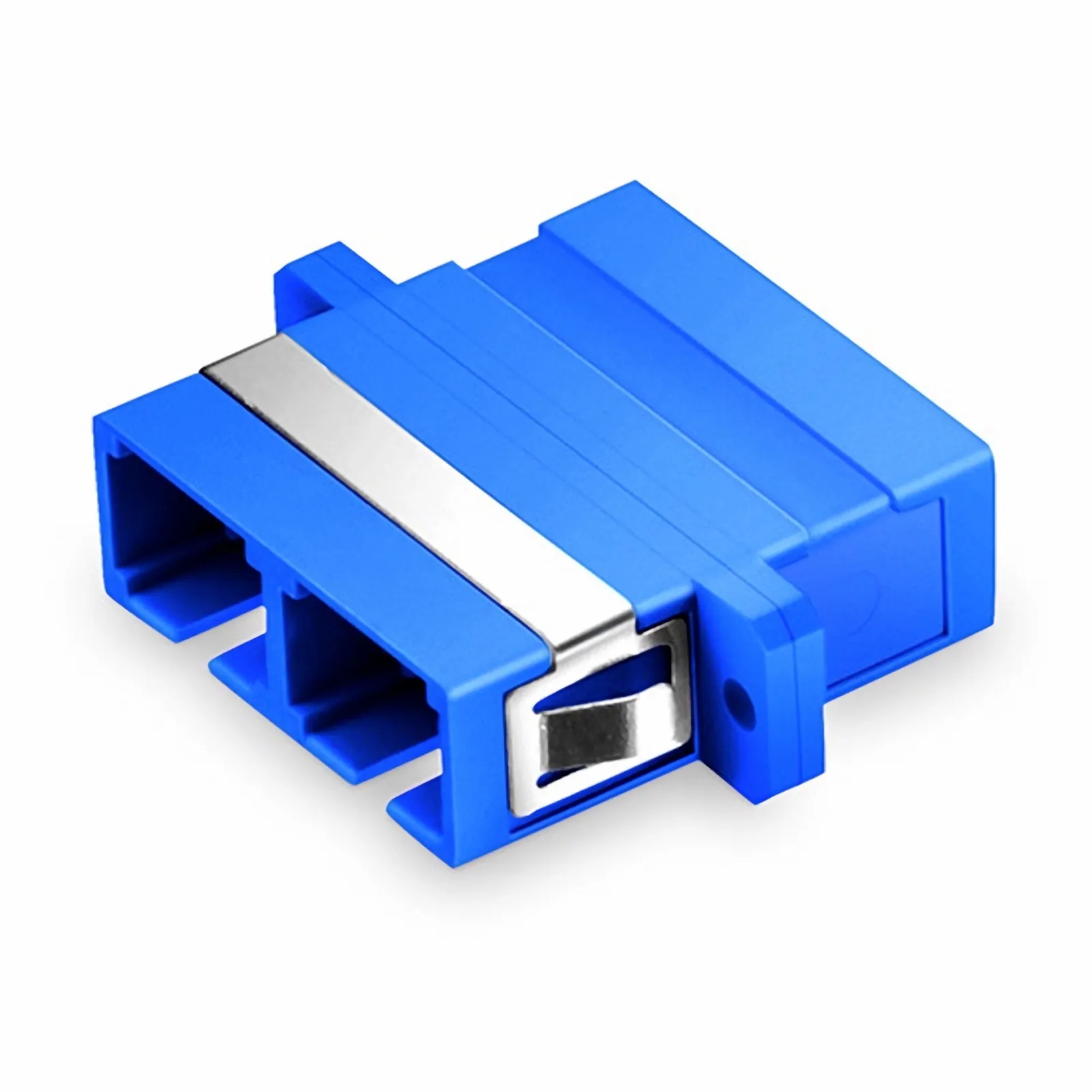

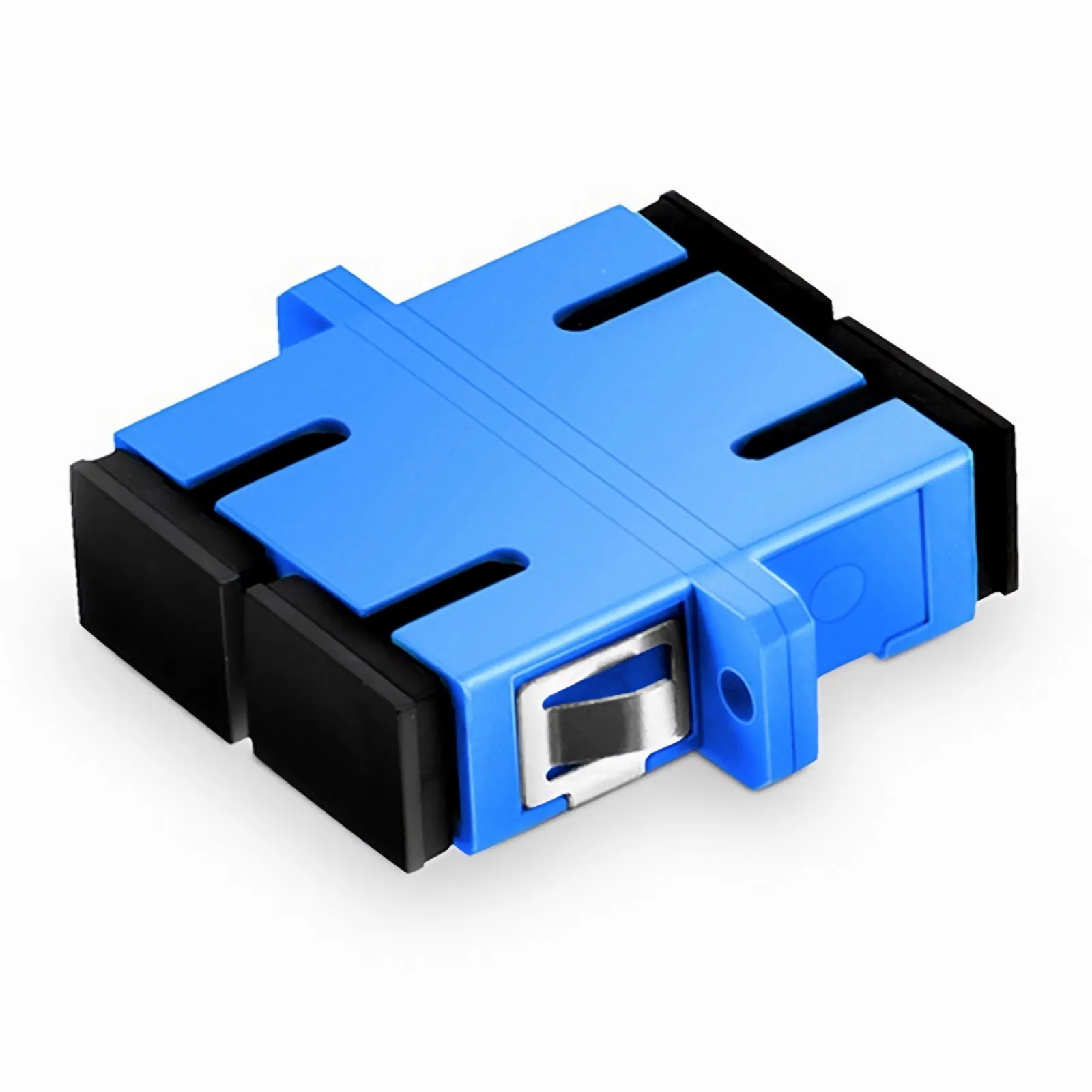

SC/UPC Duplex Fiber Optic Adapter, Single Mode OS2, Blue, Flange Mount
Limited Stock
SC/UPC Duplex Fiber Optic Adapter, Single Mode OS2, Blue, Flange Mount
| Interface | SC/UPC |
| Body style | Duplex, 2 ports |
| Fiber mode | Single mode OS2 |
| Colour | Blue |
| Mounting | Round flange with snap-in clips |
| Alignment sleeve | Zirconia ceramic |
| Insertion loss | 0.2 dB maximum |
| Return loss | 30 dB minimum |
| Mating cycles | 500 minimum |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Single Mode Fiber Coupling Module
The SC/UPC Duplex Adapter joins two SC/UPC single mode connectors through a precision zirconia ceramic sleeve. It fits patch panels, wall boxes and equipment faceplates. The duplex body aligns both fibers at once and keeps polarity consistent across the link.
The blue housing marks an OS2 single mode UPC interface. Insertion loss stays at or below 0.2 dB, with 0.1 dB typical on tested pairs. Return loss reaches 30 dB or better. The sleeve holds a 2.5 mm ferrule and centres each connector to within a few microns.
A round flange with two mounting holes locks the module to a panel cut-out. Stainless steel clips allow tool-less snap-in installation and release. The PBT body carries a UL94-V0 flammability rating and an IP20 dust rating. Each port ships with a protective dust cap.
Key Features
Duplex SC Interface
Two SC ports sit side by side in one module and accept UPC-polished single mode connectors.Ceramic Alignment Sleeve
- Zirconia ceramic sleeve holds a 2.5 mm ferrule
- Repeatability stays within 0.1 dB across matings
- Insertion loss holds at 0.2 dB maximum
Flange Mounting
The round flange takes two screws and seats against a standard panel cut-out.Snap-In Clips
Stainless steel clips let technicians seat or release the module without tools.OS2 Colour Coding
The blue body identifies a single mode UPC interface during patching and fault finding.Flame-Retardant Housing
The PBT shell meets UL94-V0 and resists deformation in warm rack enclosures.Dust Caps
Removable caps cover both ports in transit and during unpopulated panel stages.
Specifications
| Feature | Specification |
|---|---|
| Interface | SC/UPC |
| Body style | Duplex, 2 ports |
| Fiber mode | Single mode OS2 |
| Polish type | UPC |
| Colour | Blue |
| Mounting | Round flange with snap-in clips |
| Alignment sleeve | Zirconia ceramic |
| Ferrule diameter | 2.5 mm |
| Housing material | Glass-filled PBT |
| Flammability rating | UL94-V0 |
| Insertion loss | 0.2 dB maximum, 0.1 dB typical |
| Return loss | 30 dB minimum (UPC) |
| Repeatability | 0.1 dB or better |
| Mating cycles | 500 minimum |
| Ingress protection | IP20 |
| Operating temperature | -40 to +80 C |
| Storage temperature | -40 to +85 C |
| Standards | IEC 61754-4, TIA/EIA-604 FOCIS-3 |
| Compliance | RoHS |
What’s in the Box
Duplex SC/UPC single mode module, blue
Two protective dust caps
Why Choose the Blue Duplex Module
The ceramic sleeve keeps loss low across repeated patch changes in live racks.
Flange and clip mounting covers both fixed panels and quick-release enclosures.
Blue coding speeds up port identification during moves and audits.
The UL94-V0 shell suits enclosed cabinets where flame ratings are specified.
Standard FOCIS-3 dimensions fit existing 568 panel cut-outs without modification.
