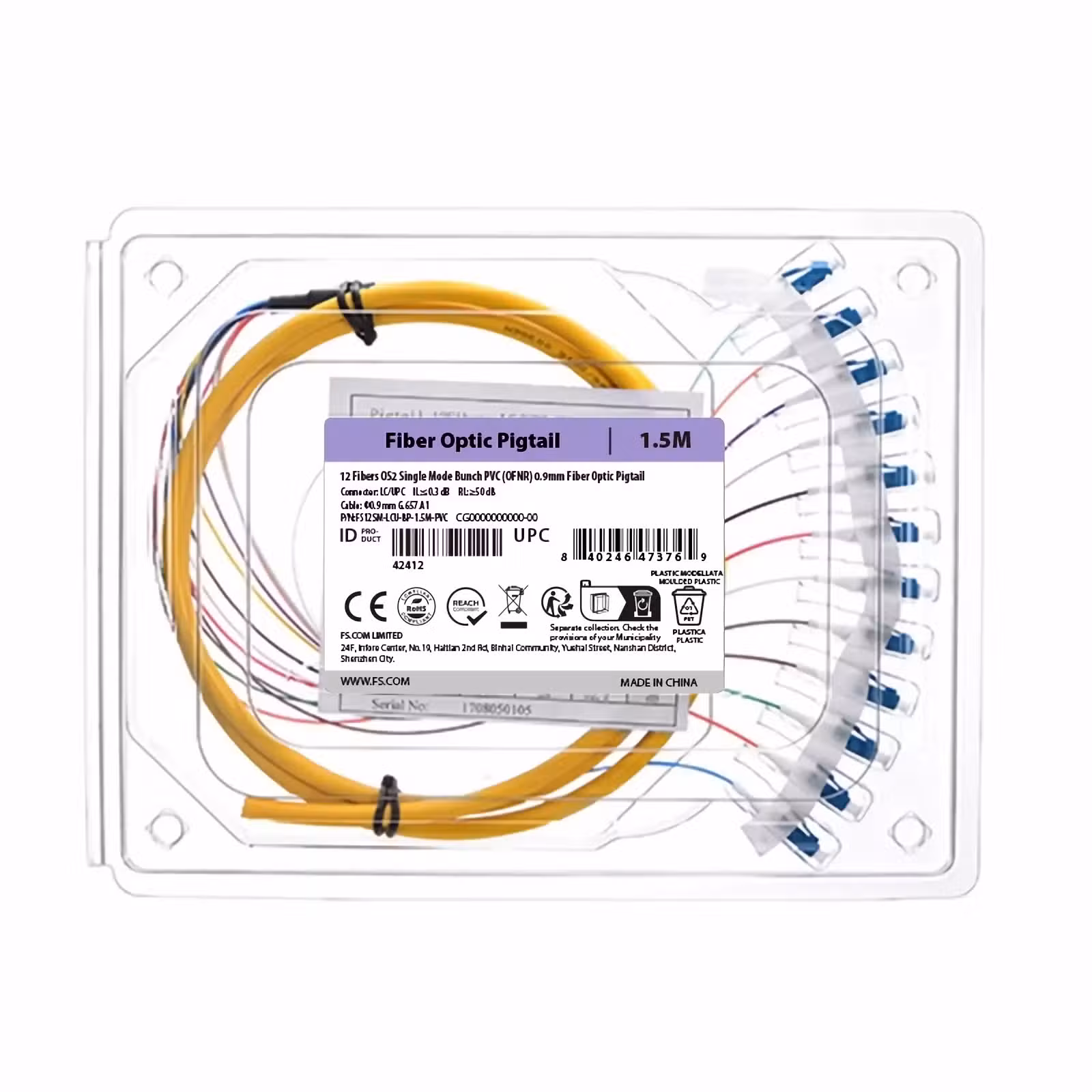

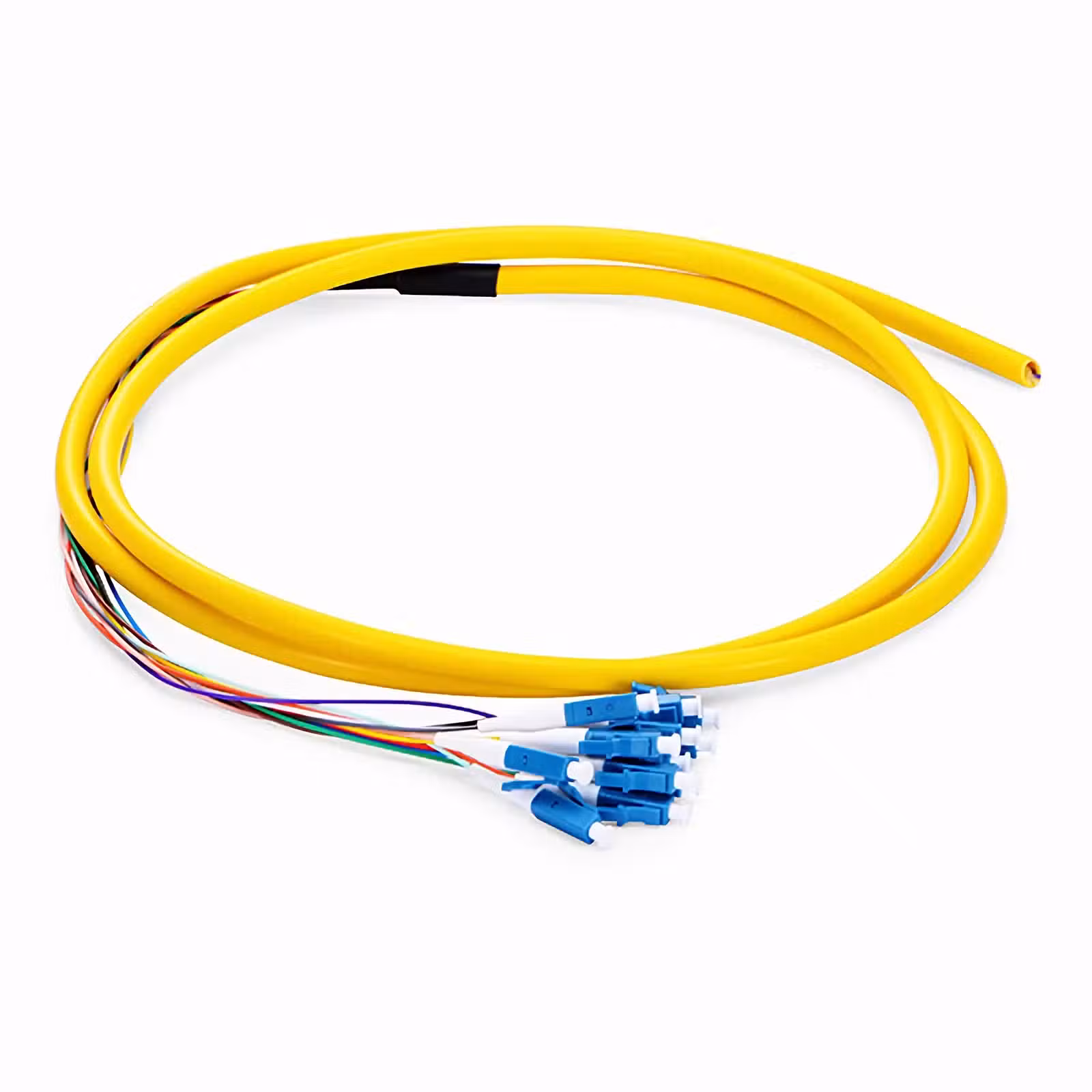

LC/UPC 1.5M Pigtail Single Mode Fiber Optic Cable 900µm
Limited Stock
LC/UPC 1.5M Pigtail Single Mode Fiber Optic Cable 900µm
| Product Type | Fiber optic pigtail |
| Connector | LC/UPC, one end |
| Fiber Mode | Single-mode G.657.A1 |
| Length | 1.5 m |
| Outer Diameter | 0.9 mm |
| Buffer Type | 900 µm tight buffer |
| Insertion Loss | 0.2 dB typical, 0.3 dB max |
| Return Loss | ≥50 dB |
| Jacket Colour | Yellow |
| Operating Temperature | -40°C to 70°C |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Factory-Terminated Single-Mode Fiber Assembly
The LC/UPC 1.5M Pigtail is a factory-terminated single-mode fiber assembly for splicing into optical distribution frames and splice closures. It carries one LC/UPC connector on a 1.5m tight-buffered cord. The yellow jacket follows single-mode colour coding for quick identification.
The cord uses G.657.A1 bend-insensitive fiber with a 900µm tight buffer and a 0.9mm outer diameter. A ceramic zirconia ferrule holds the LC/UPC endface. Typical insertion loss sits at 0.2dB with a 0.3dB maximum, and return loss reaches 50dB or better.
The assembly operates from -40°C to 70°C and tolerates a 15mm minimum dynamic bend radius. Installers fusion-splice the unterminated end onto incoming cable and plug the LC connector into a patch panel adapter. The 1.5m length gives enough slack for tray routing without excess coil.
Key Features
G.657.A1 Bend-Insensitive Fiber
The single-mode core resists loss under tight routing in trays, boxes and cabinets.LC/UPC Factory Connector
A ceramic zirconia ferrule delivers low insertion loss and reliable mating with standard LC ports.900µm Tight Buffer
- 0.9mm outer diameter suits standard splice trays and pigtail housings
- Easy-strip construction speeds field termination
1.5m Working Length
The cord reaches across patch panels and splice closures without surplus slack.Low Insertion and Return Loss
Typical insertion loss measures 0.2dB with return loss of 50dB or higher.Yellow Single-Mode Jacket
The colour code separates single-mode assemblies from multimode stock during installation.Wide Temperature Range
Storage and operating limits span -40°C to 70°C for indoor and sheltered outdoor cabinets.
Specifications
| Feature | Specification |
|---|---|
| Product Type | Fiber optic pigtail |
| Connector | LC/UPC, one end |
| Fiber Mode | Single-mode G.657.A1 |
| Length | 1.5 m |
| Outer Diameter | 0.9 mm |
| Buffer Type | 900 µm tight buffer |
| Ferrule Material | Ceramic zirconia |
| Insertion Loss | 0.2 dB typical, 0.3 dB max |
| Return Loss | ≥50 dB |
| Jacket Colour | Yellow |
| Minimum Bend Radius | 15 mm dynamic |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 70°C |
| Application | Splice trays, patch panels, FTTH drops |
What’s in the Box
LC/UPC single-mode pigtail, 1.5m
Why Choose This Pigtail
The bend-insensitive fiber holds signal through tight tray routes and compact cabinets.
Factory polishing removes field connectorisation work from the splice schedule.
The 900µm buffer fits standard splice protectors and pigtail holders.
Low insertion loss keeps link budgets predictable across distribution frames.
The 1.5m length covers most tray and panel spans without cutting.
Collins Barasa (verified owner) –
Spliced fine, no issues.
Ann Muthoni (verified owner) –
Good
Victor Omondi (verified owner) –
1.5m is right for the tray.
Lydia Chebet (verified owner) –
LC connector clipped in properly.
James Karanja (verified owner) –
900µm boot is tight but works.
Nancy Achieng (verified owner) –
Fine
Elijah Mutua (verified owner) –
Terminated cleanly, loss checked out on the meter.
