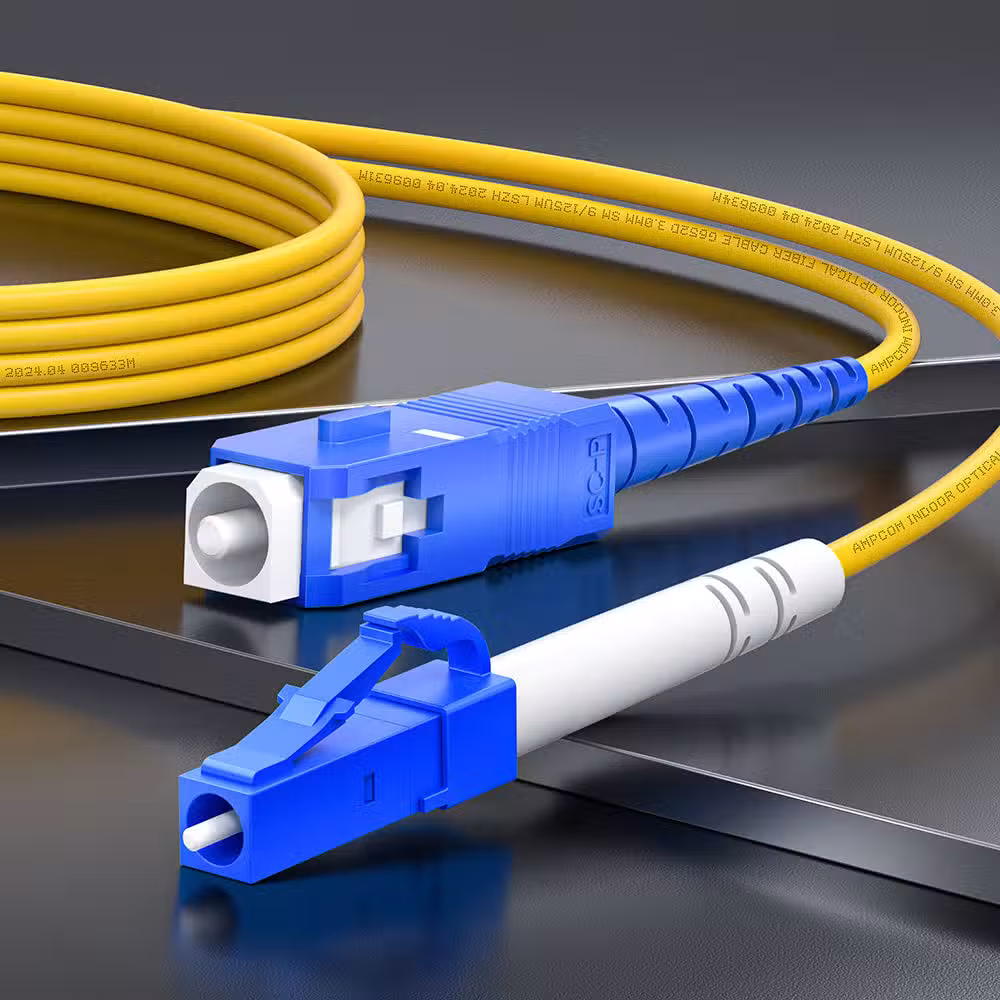

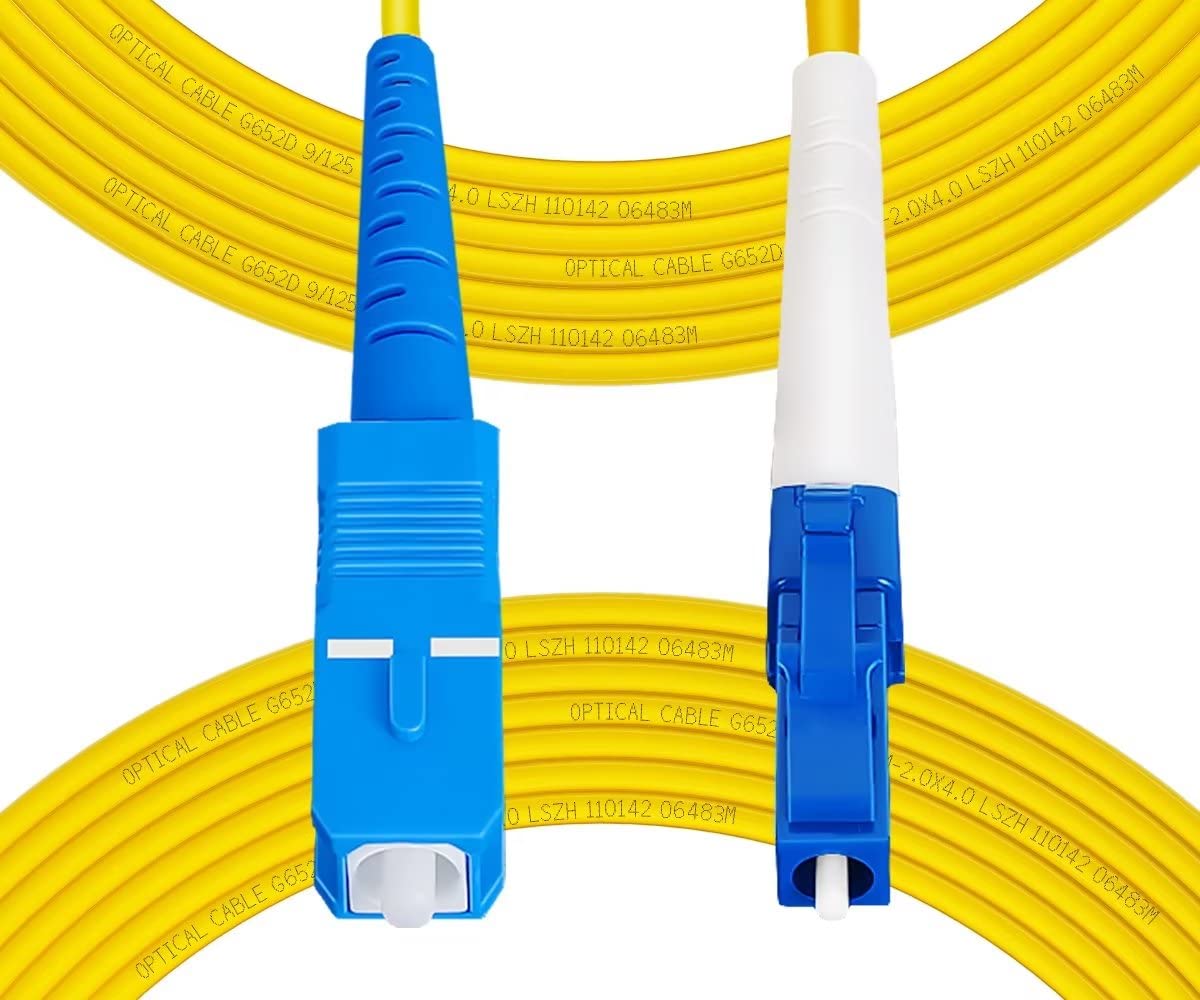

SC to LC UPC OS2 Fiber Patch Cord 5m, 9/125µm Simplex, LSZH Yellow
Limited Stock
SC to LC UPC OS2 Fiber Patch Cord 5m, 9/125µm Simplex, LSZH Yellow
| Connector A | SC/UPC male |
| Connector B | LC/UPC male |
| Fiber category | OS2 single-mode |
| Core / cladding | 9/125 µm |
| Fiber count | Simplex (1 fiber) |
| Length | 5 m |
| Jacket material | LSZH |
| Cable diameter | 2.0 mm |
| Insertion loss | ≤0.3 dB |
| Return loss | ≥55 dB |
| Wavelength range | 1260–1625 nm |
| Bend radius (loaded) | 10 mm |
| Operating temperature | -20°C to +60°C |
| Color | Yellow |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Single-Mode Fiber Interconnect for SC and LC Ports
The SC LC OS2 patch cord provides a 5-metre single-mode link between SC and LC UPC interfaces. It carries 1310 nm and 1550 nm signals across 9/125 µm fiber. The yellow LSZH jacket meets low-smoke halogen-free requirements for indoor runs.
Each end terminates in a ceramic ferrule with UPC polish. Insertion loss stays at or below 0.3 dB, and return loss reaches 55 dB or better. The 2.0 mm cable diameter fits standard fiber troughs, patch panels and SFP cages. Aramid yarn reinforces the jacket against pulling tension during installation.
The cord suits point-to-point links between switches, media converters and ODF panels. A 10 mm loaded bend radius tolerates tight routing behind rack rails. Operating temperature ranges from -20°C to +60°C. Each unit is tested for insertion loss before packing.
OS2 fiber supports 100G Ethernet and CWDM channels. The UPC connector polish meets IEC 61755-3-1 geometry. The cable passes ITU-T G.652.D attenuation limits. Bend-insensitive fiber resists micro-bending at corners.
The connector housing accepts standard SC and LC adapters. A duplex clip is not included, so the cord remains simplex. The 5-metre length covers inter-rack and cross-connect runs. Test data accompanies each unit for commissioning records.
Key Features
SC to LC UPC Termination
Connects SC patch panels and LC SFP transceivers without adapters.OS2 Single-Mode Fiber
9/125 µm core supports 1310 nm and 1550 nm transmission over 5 metres.Low-Loss Ceramic Ferrules
- Insertion loss ≤0.3 dB
- Return loss ≥55 dB
- UPC polish reduces back reflection
LSZH Flame-Retardant Jacket
Emits low smoke and no halogen compounds in fire conditions.Reinforced 2.0 mm Cable
Aramid yarn adds tensile strength for pulls through conduit.
Specifications
| Feature | Specification |
|---|---|
| Connector A | SC/UPC male |
| Connector B | LC/UPC male |
| Fiber category | OS2 single-mode |
| Core / cladding | 9/125 µm |
| Fiber count | Simplex (1 fiber) |
| Length | 5 m |
| Jacket material | LSZH |
| Cable diameter | 2.0 mm |
| Insertion loss | ≤0.3 dB |
| Return loss | ≥55 dB |
| Wavelength range | 1260–1625 nm |
| Bend radius (loaded) | 10 mm |
| Tensile strength | 70 N |
| Operating temperature | -20°C to +60°C |
| Storage temperature | -40°C to +70°C |
| Color | Yellow |
| Polish | UPC |
| Standards | ITU-T G.652.D, IEC 61755-3-1 |
What’s in the Box
SC to LC UPC OS2 fiber patch cord, 5m
Insertion loss test report
Why Choose This OS2 Jumper
The UPC-polished LC and SC ends keep return loss above 55 dB, which protects signal quality on CWDM and 100G links.
The 5-metre length covers rack-to-rack runs without excess slack.
LSZH jacketing suits enclosed rooms where halogen-free cable is specified.
Each cord ships with an insertion loss test report for acceptance records.
Aramid-reinforced construction resists pulling tension during conduit pulls.
