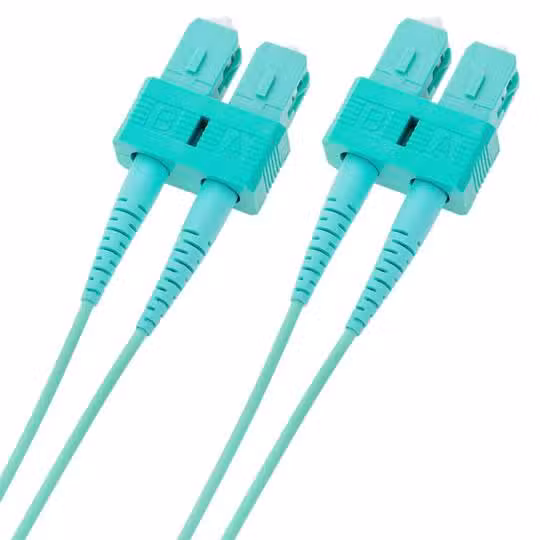

SC-SC APC OM3 Patch Cord 3 m Duplex 50/125 µm Multimode Fiber, LSZH
Limited Stock
SC-SC APC OM3 Patch Cord 3 m Duplex 50/125 µm Multimode Fiber, LSZH
| Connector type | SC/APC to SC/APC, duplex |
| Fiber category | OM3 multimode, 50/125 µm |
| Assembly length | 3 m |
| Insertion loss | ≤0.3 dB per mated pair |
| Return loss | ≥35 dB (APC) |
| Jacket | LSZH, aqua |
| Cable diameter | 2.0 mm |
| Operating temperature | -20 °C to 70 °C |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Duplex Multimode Jumper for 10G Links
The SC-SC APC OM3 patch cord is a 3 m duplex assembly with angled-physical-contact connectors at both ends. Two 50/125 µm OM3 fibers run inside a 2.0 mm zipcord jacket. APC end faces hold return loss at 35 dB or better and keep insertion loss at or below 0.3 dB per mated pair.
OM3 glass supports 10G Ethernet to 300 m and 40G to 100 m at 850 nm. The 3 m length suits rack-to-rack links, cabinet-to-cabinet patching and top-of-rack to server connections. Zirconia ceramic ferrules maintain alignment through repeated mating cycles.
The LSZH jacket limits smoke and halogen output in enclosed rooms. Aqua colouring identifies OM3 multimode fiber, and the 2.0 mm diameter fits high-density trays. Bend radius holds at 10 mm under load, and operating temperature spans -20 °C to 70 °C for indoor cabinets.
Key Features
SC/APC Angled Connectors
The 8-degree angled ferrule polish reduces back reflection in high-speed multimode links.Duplex Zipcord Construction
- Two fibers share one jacket for TX/RX pairs
- Separates at the connectors for polarity control
- Fits SC duplex adapters and panels
OM3 50/125 µm Fiber
Laser-optimized glass carries 10G to 300 m and 40G to 100 m at 850 nm.LSZH Aqua Jacket
Low-smoke zero-halogen compound suits enclosed cabinets and marks OM3 fiber.3 Metre Assembly Length
The run bridges adjacent racks and cabinets without intermediate couplings.Ceramic Ferrules
Zirconia ferrules hold alignment through 1000 mating cycles with minimal loss change.
Specifications
| Feature | Specification |
|---|---|
| Connector type | SC/APC to SC/APC, duplex |
| Polish type | APC (8° angled) |
| Fiber category | OM3 multimode |
| Core / cladding | 50/125 µm |
| Fiber count | 2 (duplex zipcord) |
| Assembly length | 3 m |
| Insertion loss | ≤0.3 dB per mated pair |
| Return loss | ≥35 dB (APC) |
| Wavelengths | 850 nm, 1300 nm |
| Attenuation at 850 nm | ≤3.0 dB/km |
| Attenuation at 1300 nm | ≤1.0 dB/km |
| Cable diameter | 2.0 mm |
| Jacket material | LSZH |
| Jacket colour | Aqua |
| Ferrule material | Zirconia ceramic |
| Bend radius, loaded | 10 mm |
| Mating durability | 1000 cycles |
| Operating temperature | -20 °C to 70 °C |
| Standards | IEC 61754-4, TIA-568.3-D, RoHS |
| Application | 10GBASE-SR, 40GBASE-SR4, 100GBASE-SR10 |
What’s in the Box
3 m duplex SC/APC to SC/APC OM3 patch cord
Dust caps on both connector ends
Why Choose This Multimode Lead
APC connectors reduce back reflection where 10G and 40G optics demand low return loss.
OM3 glass supports 300 m at 10G, covering most intra-building backbone runs.
The 3 m length reaches adjacent racks without excess slack in cable trays.
LSZH jacket suits enclosed cabinets where PVC smoke would be a hazard.
Aqua sheath lets technicians identify OM3 ports without reading labels.
