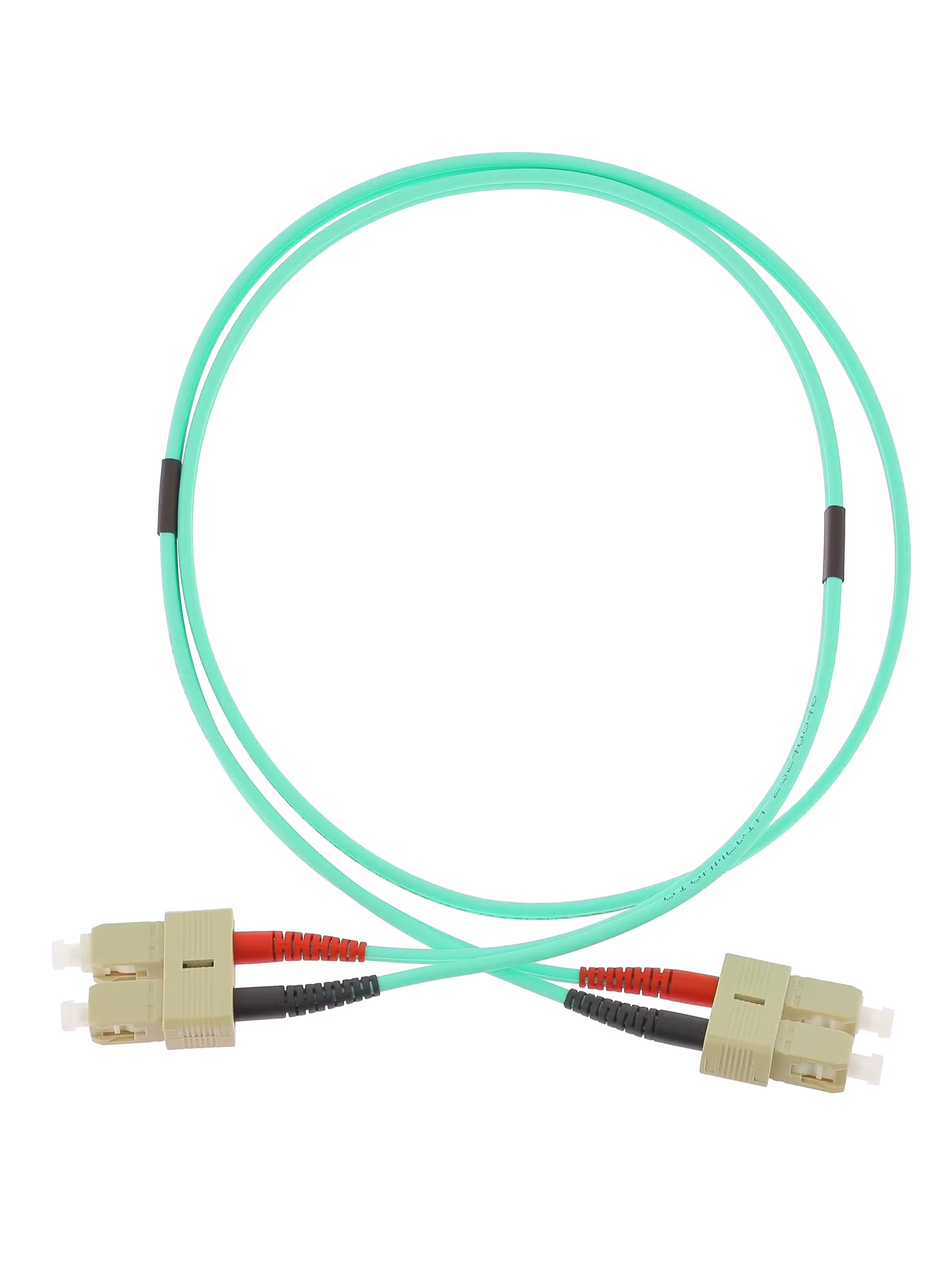

OM3 SC APC Patch Cord 5m Duplex Multimode 50/125µm LSZH Aqua

Duplex Multimode Fiber Assembly

The OM3 SC APC patch cord terminates two angled SC connectors at each end on a 5-metre duplex cable. It carries 850 nm and 1300 nm signals between switches, servers and patch panels. Factory polishing and testing remove field termination work from the rack build.

The 50/125 µm OM3 glass delivers 2000 MHz·km effective modal bandwidth at 850 nm. Overfilled launch bandwidth reaches 1500 MHz·km at 850 nm and 500 MHz·km at 1300 nm. Attenuation stays at or below 3.0 dB/km at 850 nm and 1.0 dB/km at 1300 nm.

SC APC ferrules use zirconia ceramic and an 8-degree angle polish. Multimode APC connectors typically hold return loss at 35 dB or better. Maximum insertion loss per mated pair is 0.3 dB, and durability reaches 500 mating cycles with a 0.2 dB change limit. The aqua LSZH jacket identifies OM3 fiber and limits smoke output in enclosed cabinets.

The cord operates from -20°C to 70°C. Minimum static bend radius is 10 mm and dynamic bend radius is 20 mm. Aramid yarn provides tensile reinforcement, and the assembly meets IEC 61300-2-4 pull-force requirements. Connector housings are colour-coded for multimode identification.

Key Features

• SC APC Termination Both Ends
  Two angled-polish SC connectors per end seat into SC adapter panels and multimode ports.

• OM3 50/125 µm Fiber
  The laser-optimised core supports 10GBASE-SR links to 300 m at 850 nm.

• Duplex Zipcord Construction

  • Two 2.0 mm round legs joined as a zipcord
  • Polarity maintained for transmit and receive pairs
  • Aqua jacket identifies OM3 multimode grade

• Low Insertion Loss
  Each mated pair stays at or below 0.3 dB for predictable link budgets.

• APC Return Loss Performance
  The angled ferrule polish holds multimode return loss at 35 dB or better.

• LSZH Jacket
  The low-smoke zero-halogen compound suits data halls and air-handling spaces.

• Bend-Tolerant Routing
  A 10 mm static bend radius fits tight cable managers and shallow cabinets.

• 500-Mating Durability
  Ceramic ferrules hold alignment through repeated patching with a 0.2 dB change limit.

Specifications

What’s in the Box

• 5 m duplex SC APC to SC APC OM3 multimode patch cord

• Dust caps on all connectors

Why Choose This Patch Cord

• Pre-terminated angled connectors cut termination labour on short multimode backbone runs.

• The duplex zipcord construction keeps transmit and receive pairs together through cable managers.

• OM3 bandwidth supports 10G Ethernet to 300 metres across the full assembly length.

• LSZH jacketing meets indoor safety requirements in occupied data rooms.

• The 10 mm static bend radius tolerates tight routing inside high-density panels.

• Ceramic ferrules and a 500-cycle rating support repeated moves and changes during commissioning.
