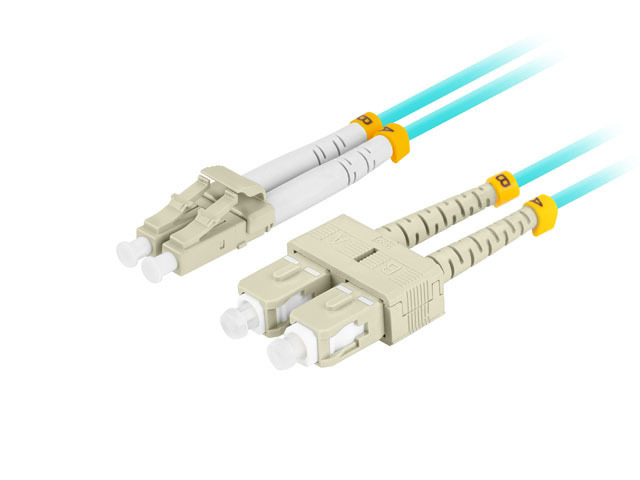

SC-LC OM3 Patch Cord 3m Duplex 50/125 UPC Aqua LSZH
Limited Stock
SC-LC OM3 Patch Cord 3m Duplex 50/125 UPC Aqua LSZH
| Connectors | SC/UPC to LC/UPC, duplex |
| Fiber category | OM3 multimode, 50/125 µm |
| Length | 3 m |
| Insertion loss | ≤ 0.3 dB per mated pair |
| Return loss | ≥ 30 dB |
| Jacket | LSZH, aqua, 2.0 mm |
| Operating temperature | -20 °C to 70 °C |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Aqua Multimode Duplex Jumper for 10G Links
The SC-LC OM3 3m patch cord is a 3-metre duplex multimode assembly for 10G and 40G links inside racks and across short runs. Two connectors sit at each end on 50/125 µm OM3 fiber. Aqua LSZH jacketing identifies the multimode grade and limits smoke output.
SC/UPC and LC/UPC ferrules hold insertion loss at 0.3 dB or below per mated pair. Return loss measures 30 dB minimum, which keeps back reflection inside multimode link budgets. OM3 bandwidth reaches 2000 MHz·km at 850 nm, so 10GBASE-SR runs to 300 m and 40GBASE-SR4 or 100GBASE-SR10 reach 100 m.
The 2.0 mm jacket bends to 10 times the outer diameter under static load and 20 times while moving. Each connector survives more than 500 mating cycles. Operating temperature spans -20 °C to 70 °C, and the assembly meets IEC 61754-20 and TIA-604-10-A dimensions.
Key Features
OM3 50/125 µm Fiber
Laser-optimised core delivers 2000 MHz·km effective modal bandwidth at 850 nm for 10G and 40G channels.SC/UPC to LC/UPC Duplex Termination
- 2.5 mm ceramic ferrule on the SC end
- 1.25 mm ceramic ferrule on the LC end
- Duplex clip maintains A/B polarity through the run
Low Insertion Loss
Each mated pair measures 0.3 dB maximum under IEC 61300-3-4 test methods.Aqua LSZH Jacket
Low smoke zero halogen compound meets IEC 60754 and IEC 61034 for occupied equipment rooms.Bend-Tolerant Routing
Static bend radius of 10 times the outer diameter clears dense trays and shallow cable managers.Field-Proven Durability
Connectors hold stable loss across more than 500 mating cycles in patching duty.
Specifications
| Feature | Specification |
|---|---|
| Connector A | SC/UPC duplex, beige boot |
| Connector B | LC/UPC duplex, beige boot |
| Polish type | UPC to UPC |
| Fiber category | OM3 multimode |
| Core / cladding | 50/125 µm |
| Fiber count | 2 (duplex) |
| Length | 3 m |
| Insertion loss | ≤ 0.3 dB per mated pair |
| Return loss | ≥ 30 dB |
| Wavelengths | 850 nm and 1300 nm |
| Bandwidth at 850 nm | ≥ 2000 MHz·km (EMB) |
| Jacket material | LSZH |
| Jacket colour | Aqua |
| Cable diameter | 2.0 mm |
| Bend radius, static | 10x outer diameter |
| Bend radius, dynamic | 20x outer diameter |
| Mating durability | > 500 cycles |
| Operating temperature | -20 °C to 70 °C |
| Storage temperature | -40 °C to 85 °C |
| Flammability | IEC 60332-1, IEC 60754, IEC 61034 |
| Connector standard | IEC 61754-20, TIA-604-10-A |
| Test standard | IEC 61300-3-4, IEC 61300-3-6 |
| Compliance | RoHS |
What’s in the Box
3 m SC/UPC to LC/UPC OM3 duplex fiber assembly
Dust caps on both connector ends
Why Choose This Multimode Lead
Supports 10GBASE-SR to 300 m and 40G or 100G SR channels to 100 m on OM3 plant.
Mixed SC and LC terminations bridge legacy panels to SFP+ transceiver ports.
Aqua sheath colour separates multimode runs from single mode and copper cabling.
Low smoke jacket material suits risers, comms rooms and occupied floor distributors.
Short bend radius allows routing behind loaded 1U patch fields and cable managers.
Loss figures fit link budget planning against IEC 61300 test limits.
