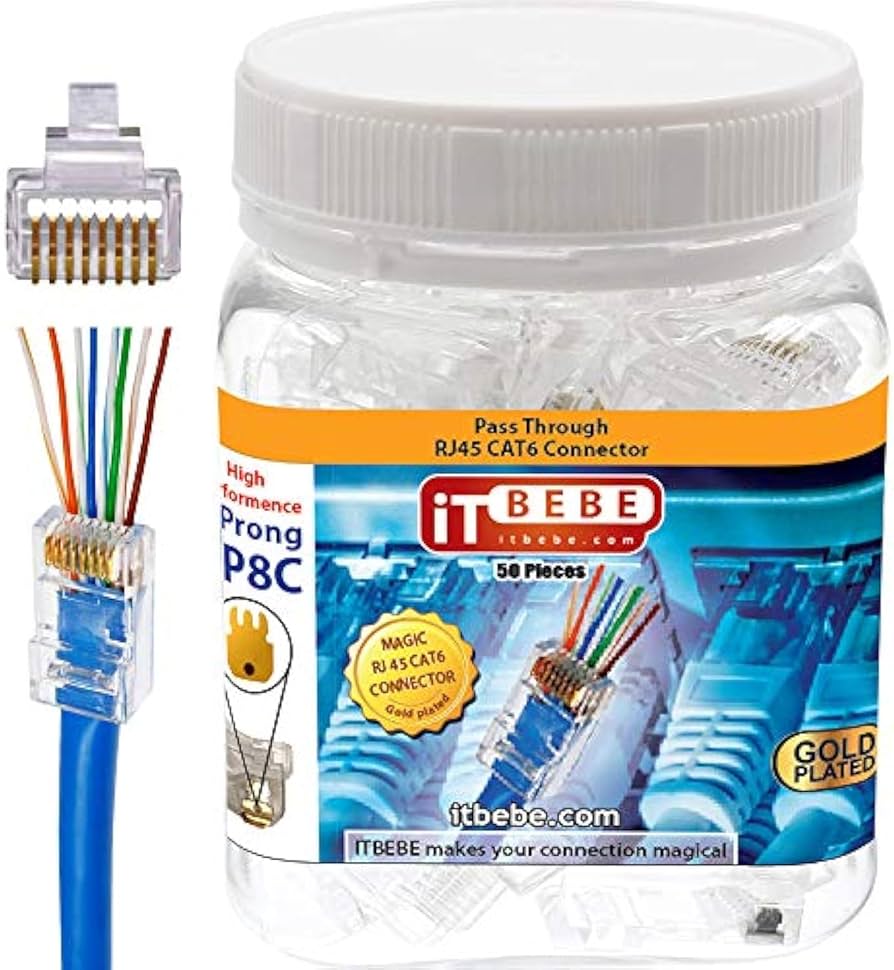

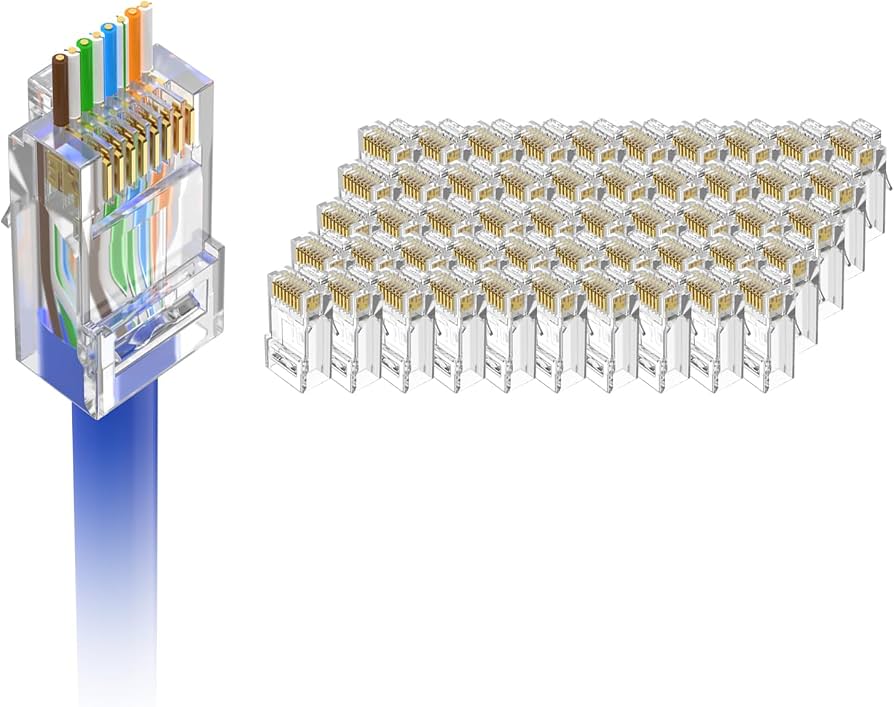

RJ45 CAT6 Connector 8P8C UTP Modular Plug 50-Micron Gold Plated 24-26 AWG

Unshielded Twisted-Pair Modular Plug

The RJ45 CAT6 connector terminates solid or stranded copper cable in unshielded twisted-pair runs. It uses the standard 8-position, 8-contact interface with a three-prong terminal that grips solid conductors. The plug accepts 24 to 26 AWG wire and fits round cable jackets.

Contacts carry a 50 micro-inch gold plating over a nickel underplate. The polycarbonate housing meets UL94V-0 flammability limits and seats in standard keystone jacks and patch panels. A round cable entry with a strain-relief boot holds the jacket in place during pulls.

The plug is rated for 1000 mating cycles and operates from -40°C to 70°C. It supports T568A and T568B wiring schemes. Each connector ships individually and crimps with a standard 8P8C tool. Insertion loss and near-end crosstalk stay within CAT6 limits when the installer follows the correct pin-out.

Gold plating thickness is measured in micro-inches, and 50 micro-inches resists wear across repeated re-terminations. The three-prong contact geometry pierces jacket residue without severing the copper core. Installers should trim the conductor fan-out to under 13mm to protect crosstalk margins. The plug mates with shielded and unshielded keystone modules, so one part covers both trunk and patch positions.

Key Features

• 8P8C Interface
  The plug mates with any standard RJ45 jack, patch panel or keystone module.

• 50-Micron Gold Contacts
  Plated contacts hold low resistance across 1000 insertion and withdrawal cycles.

• Three-Prong Terminal
  The terminal design grips solid copper conductors without cutting through the wire.

• 24-26 AWG Compatibility

  • Accepts solid wire from 0.40 to 0.51 mm diameter
  • Accepts stranded wire from 0.46 to 0.61 mm diameter
  • Fits round cable jackets with a standard strain-relief boot

• UL94V-0 Polycarbonate Housing
  The housing resists flame spread and holds contact alignment during crimping.

• Round Cable Entry
  The circular opening centres the jacket and reduces stress on the conductor fan-out.

• T568A and T568B Wiring
  The plug accepts both colour-code schemes used in structured cabling.

• CAT6 Channel Performance
  Terminated links meet CAT6 insertion loss and crosstalk limits at the rated gauge.

Specifications

What’s in the Box

• 8P8C UTP modular plug

Why Choose This Modular Plug

• The 50-micron gold finish reduces re-termination faults on high-cycle ports.

• The three-prong terminal suits solid copper cable used in permanent links.

• Round cable entry and strain-relief boot support structured cabling pulls.

• The polycarbonate housing survives crimping pressure without cracking.

• 1000 mating cycles cover moves, adds and changes in shared network cabinets.

• The 8P8C footprint fits standard crimpers, testers and patch-panel ports.
