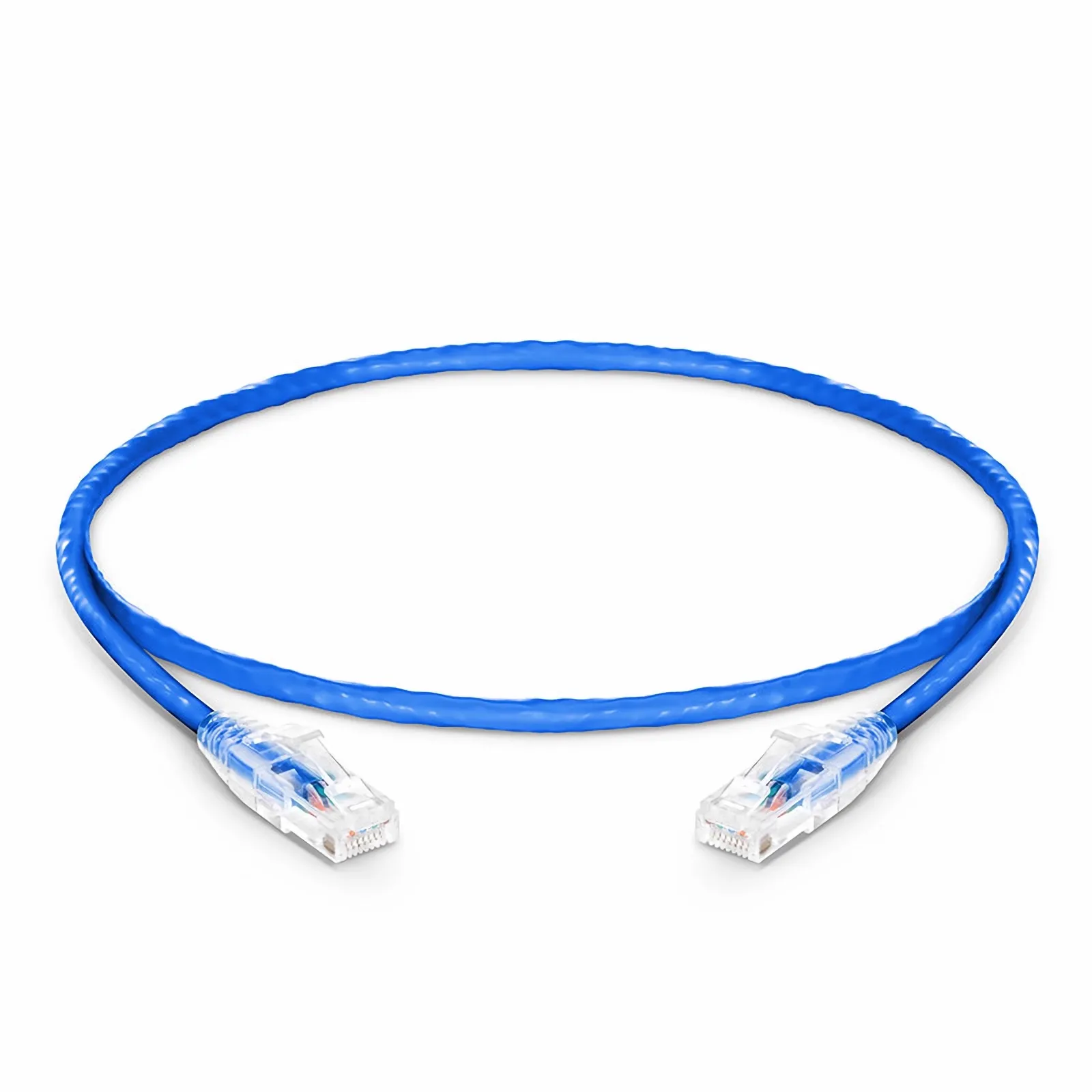

CAT6 3M Patchcord – UTP 24 AWG Stranded Copper, LSZH Jacket, RJ45 Male to Male

Cat6 UTP Patch Lead for Gigabit and 10G Links

The CAT6 3M patchcord connects switches, patch panels and servers over a 3-metre run. It uses 24 AWG stranded copper conductors in an unshielded twisted pair construction. RJ45 male plugs terminate both ends for direct equipment connection.

The cable supports up to 250 MHz and carries 10GBASE-T traffic to 55 metres. Stranded copper conductors resist breakage during repeated bending in patch panels. The LSZH jacket limits smoke and halogen release in enclosed cabinets. Straight-through wiring follows T568B pinout as standard.

Each plug carries 50-micron gold-plated contacts for stable signal transfer. The moulded strain relief boot protects the latch and conductors at both ends. A snagless boot design prevents the latch from catching on adjacent cables during moves and changes. The 3-metre length reaches between adjacent racks and across a desk surface.

Electrical performance meets ANSI/TIA-568.2-D Category 6 requirements. The assembly supports PoE, PoE+ and PoE++ up to 100W for powered devices. Operating temperature spans -10°C to 60°C for indoor installations. The cable diameter measures 5.8 mm and fits standard cable managers and patch panel openings.

Key Features

• Cat6 250 MHz Performance
  The cable meets Category 6 requirements for 1G, 2.5G, 5G and 10G Ethernet links.

• 24 AWG Stranded Copper Conductors
  Stranded wire resists fatigue from repeated bending in high-density patch environments.

• LSZH Jacket Construction

  • Low smoke zero halogen compound for enclosed racks
  • Reduced toxic fume emission in fire conditions
  • Flame retardant to IEC 60332-1
  • PVC-free formulation

• 50-Micron Gold-Plated Contacts
  Gold plating over the plug contacts limits oxidation and holds signal integrity through repeated mating.

• Snagless Moulded Boot
  The boot covers the latch to prevent snagging during cable pulls and rack maintenance.

• PoE and PoE++ Support
  The conductor gauge and connector rating carry IEEE 802.3bt Type 4 power up to 100W.

• 3-Metre Reach
  The length links adjacent cabinets, patch panels and desk equipment without excess slack.

Specifications

What’s in the Box

• 1x Cat6 UTP patch cord, 3 m, grey LSZH

Why Choose This Patch Lead

• Stranded conductors survive repeated patching in moves, adds and changes.

• The LSZH jacket suits data centres and cabinets with fire safety specifications.

• Gold-plated contacts maintain low resistance across repeated mating cycles.

• The snagless boot protects the latch during dense cable routing.

• 100W PoE++ support covers access points, cameras and VoIP handsets.

• 3-metre span reaches across racks without excess cable to manage.
