RJ45 CAT 5 Connector – 8P8C Modular Plug, 50-Micron Gold Plated Contacts, T568A/B

8P8C Modular Plug for Cat5 Terminations

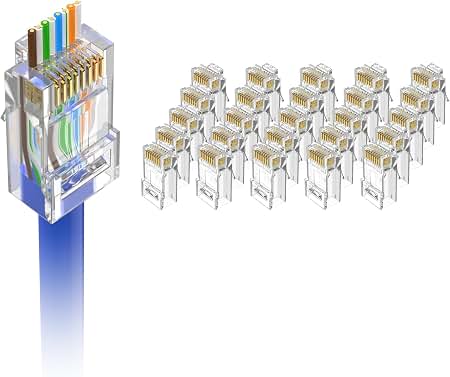

The RJ45 CAT 5 connector is an 8-position, 8-contact modular plug for terminating Cat5 and Cat5e twisted pair cable. Contacts carry 50 microns of gold plating over nickel for low contact resistance and oxidation resistance. The clear polycarbonate body meets UL94 V-0 flame rating.

Three-prong contacts straddle each conductor to hold strand alignment after crimping. The plug accepts 24 to 26 AWG solid or stranded wire, with a maximum conductor insulation diameter of 1.016 mm. Maximum cable jacket diameter is 6.09 mm for the standard boot entry. Wiring follows T568A or T568B pinouts.

Electrical performance supports 1000BASE-T links on Cat5e cable. Initial contact resistance stays at or below 20 mΩ, and insulation resistance reaches 500 MΩ or better. Insertion loss measures 0.4 dB maximum, and return loss holds at 20 dB minimum. Operating temperature spans -40°C to 85°C for indoor and sheltered outdoor runs.

Termination needs a standard 8P8C crimp tool and a cable stripper. Technicians strip the jacket, order the pairs, flush-cut the conductors and seat the plug before crimping. Each plug holds rated insertion life through repeated patching in patch panels and outlet boxes.

Key Features

• 50-Micron Gold Plated Contacts
  The gold layer over nickel limits corrosion and keeps contact resistance at or below 20 mΩ.

• Three-Prong Contact Design
  Each contact straddles the conductor to hold position through crimp pressure and cable movement.

• Dual Wiring Standard Support

  • T568A pinout for green-pair-first installations
  • T568B pinout for orange-pair-first installations
  • Both schemes carry identical electrical performance
  • Pin numbers moulded for orientation

• UL94 V-0 Polycarbonate Housing
  The clear body resists impact and self-extinguishes under flame test conditions.

• 24 to 26 AWG Conductor Range
  The IDC slots accept solid or stranded wire within the published insulation diameter limit.

• 1000BASE-T Support
  The connector meets the electrical requirements for Gigabit Ethernet over Cat5e cabling.

• Wide Thermal Range
  Operation from -40°C to 85°C covers indoor cabinets and sheltered outdoor enclosures.

Specifications

What’s in the Box

• RJ45 Cat5 modular plugs, pack quantity as ordered

Why Choose This Modular Plug

• Gold plated contacts hold a stable link through humidity and temperature swings.

• Three-prong contacts reduce strand misalignment during hand crimping.

• Clear housing lets technicians inspect conductor seating before the crimp closes.

• Dual T568A and T568B support matches either existing patch panel convention.

• UL94 V-0 polycarbonate suits racks and cabinets with fire safety requirements.

• The 20 mΩ contact resistance supports PoE current without measurable heating.
