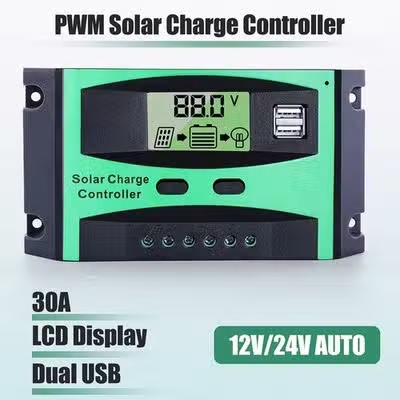

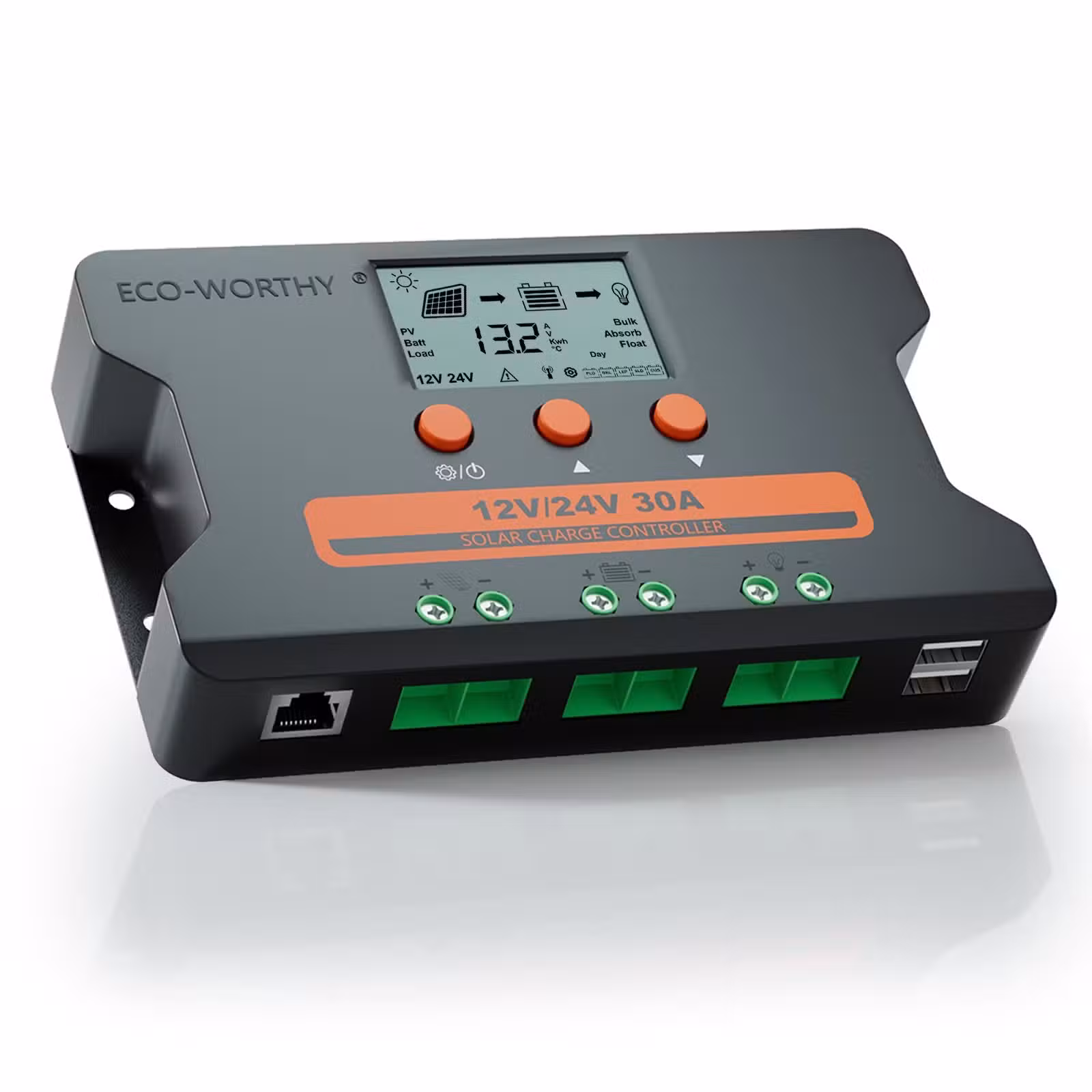

PWM 30A 12V/24V Solar Charge Controller with LCD Display and Dual USB

Solar Regulation for Off-Grid Battery Banks

The PWM 30A charge controller regulates solar panel output into a 12V or 24V lead-acid battery bank. It handles up to 30A of charge current and detects system voltage automatically. The unit suits off-grid lighting, pumping and small PV installations.

Pulse-width modulation holds the battery at the set float and boost points. The controller manages sealed, gel and flooded profiles through a selectable charging program. A backlit LCD shows battery voltage, charge current and load status. Two 5V USB ports deliver up to 2A for small devices.

Protection covers reverse polarity, overcurrent, short circuit and overload. Low-voltage disconnect cuts the load at 10.5V on 12V systems and 21V on 24V systems. The plastic housing tolerates ambient temperatures from -20°C to 60°C. Mount the unit on a vertical surface with 100mm clearance for airflow.

Key Features

• Automatic 12V/24V Detection
  The controller senses the battery bank voltage at power-up and sets the charge profile without a manual switch.

• 30A Charge and Load Rating

  • Handles up to 30A continuous charge current
  • Load output rated at 30A for direct DC equipment
  • Supports panel arrays up to 450W at 12V and 900W at 24V

• PWM Charging Algorithm
  Pulse-width modulation tapers current as the battery approaches full charge.

• Backlit LCD Display
  The screen shows battery voltage, charge current, load current and fault codes.

• Dual 5V USB Outputs
  Two USB ports supply up to 2A total for phones, tablets and sensors.

• Battery Type Selection
  Sealed, gel and flooded lead-acid profiles are selectable from the front panel.

• Low-Voltage Disconnect
  The load output disconnects at 10.5V (12V) or 21V (24V) and reconnects at 12.2V or 24.4V.

• Temperature Compensation
  Charge voltage adjusts at -4mV per cell per °C to protect the battery across seasons.

• Full Electronic Protection
  Reverse polarity, short circuit, overload and overcurrent faults reset automatically.

• Screw Terminals for 16mm² Cable
  The terminal block accepts cable up to 7 AWG for low-resistance connections.

Specifications

What’s in the Box

• PWM 30A solar charge controller

• Mounting screws

• User manual

Why Choose This Solar Regulator

• Automatic voltage detection removes a configuration step when commissioning a bank.

• The 30A rating supports arrays up to 450W on 12V systems and 900W on 24V systems.

• Three-stage charging tapers current and reduces gassing on sealed batteries.

• The LCD reports faults on screen, which shortens field diagnosis time.

• Dual USB ports power small loads without a separate DC-DC converter.

• 16mm² terminals keep voltage drop low on long panel runs.

• Electronic protections reset automatically after a fault clears.
