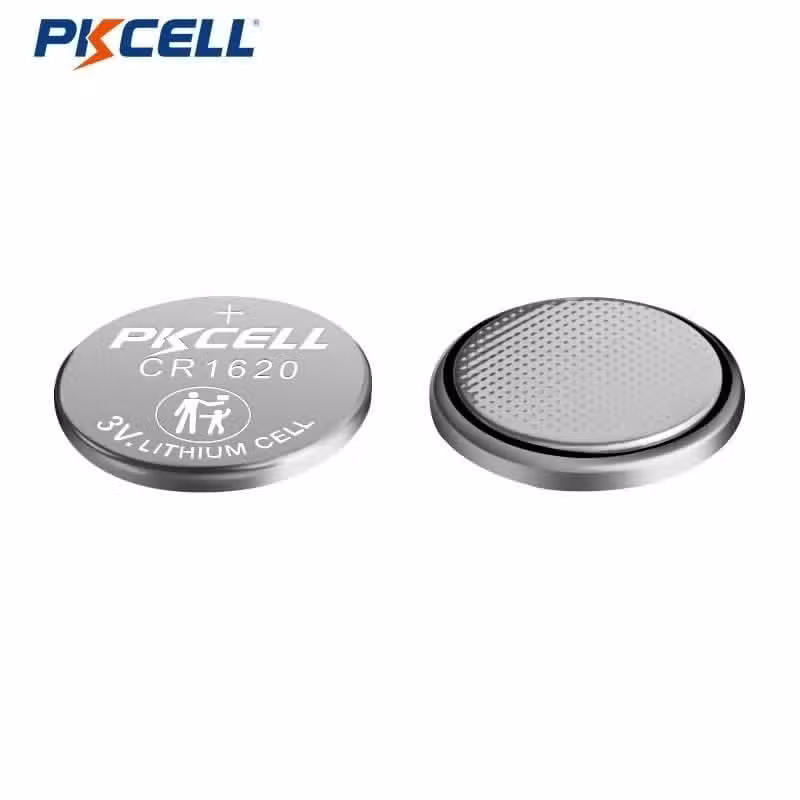

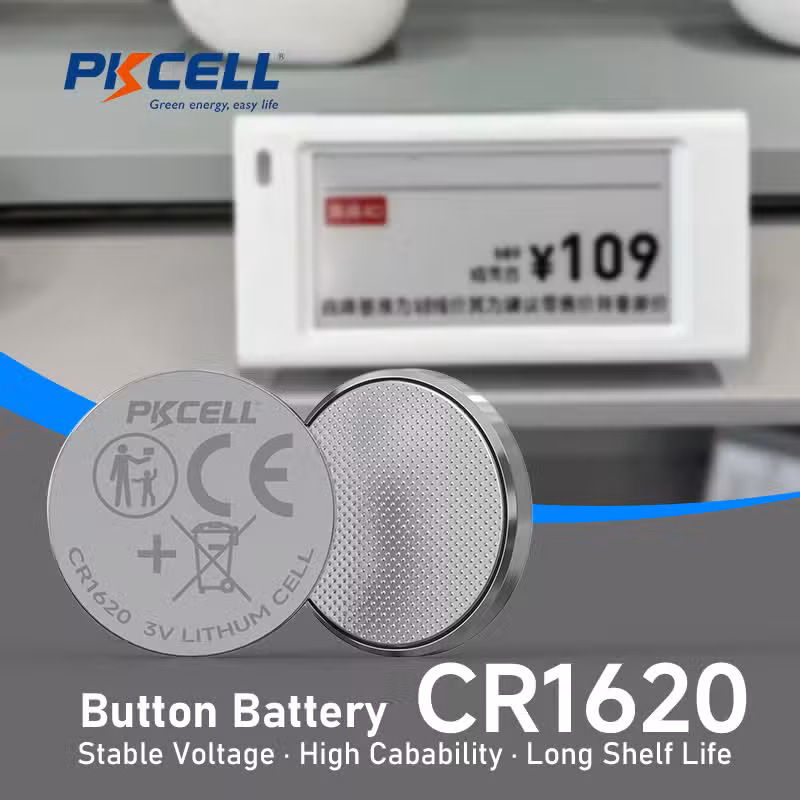

PKCELL CR1620 3V 70mAh Lithium Button Cell Battery

Coin Cell for Key Fobs and Memory Backup

The PKCELL CR1620 battery is a 3.0 V lithium manganese dioxide coin cell rated at 70 mAh. It measures 16.0 mm across and 2.0 mm thick. The cell powers car remotes, watches, CMOS memory circuits and small medical devices.

Open-circuit voltage sits between 3.05 and 3.45 V at 23 °C. Under a 47 kΩ load the terminal voltage holds 3.00 to 3.45 V after five seconds. A continuous 47 kΩ discharge to a 2.0 V cut-off runs 630 hours nominal and 560 hours minimum.

Operating temperature spans -20 °C to 60 °C, and storage stays at 25 ± 15 °C. Self-discharge holds below 5% across twelve months on the shelf. The cell weighs 1.6 g and contains no mercury, cadmium or lead.

Key Features

• Lithium Manganese Dioxide Chemistry
  The Li-MnO2 system delivers a stable 3.0 V plateau across most of the discharge curve.

• 70 mAh Rated Capacity
  Capacity is specified at 47 kΩ continuous discharge to a 2.0 V endpoint at 23 °C.

• Voltage and Discharge Envelope

  • Open-circuit voltage of 3.05–3.45 V at 23 °C.
  • Load voltage of 3.00–3.45 V under 47 kΩ after 5 seconds.
  • Fast discharge at 4.7 kΩ reaches the 2.0 V cut-off in 63 hours.

• Low Self-Discharge
  The cell loses less than 5% of capacity over twelve months at normal storage conditions.

• Primary Non-Rechargeable Cell
  The chemistry carries no memory effect, so partial discharge does not shorten service life.

• Compact 16.0 x 2.0 mm Case
  A 2.0 mm profile fits slim compartments in remotes, watches and sensor housings.

• Sealed Leak-Resistant Body
  The crimped stainless case passed a 30-day 45 °C leakage test with no electrolyte escape.

Specifications

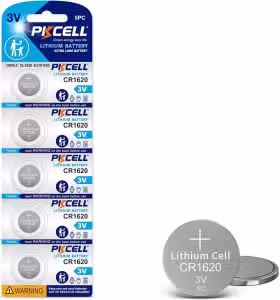

What’s in the Box

• CR1620 3.0 V lithium coin cell

Why Choose the CR1620 Cell

• The 16.0 x 2.0 mm footprint drops straight into holders marked CR1620, DL1620 or ECR1620.

• A 70 mAh rating supports long service intervals in key fobs, watches and CMOS backup rails.

• Self-discharge below 5% per year preserves reserve energy through storage and spares stock.

• The Li-MnO2 system holds 3 V without the voltage sag common to alkaline button cells.

• A 10 mA pulse rating covers LED flashes and short radio transmissions in compact devices.

• Mercury-free construction meets RoHS and battery directive requirements for office and medical equipment.

• UN38.3 and MSDS documentation ships with the cell for air freight and courier consignments.
