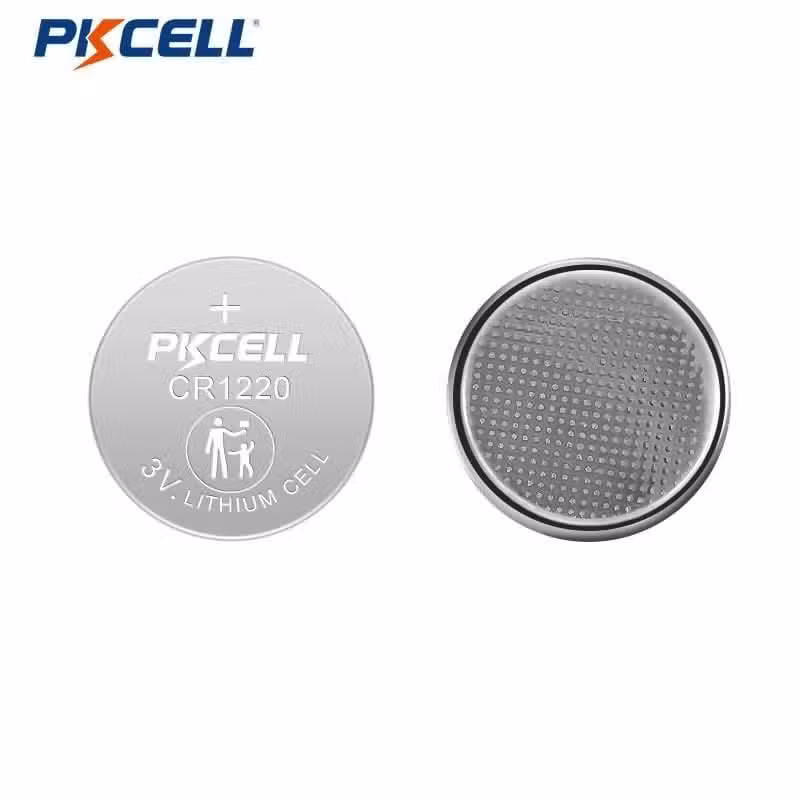

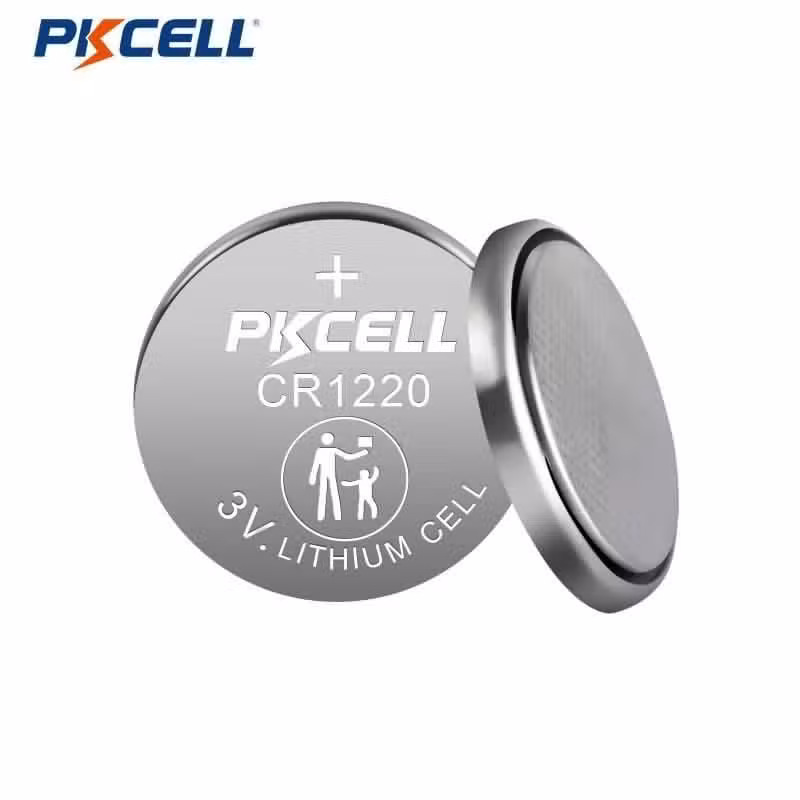

PKCELL CR1220 3V Lithium Button Cell Battery 40mAh 12.5 x 2.0 mm

Coin Cell for CMOS and Small Electronics

The PKCELL CR1220 Battery is a 3 V lithium manganese dioxide coin cell measuring 12.5 mm across and 2.0 mm thick. It weighs 0.9 g and delivers a nominal 40 mAh. Typical loads include motherboard CMOS backup, key fobs, watches and medical meters.

Open-circuit voltage measures 3.05–3.45 V at 23 °C with no load applied. Under a 62 kΩ load the terminal voltage settles at 3.00–3.45 V after five seconds. Continuous discharge into 62 kΩ to a 2.0 V cut-off yields 660 hours nominal and 590 hours minimum at the same temperature.

The manganese dioxide cathode holds a stable plateau through most of the discharge curve. Internal resistance stays low, so pulse loads for remote transmitters do not drag the voltage down sharply. A crimped steel can and gasket seal the chemistry against leakage in stored devices.

Key Features

• Lithium Manganese Dioxide Chemistry
  The LiMnO2 couple delivers a flat 3 V plateau across most of the usable capacity window.

• Compact Coin Format

  • 12.5 mm diameter and 2.0 mm height
  • 0.9 g mass suits low-weight portable assemblies
  • Fits standard CR1220 holders and clips

• 40 mAh Rated Capacity
  Continuous discharge into a 62 kΩ load reaches 660 hours nominal to a 2.0 V cut-off.

• Five-Year Shelf Life
  The low self-discharge formulation keeps stored cells usable for up to five years.

• Low Internal Resistance
  Terminal voltage holds under the short pulse currents demanded by remote transmitters.

• Mercury-Free Construction
  The cell carries no added mercury and shows no memory effect across partial discharges.

• Sealed Steel Housing
  A crimped can and insulating gasket limit electrolyte leakage inside stored equipment.

• Wide Application Range
  The cell serves CMOS memory, watches, car remotes, calculators and small sensors.

Specifications

What’s in the Box

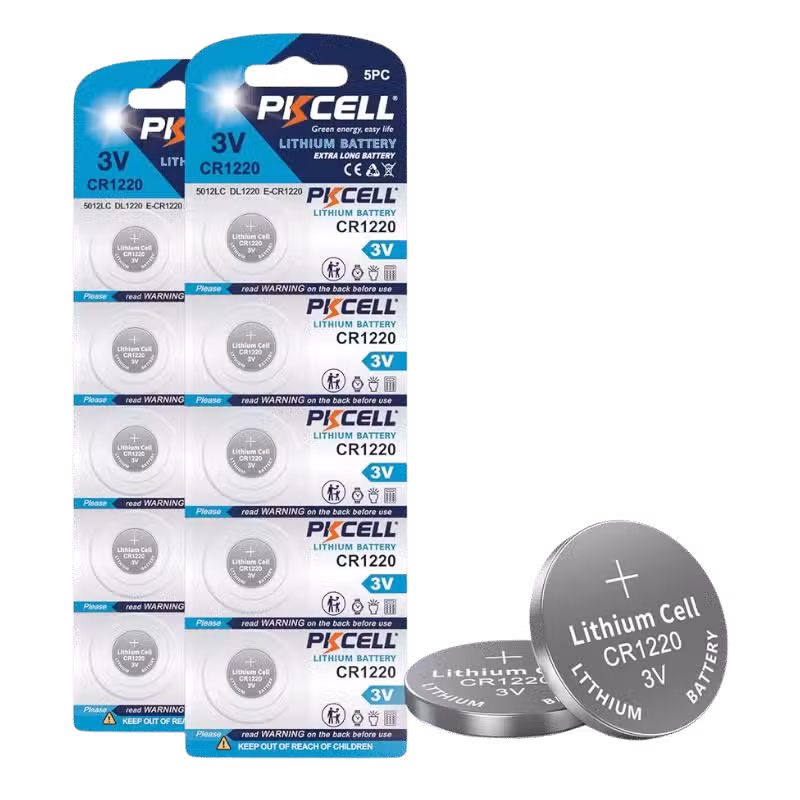

• CR1220 lithium coin cells in retail packaging

• Handling and disposal instructions

Why Choose These Cells

• The stable discharge plateau keeps CMOS clocks and memory alive to the cut-off point.

• Low self-discharge means spares survive long periods in a drawer or service kit.

• The 12.5 × 2.0 mm body drops into existing holders without adapters.

• Mercury-free chemistry suits procurement policies that restrict heavy metals.

• Sealed housing reduces leakage risk in watches and door-entry hardware.

• A -20 to +60 °C window covers indoor equipment rooms and vehicle interiors.

people also view

• PKCELL CR1220 3V Lithium Button Cell Battery
• PKCELL CR2016 3V Lithium Coin Cell Battery

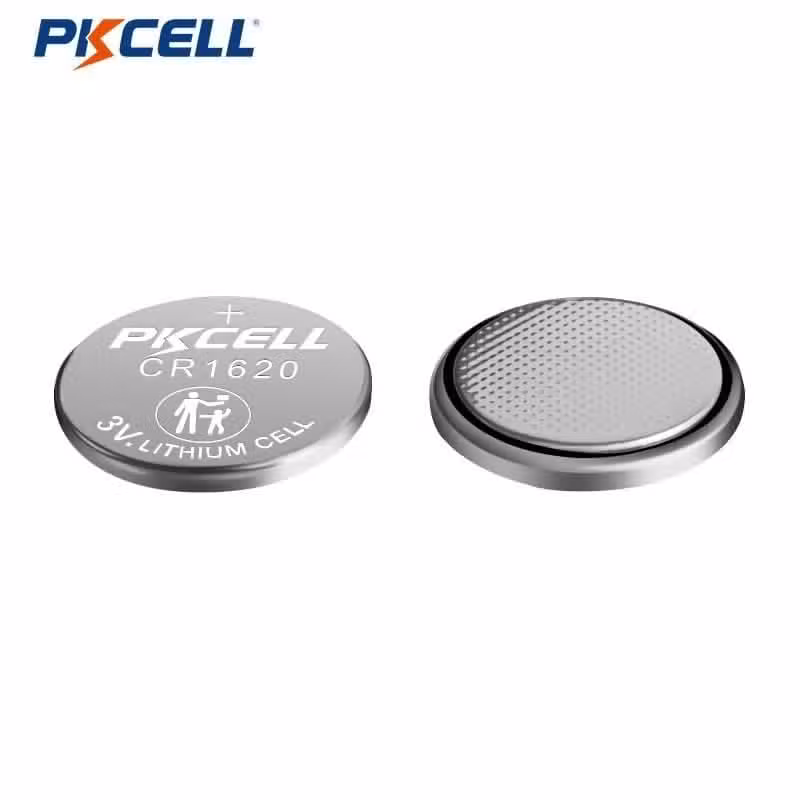

• PKCELL CR1620 3V Lithium Button Cell
