OEM TL-110B RJ45 Impact Punch Tool
Original price was: KSh 800.00.KSh 600.00Current price is: KSh 600.00. ex VAT
OEM TL-110B RJ45 Impact Punch Tool
| Model | TL-110B |
| Tool Type | Impact punch down |
| Connector | RJ45 keystone, 110 IDC |
| Wire Gauge | 22–26 AWG |
| Brand | OEM |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

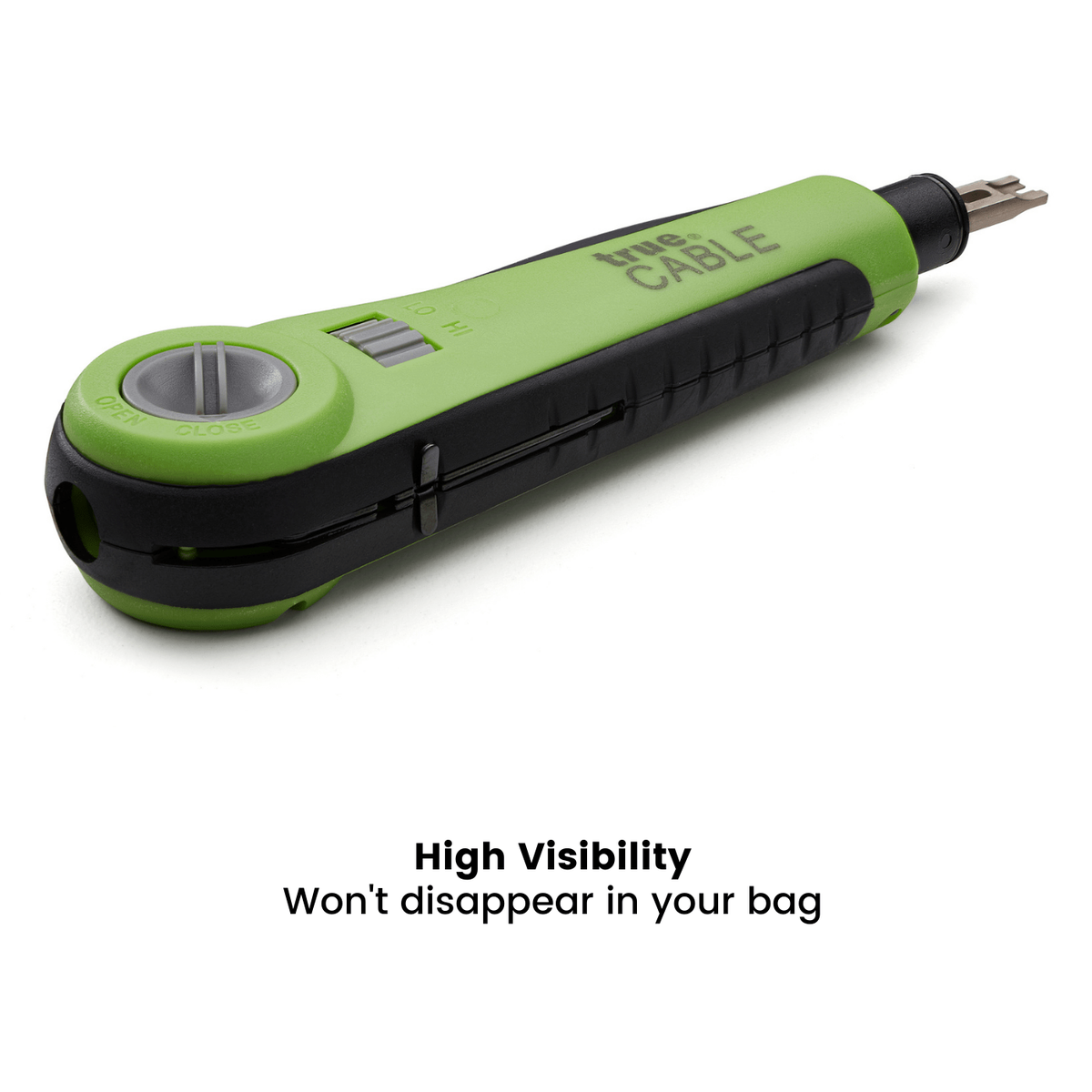

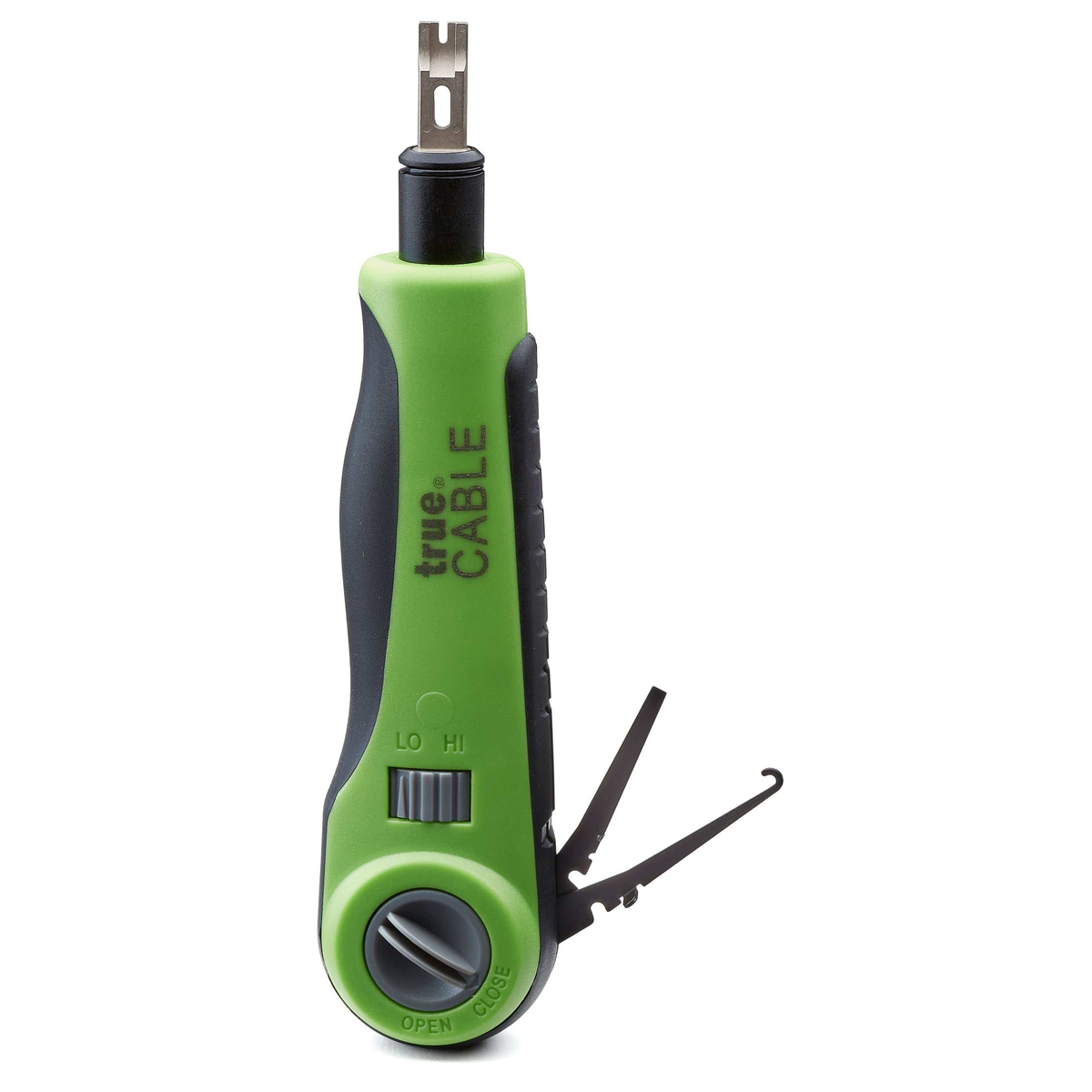

TL-110B Impact Punch Tool
The OEM TL-110B RJ45 impact punch down tool terminates network jacks and 110-style blocks on structured cabling projects. Spring-loaded impact action seats each twisted pair into IDC contacts with repeatable force. Technicians use this tool on RJ45 keystone jacks, patch panel blocks, and cross-connect fields during copper installs. The impact mechanism reduces hand fatigue on high-port-count termination days. Blade design trims excess conductor while pressing wire into the insulation displacement slot. Installers achieve consistent seating that supports Cat5e, Cat6, and Cat6A certification results. Network teams assign impact tools to lead technicians working MDF and IDF punch schedules. The TL-110B model aligns with standard 110 punch blocks found on commercial patch panels.
Key Features
- Impact Punch Action
Spring-loaded strike delivers consistent force for IDC seating on each conductor. - RJ45 Keystone Support

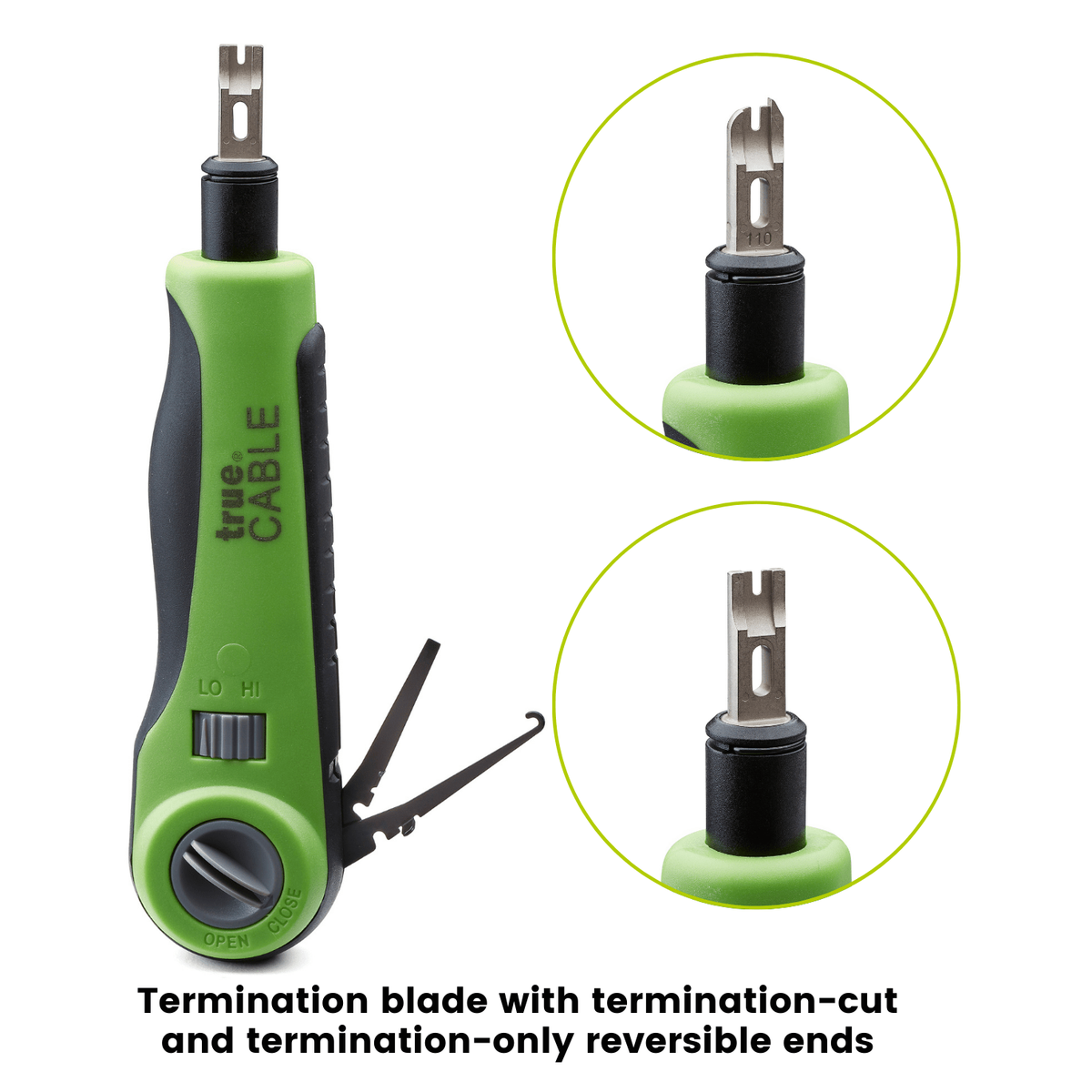

Terminates RJ45 keystone jacks and 110-style patch panel blocks. - Integrated Trim Function
- Blade cuts excess wire during the impact stroke
- Leaves flush terminations ready for faceplate install
- High-Volume Termination
Impact design reduces hand fatigue on dense 48-port punch schedules.
Specifications
| Feature | Specification |
|---|---|
| Model | TL-110B (TL-110 series) |
| Tool Type | Impact punch down |
| Connector Support | RJ45 keystone, 110 IDC blocks |
| Wire Gauge | 22–26 AWG solid copper |
| Cable Category | Cat5e, Cat6, Cat6A |
| Brand | OEM |
| SKU | TL-110B |
What’s in the Box
- TL-110B impact punch down tool with spring-loaded head
Why Choose TL-110B
- Impact action delivers uniform IDC seating across long punch shifts on dense panels.
- Supports RJ45 keystones and 110 blocks used in standard TIA-568 copper installs.
- Integrated trim blade eliminates separate wire cutting steps at each port.
Nancy Wairimu (verified owner) –
Bought for terminating camera runs. Cut and punch in one motion once you get the rhythm. Replacement blade would be nice but the default one is still sharp after dozens of plugs.
Rodgers Otieno (verified owner) –
RJ45 impact tool — seats jacks properly first time. TL-110B feels solid.
Philip Langat (verified owner) –
Standard kit item for our installers. Works on Krone-style blocks and RJ45 keystones. Impact adjustment is simple and new trainees pick it up quickly.
