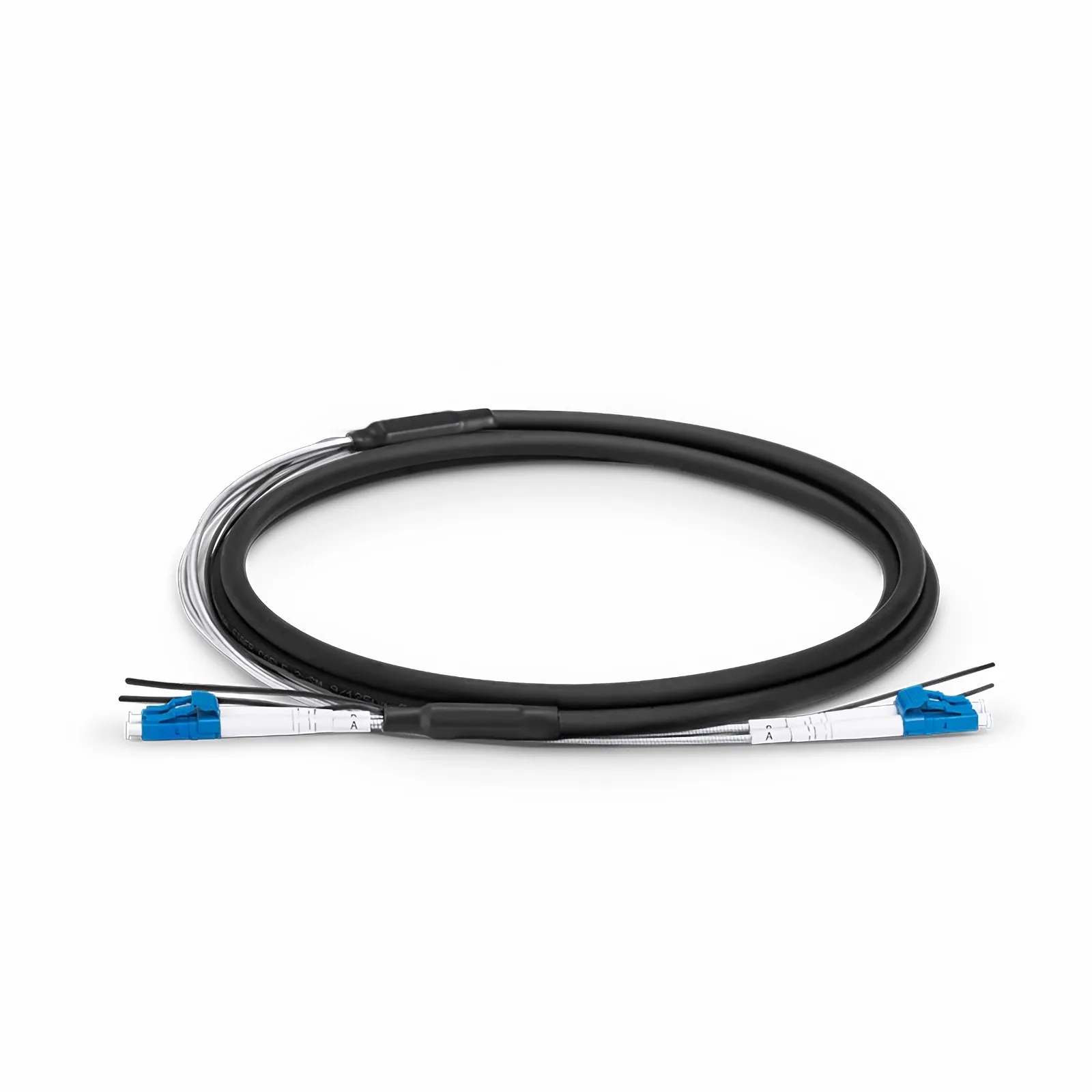

LC to LC UPC OS2 Single Mode Duplex Fiber Patch Cord 20m
Limited Stock
LC to LC UPC OS2 Single Mode Duplex Fiber Patch Cord 20m
| Feature | Specification |
|---|---|
| Connector type | LC to LC |
| Polish | UPC to UPC |
| Fiber mode | OS2 single mode, 9/125 μm |
| Construction | Duplex |
| Length | 20 m |
| Insertion loss | ≤0.3 dB per connector |
| Return loss | ≥50 dB |
| Jacket | LSZH, yellow, 2.0 mm |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Single Mode Duplex Jumper for OS2 Links
The LC OS2 patch cord links LC-terminated transceivers and patch panels across a 20-metre single mode run. It carries a duplex pair of 9/125 μm fibers with UPC-polished LC connectors on both ends. Yellow jacket marking identifies the OS2 grade on the rack.
Insertion loss stays at or below 0.3 dB per connector, and return loss reaches at least 50 dB. The UPC ferrule end-face limits back reflection on 1310 nm and 1550 nm wavelengths. Ceramic ferrules maintain alignment through repeated mating cycles.
The 2.0 mm LSZH jacket resists flame spread and emits low smoke in enclosed risers. Bend-insensitive G.657.A1 fiber tolerates tight routing radii inside wall boxes and cable managers. Operating range spans -20 °C to 70 °C for indoor and sheltered outdoor cabinets.
Key Features
LC UPC Connectors with Ceramic Ferrules
Zirconia ferrules hold alignment and keep insertion loss under 0.3 dB.Duplex OS2 Fiber Construction
- Two 9/125 μm single mode fibers run in a zip-cord jacket
- One assembly carries both TX and RX paths
Low Return Loss UPC Polish
The UPC finish delivers ≥50 dB return loss, which suits 100G and CWDM optics.LSZH Jacket and Bend-Insensitive Fiber
G.657.A1 core geometry allows a 10 mm bend radius while the jacket meets low-smoke requirements.
Specifications
| Feature | Specification |
|---|---|
| Connector type | LC to LC |
| Polish | UPC to UPC |
| Fiber mode | OS2 single mode, 9/125 μm |
| Construction | Duplex |
| Length | 20 m |
| Insertion loss | ≤0.3 dB per connector |
| Return loss | ≥50 dB |
| Wavelength | 1310 / 1550 nm |
| Jacket material | LSZH |
| Jacket color | Yellow |
| Cable diameter | 2.0 mm |
| Fiber standard | ITU-T G.657.A1 bend insensitive |
| Operating temperature | -20 °C to 70 °C |
What’s in the Box
LC to LC OS2 duplex patch cord, 20 m
Individual insertion loss and return loss test report
Why Choose This OS2 Duplex Jumper
The 20 m span reaches between racks without an intermediate coupling point.
UPC ferrules and ceramic alignment sleeves keep reflection low on long single mode runs.
Bend-insensitive fiber survives tight cable management in dense patch panels.
LSZH jacketing suits risers and enclosed cabinets where smoke output matters.
Yellow OS2 marking separates single mode jumpers from multimode stock during maintenance.
