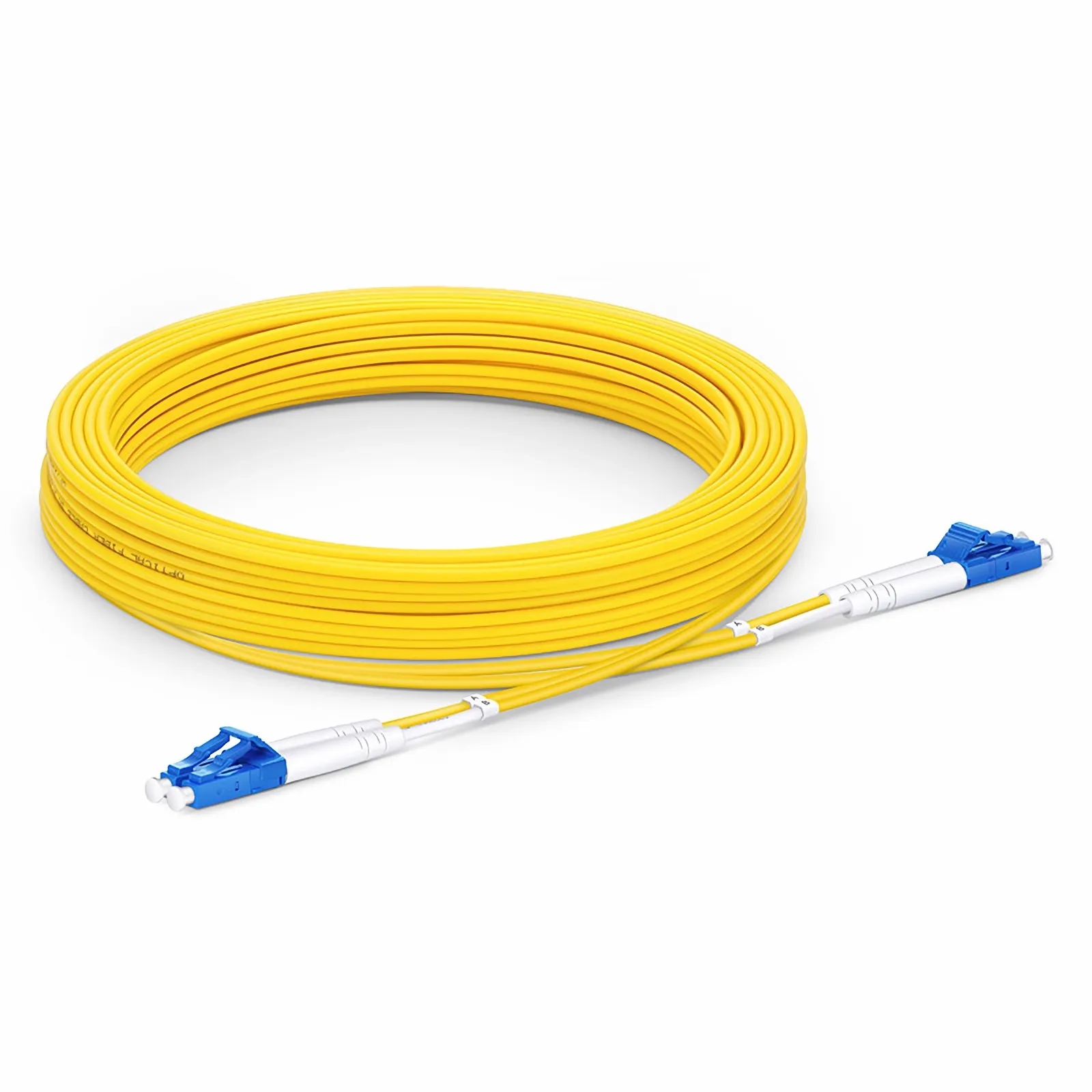

OS2 LC-LC Patch Cord Single Mode UPC Duplex 9/125 µm LSZH Yellow
Limited Stock
OS2 LC-LC Patch Cord Single Mode UPC Duplex 9/125 µm LSZH Yellow
| Connector type | LC to LC, duplex |
| Polish type | UPC to UPC |
| Fiber category | OS2 single mode, 9/125 µm |
| Insertion loss | ≤0.3 dB per mated pair |
| Return loss | ≥50 dB |
| Attenuation | 0.36 dB/km at 1310 nm, 0.22 dB/km at 1550 nm |
| Cable diameter | 2.0 mm |
| Jacket | LSZH, yellow |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Singlemode Fiber Lead for Long-Reach Uplinks
The OS2 LC-LC Patch Cord is a duplex single mode assembly for 1310 nm and 1550 nm links. Two LC/UPC connectors terminate a 9/125 µm OS2 fiber pair. Insertion loss holds at 0.3 dB or below per mated pair.
UPC-polished zirconia ceramic ferrules return loss of 50 dB or better. Attenuation measures 0.36 dB/km at 1310 nm and 0.22 dB/km at 1550 nm. The assembly carries 10G, 40G and 100G duplex single mode traffic to the full standard distance. A tight-buffered core keeps the two fibers aligned through the run.
A 2.0 mm LSZH jacket suits high-density trays and 1U enclosures. Minimum bend radius is 10 mm under load. Operating temperature spans -20 °C to 70 °C. The yellow sheath separates single mode runs from orange multimode cabling at a glance.
Key Features
Duplex LC/UPC Termination
Two LC connectors with zirconia ceramic ferrules sit on a 9/125 µm fiber pair.OS2 Singlemode Core
- 9/125 µm core and cladding for 1310 nm and 1550 nm operation
- Attenuation of 0.36 dB/km at 1310 nm and 0.22 dB/km at 1550 nm
- Supports 10G, 40G and 100G duplex channels
Low Loss Connectors
Maximum insertion loss is 0.3 dB per mated pair with return loss of 50 dB or better.Tight-Buffered Zipcord
The two fibers share a 2.0 mm jacket and split at the boots for polarity control.LSZH Flame-Retardant Jacket
Low smoke zero halogen material limits toxic emissions inside occupied equipment rooms.Short Bend Radius
A 10 mm minimum bend radius fits tight cable trays behind dense patch fields.Yellow Sheath Coding
The jacket colour identifies single mode fiber against multimode and copper runs.
Specifications
| Feature | Specification |
|---|---|
| Connector type | LC to LC, duplex |
| Polish type | UPC to UPC |
| Fiber category | OS2 single mode |
| Core / cladding | 9/125 µm |
| Fiber count | 2 (duplex zipcord) |
| Insertion loss | ≤0.3 dB per mated pair |
| Return loss | ≥50 dB |
| Ferrule material | Zirconia ceramic |
| Wavelengths | 1310 nm and 1550 nm |
| Attenuation at 1310 nm | 0.36 dB/km |
| Attenuation at 1550 nm | 0.22 dB/km |
| Cable diameter | 2.0 mm |
| Jacket material | LSZH |
| Jacket colour | Yellow |
| Bend radius, minimum | 10 mm |
| Mating durability | 500 cycles |
| Operating temperature | -20 °C to 70 °C |
| Storage temperature | -40 °C to 85 °C |
| Flame retardance | IEC 60332-1-2 |
| Standards | ISO/IEC 11801, TIA-568, IEC 61754-20 |
| Application | 10GBASE-LR, 40GBASE-LR4, 100GBASE-LR4 |
What’s in the Box
Duplex LC-LC OS2 single mode fiber assembly
Dust caps on both connector ends
Why Choose This Singlemode Lead
Carries 10G and 100G uplinks across distances that multimode cannot reach.
Zirconia ferrules hold alignment through repeated patching and audits.
The zipcord jacket simplifies polarity swaps between LC transceivers.
Low attenuation at 1550 nm supports long campus and inter-building spans.
The yellow LSZH sheath identifies single mode runs during maintenance.
Loss figures suit link budget planning against ISO/IEC 11801 channel limits.
