LC-LC UPC 10m OS2 Patch Cord Duplex 9/125 µm Single-Mode Fiber
Limited Stock
LC-LC UPC 10m OS2 Patch Cord Duplex 9/125 µm Single-Mode Fiber
| Connector type | LC/UPC to LC/UPC, duplex |
| Fiber category | OS2 single-mode, 9/125 µm |
| Fiber grade | G.657.A1 bend-insensitive |
| Assembly length | 10 m |
| Insertion loss | ≤0.3 dB per mated pair |
| Return loss | ≥50 dB (UPC) |
| Wavelength range | 1260–1625 nm |
| Cable diameter | 2.0 mm |
| Jacket | LSZH, yellow |
| Bend radius | 10 mm loaded |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Duplex Single-Mode Fiber Lead for 10 m Rack Runs
The LC-LC UPC 10m OS2 is a duplex single-mode patch cord built for 1310 nm and 1550 nm links. Two LC/UPC connectors terminate a 9/125 µm OS2 fiber pair over a 10 m run. Ceramic ferrules and UPC polish hold insertion loss at 0.3 dB or less per mated pair.
G.657.A1 bend-insensitive glass carries traffic across 1260–1625 nm and supports CWDM overlays. Attenuation runs to 0.36 dB/km at 1310 nm and 0.22 dB/km at 1550 nm. The fiber is backward compatible with OS1 links and supports 1G, 10G, 25G, 40G and 100G Ethernet.
A 2.0 mm zipcord jacket fits high-density trays and 1U enclosures. The yellow LSZH sheath marks single-mode runs and limits toxic smoke in enclosed cabinets. Bend radius holds at 10 mm under load. Operating temperature spans -20 °C to 70 °C, and each assembly ships individually tested.
Key Features

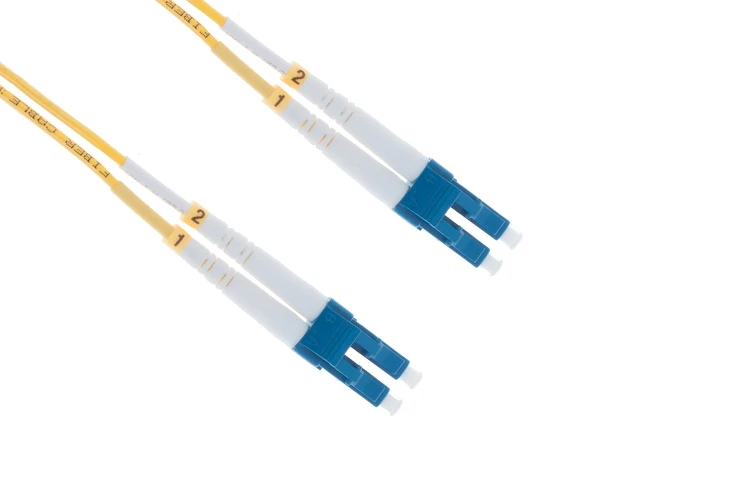

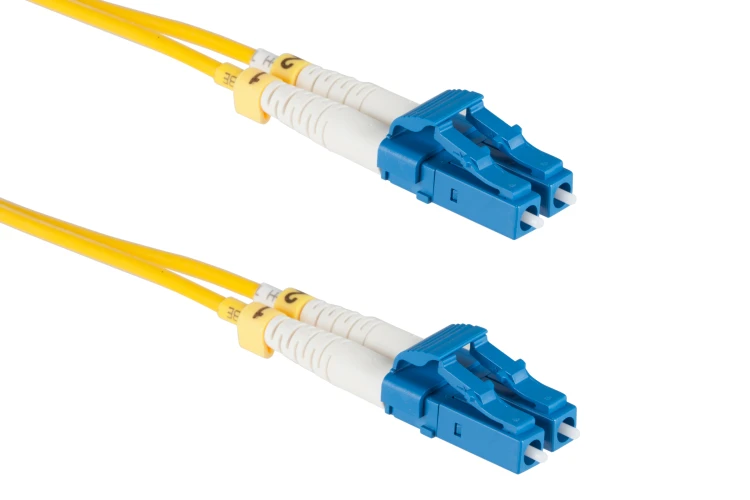

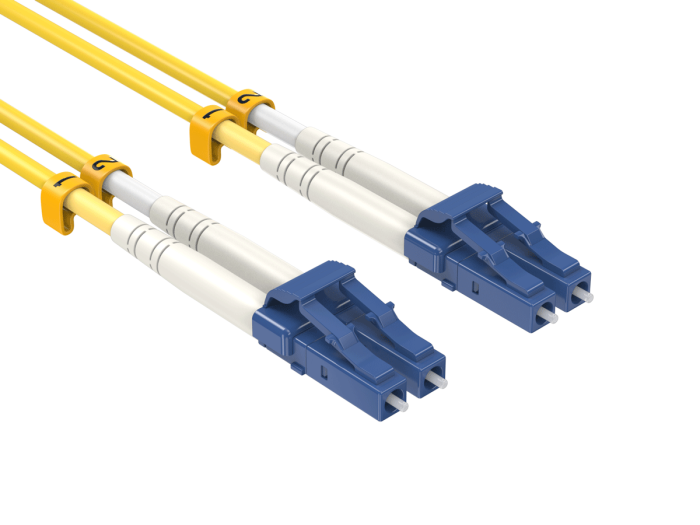

LC/UPC Duplex Termination
Two LC connectors with zirconia ceramic ferrules present a standard duplex interface on both ends.OS2 9/125 µm Single-Mode Fiber
The core supports long-reach transmission at 1310 nm and 1550 nm across the full 10 m span.Optical Performance
- Insertion loss ≤0.3 dB per mated pair
- Return loss ≥50 dB with UPC polish
- 1000 mating cycles rated connector durability
Bend-Insensitive G.657.A1 Glass
The fiber tolerates tight routing loops inside shallow trays and wall-mounted enclosures.Zipcord Construction
The two fibers share one 2.0 mm jacket and separate at the connectors for polarity control.LSZH Yellow Jacket
Low-smoke zero-halogen compound limits toxic emissions and identifies the single-mode run.10 Metre Assembly Length
The 10 m run links adjacent racks and remote patch panels without excess slack coil.
Specifications
| Feature | Specification |
|---|---|
| Connector type | LC/UPC to LC/UPC, duplex |
| Fiber category | OS2 single-mode |
| Core / cladding | 9/125 µm |
| Fiber grade | G.657.A1 bend-insensitive, G.652.D compatible |
| Fiber count | 2 (duplex zipcord) |
| Assembly length | 10 m |
| Insertion loss | ≤0.3 dB per mated pair |
| Return loss | ≥50 dB (UPC polish) |
| Wavelength range | 1260–1625 nm |
| Attenuation at 1310 nm | ≤0.36 dB/km |
| Attenuation at 1550 nm | ≤0.22 dB/km |
| Cable diameter | 2.0 mm |
| Jacket material | LSZH |
| Jacket colour | Yellow |
| Bend radius, loaded | 10 mm |
| Mating durability | 1000 cycles |
| Tensile strength, long/short term | 90/150 N |
| Polarity | A to B |
| Operating temperature | -20 °C to 70 °C |
| Storage temperature | -40 °C to 80 °C |
| Standards | ITU-T G.657.A1, IEC 61300-3-4, TIA-568.3-D, RoHS |
| Application | 1G/10G/25G/40G/100G Ethernet, CWDM |
What’s in the Box
10 m duplex LC to LC single-mode fiber assembly
Dust caps on both connector ends
Individual test report
Why Choose This Single-Mode Lead
UPC end faces keep back-reflection low on analogue video and high-bit-rate links.
OS2 glass supports runs well beyond the reach of OM3 and OM4 multimode.
The 10 m span covers rack-to-rack and panel-to-panel routes without slack loops.
LSZH jacket suits enclosed cabinets where PVC smoke would be a hazard.
Yellow sheath lets technicians identify single-mode ports without tracing.
Bend-insensitive glass reduces loss when the cord is pressed against a tray wall.
