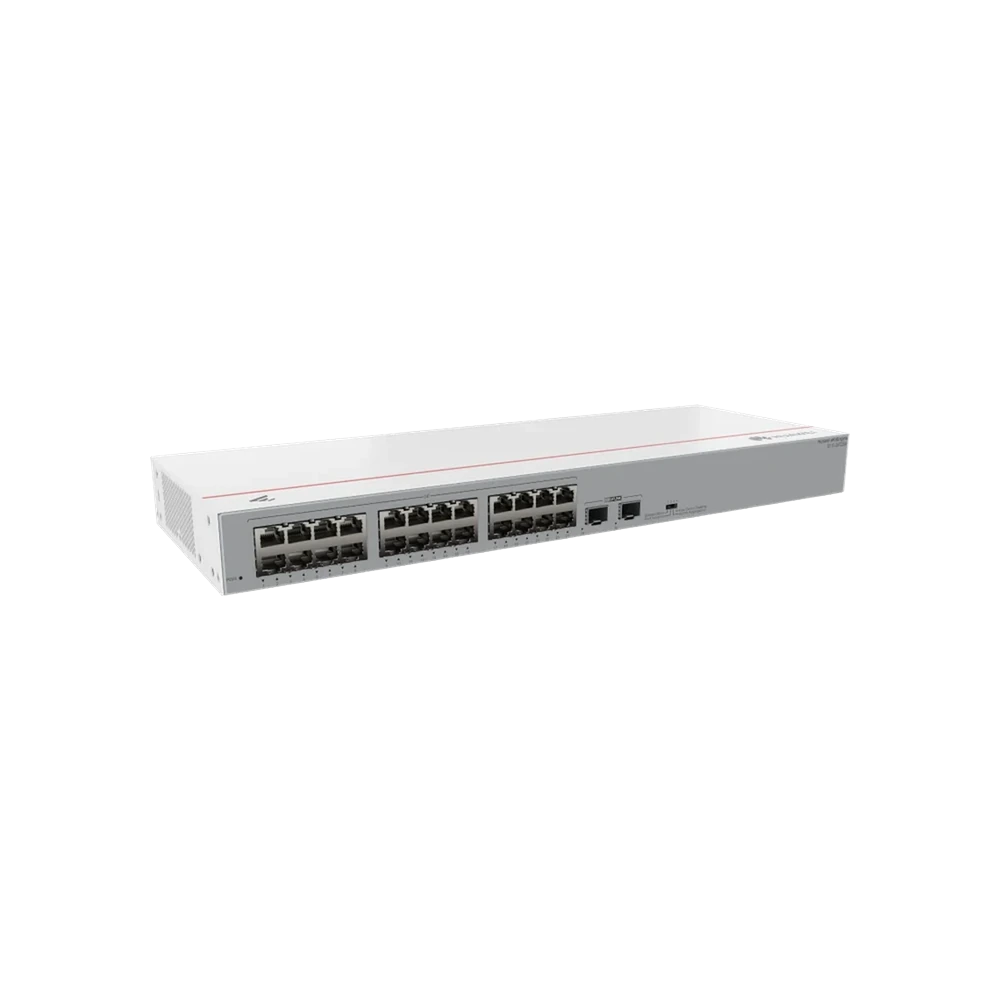

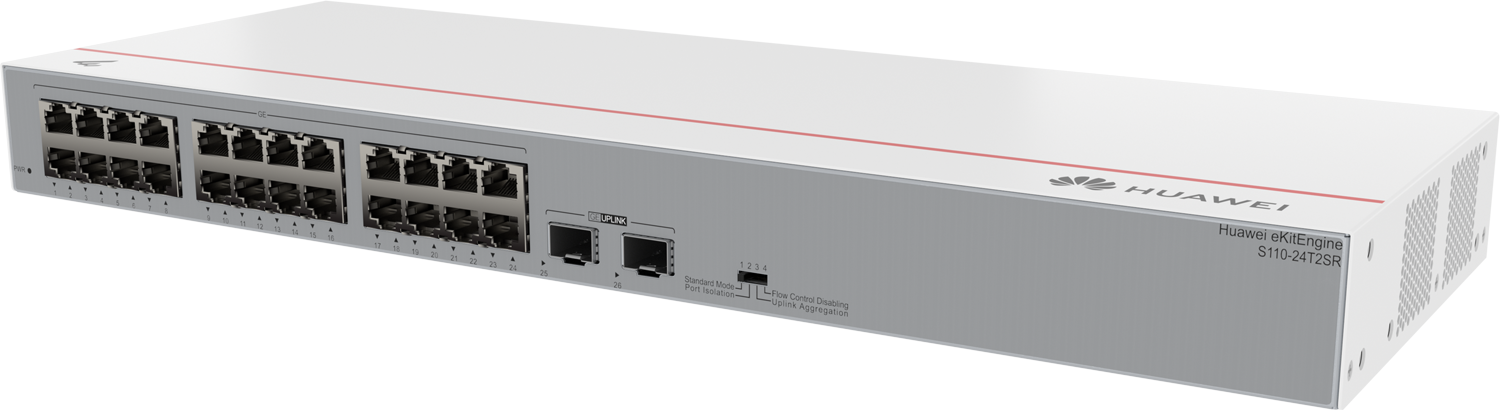

Huawei S110-24T2SR Switch 24-Port Gigabit Unmanaged with 2x GE SFP

24-Port Gigabit Access Switching

The Huawei S110-24T2SR Switch provides 24 autosensing 10/100/1000BASE-T RJ45 ports and two GE SFP uplink slots for small and medium office networks. It operates as an unmanaged Layer 2 device with plug-and-play deployment.

Its 52 Gbps switching capacity and 38.69 Mpps forwarding rate handle simultaneous gigabit traffic across all copper ports. The 8K MAC address table supports typical access-layer device counts without manual configuration.

The fanless 1U chassis measures 442 x 160 x 43.6 mm and weighs 1.8 kg. A built-in AC power supply accepts 100-240 V AC at 50/60 Hz and draws about 17 W maximum, so the unit suits wiring closets without dedicated cooling.

Rack-mount ears and a desktop orientation support flexible installation. Front-panel LEDs show power and per-port link/activity status for rapid fault isolation. The switch forwards VLAN-tagged frames transparently and requires no CLI or cloud account.

Key Features

• 24 Gigabit Copper Ports
  Each RJ45 port autonegotiates 10, 100, or 1000 Mbps and supports auto MDI/MDIX for straight-through or crossover cabling.

• Dual GE SFP Uplinks
  Two 1000BASE-X SFP slots connect fiber backbones or servers without occupying copper access ports.

• Unmanaged Layer 2 Forwarding
  The device forwards Ethernet frames at wire speed with no IP address, CLI, or controller required.

• Fanless 1U Metal Chassis
  A 442 x 160 x 43.6 mm enclosure mounts in a standard 19-inch rack or sits on a desktop.

• Front-Panel Status LEDs
  Power and per-port indicators show link and activity states for quick physical-layer troubleshooting.

• 52 Gbps Switching Capacity
  The 52 Gbps fabric and 38.69 Mpps forwarding rate support all 26 gigabit ports at line rate.

Specifications

What’s in the Box

• S110-24T2SR unit

• AC power cord

• Quick start guide

• Warranty card

Why Choose the S110-24T2SR

• Twenty-four copper access ports and two fiber uplinks cover mixed-copper-fiber topologies in one 1U unit.

• The 52 Gbps fabric forwards every gigabit port at full-duplex line rate.

• Fanless operation removes moving parts and reduces dust ingress in office cabinets.

• An unmanaged workflow cuts commissioning to cabling and power connection.

• Front LEDs and a 1.8 kg metal chassis simplify rack service and desktop placement.

• An 8K MAC table accommodates dense endpoint populations in branch and floor access closets.
