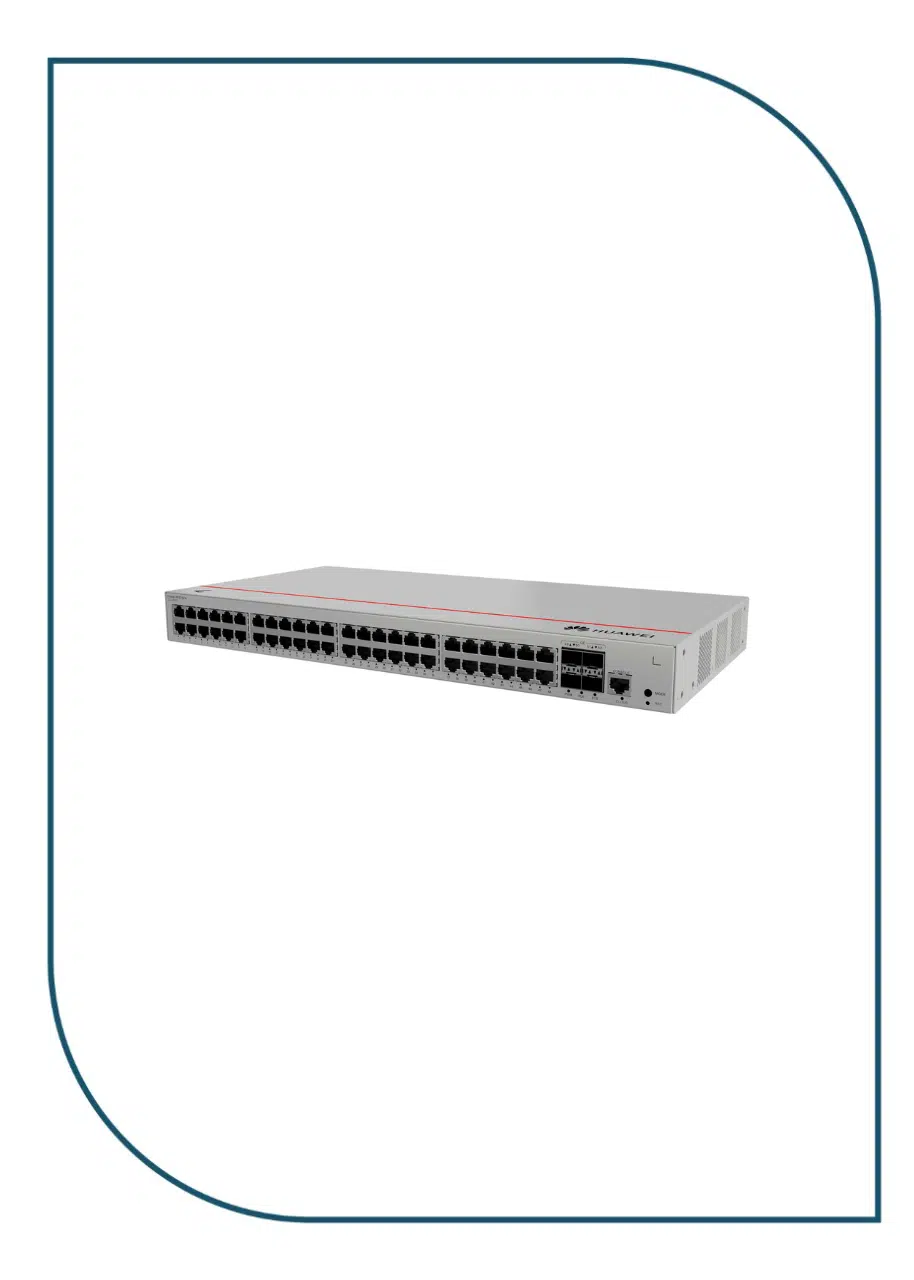

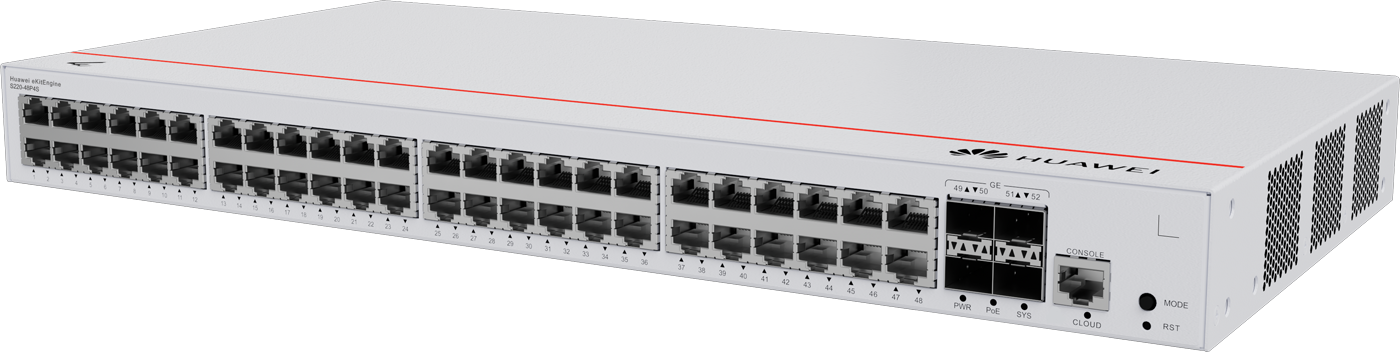

Huawei eKitEngine S220-48P4S 48-Port Gigabit PoE+ Switch with 4 GE SFP Uplinks

48-Port Layer 2 Access Switch with 380 W PoE Budget

The Huawei S220-48P4S PoE switch pairs 48 gigabit copper downlinks with four fibre uplinks inside a 1U metal chassis. It serves campus access, hospitality, retail and building-security networks. Every RJ45 port carries 802.3af/at power while forwarding traffic at line rate.

The unit switches 104 Gbit/s and forwards 77 Mpps, so all 52 ports run non-blocking at gigabit speed. A 16K MAC table and 4094 VLANs support segmented topologies with voice VLAN, VLAN stacking and MAC, protocol, IP-subnet, policy or port-based assignment.

An internal AC supply removes the need for an external adapter or a separate injector shelf. That supply reserves 380 W for powered devices and draws at most 63.70 W with no PoE load. Two variable-speed fans move air from left intake to right exhaust.

Key Features

• PoE+ on All Copper Ports
  All 48 ports supply 802.3af and 802.3at power, enough for 24 Class 0 devices or 12 Class 4 devices at full load.

• Perpetual and Fast PoE Behaviour

  • Downstream devices keep power through a software upgrade or reboot.
  • Powered devices receive current as soon as the chassis is energised, not after boot completes.

• Fibre Aggregation Uplinks
  Four 1000BASE-X SFP slots accept GE eSFP, CWDM, DWDM and GE copper modules for uplink or stacking paths.

• Ring Protection Stack

  • ERPS per ITU-T G.8032 reconverges ring traffic in milliseconds.
  • STP, RSTP and MSTP add BPDU, root and loop protection.

• Security Controls
  DHCP snooping, 802.1X, MAC authentication, port isolation, IP-MAC-port-VLAN binding and DoS, ARP and ICMP attack defence are built in.

• Cloud and Local Management
  Engineers reach the device through web GUI, CLI over SSHv2.0, SNMPv1/v2/v3, Telnet, or the eKit app and cloud portal with no licence fee.

Specifications

What’s in the Box

• S220-48P4S switch unit

• AC power cable

• Rack mounting brackets and screws

• Rubber feet for desk placement

• Installation guide

Why Choose the S220-48P4S

• Dense gigabit access plus 380 W of shared power covers camera and access point rollouts without extra midspan hardware.

• 104 Gbit/s of switching capacity and 16K address entries size the unit for multi-tenant floors and small distribution layers.

• Power inlet surge protection of +/-6 kV differential and common mode, combined with +/-7 kV common mode on service ports, suits exposed building cabling.

• A -5 degC to +50 degC operating window at 0-1800 m allows installation in unheated comms rooms and warehouse risers.

• Acoustic output of 49.3 dB(A) sound power at normal temperature keeps the chassis acceptable in open-plan offices.
