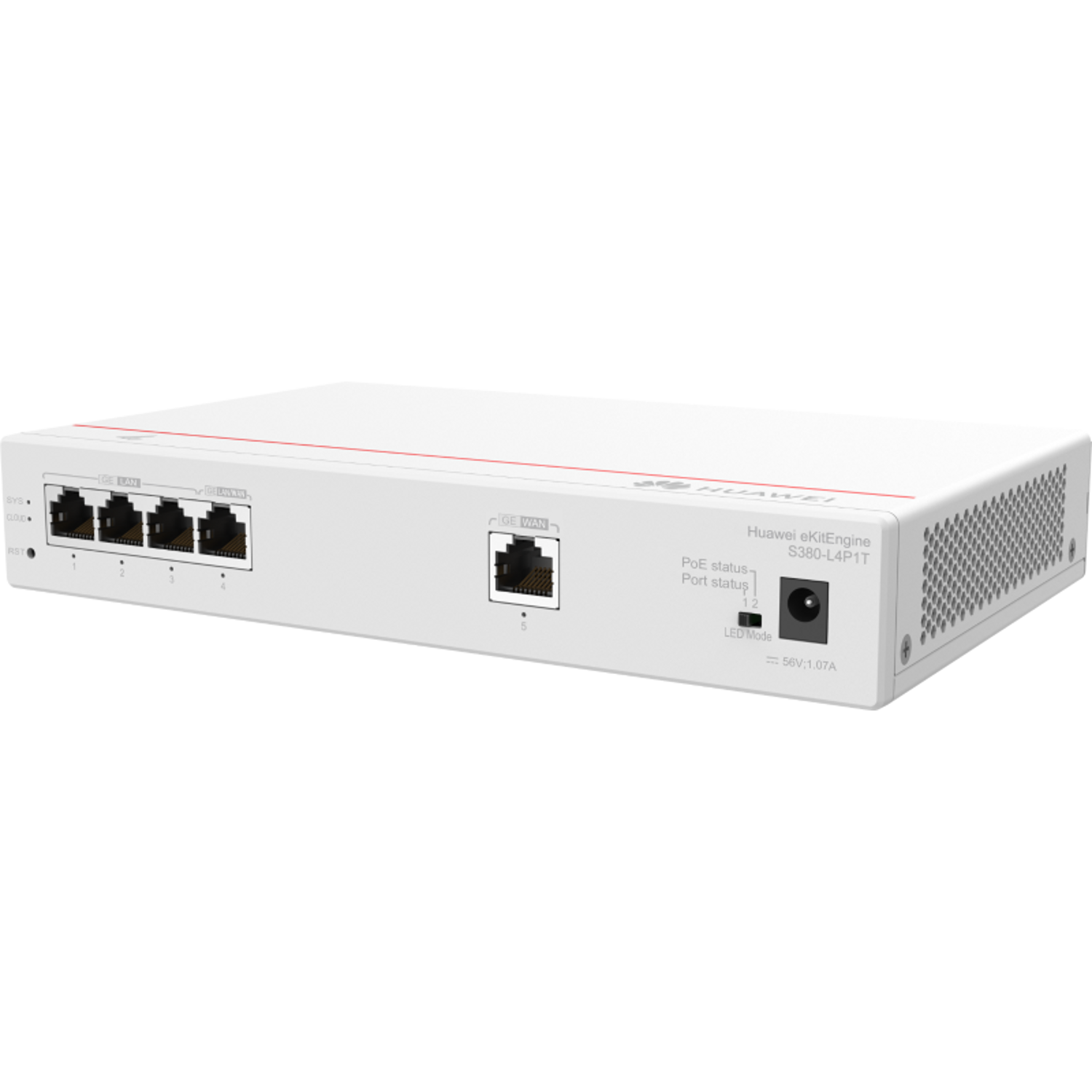

Huawei S380-L4P1T 1GE WAN 4GE PoE+ Multi-Service Gateway 150 Users

Compact Branch Gateway with PoE+

The Huawei S380-L4P1T is a multi-service gateway that combines routing, switching and Power over Ethernet in a fanless metal chassis. It targets small offices that need wired connectivity, central management and a controlled power budget. The device forwards up to 2 Gbps and supports 150 users in this deployment profile.

One Gigabit Ethernet WAN port connects the branch to an ISP or upstream router. Four Gigabit LAN ports deliver PoE+ on 802.3af and 802.3at standards with a total budget of 50 W. The switching capacity reaches 8 Gbps, and the egress bandwidth is 1 Gbps.

An integrated wireless access controller manages up to 32 access points. Administrators use the Huawei eKit app, a web interface or SSH for configuration. The gateway supports IPSec VPN, NAT traversal, access control lists and port security for segmented branch traffic.

Key Features

• Integrated Routing and Switching
  One GE WAN port and four GE LAN ports handle branch WAN termination and local device connectivity in a single unit.

• PoE+ Power Delivery
  All four LAN ports supply 802.3af and 802.3at power with a 50 W total budget for access points, IP phones and cameras.

• Central Access Point Control
  The built-in wireless controller manages up to 32 access points without an additional hardware controller.

• Flexible Management
  The Huawei eKit app provides cloud-based monitoring, while local administrators can use the web interface or SSH.

• Branch Security
  IPSec VPN, NAT traversal, access control lists and port security support segmented traffic and encrypted site-to-site links.

• Fanless Metal Chassis
  Natural heat dissipation removes moving parts and supports desk or wall mounting in wiring closets and small cabinets.

Specifications

What’s in the Box

• S380-L4P1T multi-service gateway

• External power adapter

• Quick start guide

• Mounting hardware

Why Choose This Gateway

• Combines wired routing, switching and PoE+ delivery to reduce separate branch devices.

• Provides 50 W of PoE power for access points, phones and cameras without an extra injector.

• Supports centralized cloud monitoring and local CLI access for managed service providers.

• Delivers 8 Gbps switching capacity and 2 Gbps forwarding performance for small-site traffic.

• Uses a fanless metal enclosure for quiet operation and wall or desk installation.
