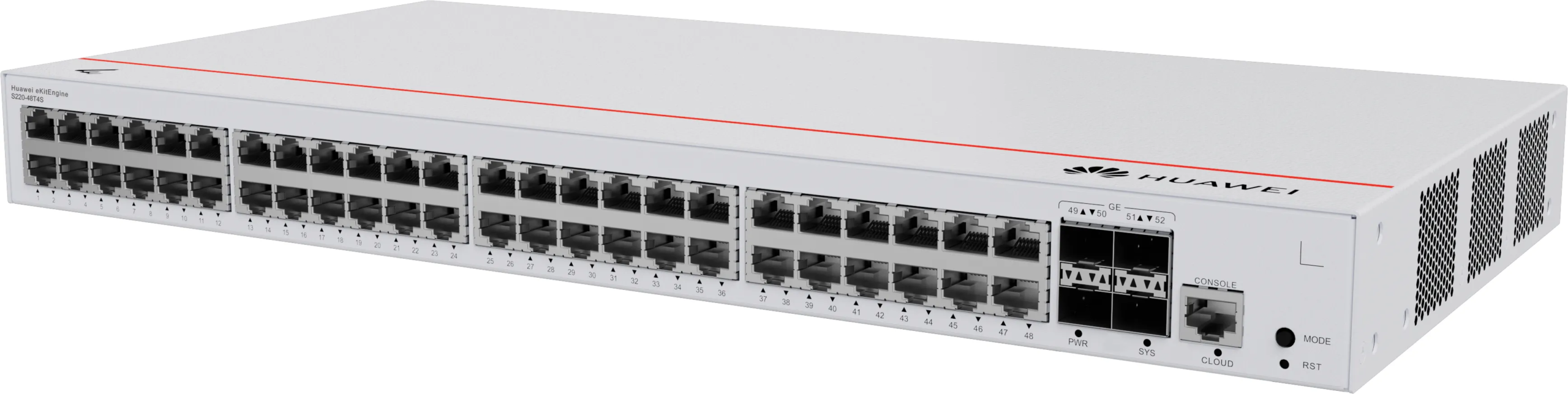

Huawei S220-48T4S 48-Port Gigabit L2 Managed Switch, 4x GE SFP

Layer 2 Gigabit Access Switching for Small and Mid-Sized Networks

The Huawei S220-48T4S is a managed Layer 2 gigabit switch built for access-layer deployments. It packs 48 copper downlink ports and four fibre uplink slots into a single rack unit.

The forwarding engine moves 77 Mpps against a 104 Gbps switching capacity, backed by a 16,000-entry MAC table and 4,094 VLANs. Each copper port autonegotiates 10, 100 or 1000 Mbps and supports jumbo frames, port isolation and static link aggregation. The four SFP cages accept 1 Gbps optical or copper transceivers for riser and backbone links.

An internal AC supply runs from 100-240 V mains, so no external adapter is needed. Peak consumption reaches 43.3 W, with typical running draw near 36.15 W. Air cooling with automatic fan speed adjustment keeps noise down in occupied spaces, and the metal chassis carries a -5 °C to 50 °C operating range.

Key Features

• 48 Gigabit Copper Access Ports
  Autonegotiating 10/100/1000BASE-T interfaces connect workstations, IP handsets, access points and cameras from one device.

• Four GE SFP Uplink Slots
  1 Gbps SFP cages take optical transceivers for long fibre runs or copper modules where structured cabling already exists.

• Layer 2 Switching and VLAN Segmentation

  • 4,094 VLANs with 802.1Q tagging, voice VLAN and VLAN stacking
  • Assignment by MAC address, protocol, IP subnet, policy or physical port
  • STP, RSTP, MSTP and G.8032 ERPS ring recovery
  • Static link aggregation plus LLDP/LLDP-MED topology discovery

• QoS and Traffic Control
  Eight queues per port with DRR, SP or DRR+SP scheduling, dual-rate three-colour CAR policing, IPv4/IPv6 ACLs and IGMPv1/v2/v3 snooping.

• Access Security Controls
  802.1X and MAC authentication, AAA with RADIUS or HWTACACS, DHCP snooping, sticky MAC, port isolation and DoS, ARP and ICMP attack defence.

• Cloud and On-Premises Management
  Reach the device through the web UI, CLI over Telnet or SSHv2, SNMPv1/v2/v3, HTTPS or NETCONF/YANG cloud control in the Huawei eKit app.

• Smart Upgrade Support
  The Huawei Online Upgrade Platform pulls version paths and software automatically, shortening firmware maintenance windows.

Specifications

What’s in the Box

• S220-48T4S switch unit

• Rack mounting kit with screws

• AC power cable

• Installation guide

Why Choose the S220-48T4S

• High port density puts a full floor of desks on one rack unit, which cuts per-port cost and patch-cord runs.

• The L2 managed switch feature set covers VLAN segmentation, QoS and ACL filtering with no recurring licence charge.

• GE SFP uplink switch design joins existing fibre backbones over single-mode or multimode transceivers.

• Built-in AC power simplifies rack wiring and reduces spare-part stocking.

• Typical draw of 36.15 W lowers UPS load and heat output in small wiring closets.

• +/-7 kV common-mode surge protection and a metal chassis suit retail, school and industrial sites.
