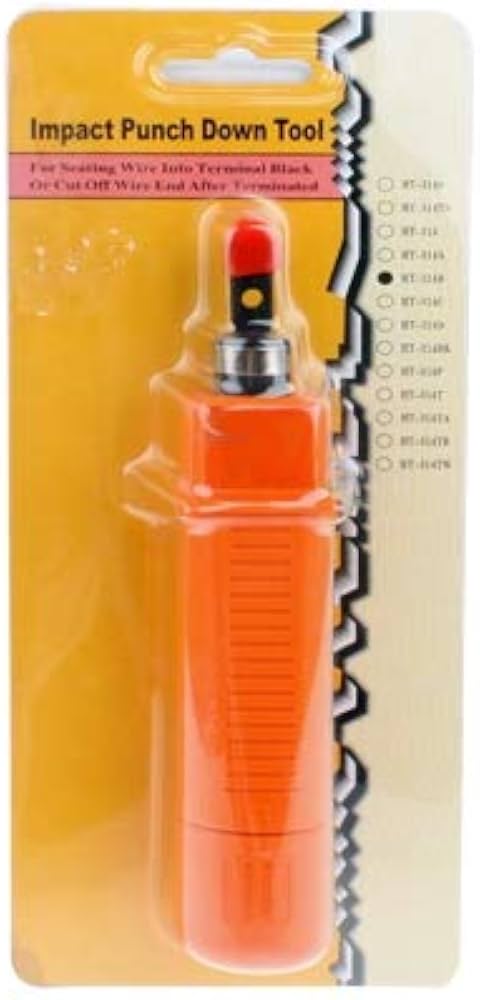

HT-324B Punch Down Tool 110/88 Impact Termination with Reversible Hardened Blade
Original price was: KSh 900.00.KSh 700.00Current price is: KSh 700.00. ex VAT
HT-324B Punch Down Tool 110/88 Impact Termination with Reversible Hardened Blade
| Tool type | Impact punch down tool |
| Terminal compatibility | 110 IDC, 88/Krone IDC |
| Blade | Reversible hardened steel, punch and punch/cut |
| Impact pressure | Adjustable, H and L settings |
| Body material | High-impact plastic |
| Overall length | Approximately 140 mm |
| Unit weight | Approximately 114 g |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
IDC Termination Hand Tool
The HT-324B Punch Down Tool seats and trims twisted-pair conductors in 110 and 88 IDC terminal blocks. A spring-loaded impact mechanism drives the blade home with repeatable force. The hardened blade reverses and swaps without tools, and a spare sits in the handle cap.
The body is moulded in high-impact plastic and measures roughly 140 mm overall. One blade end seats the wire, while the opposite end seats and cuts the excess. A rotating collar switches impact pressure between H and L settings for larger and smaller conductors.
Technicians use the tool on patch panels, keystone jacks, cross-connect blocks and modular outlets. The reversible blade covers 110 and 88/Krone contacts from a single handle. Unit weight sits near 114 g, so terminating a full 24-port panel does not fatigue the wrist.
Key Features
Spring-Loaded Impact Mechanism
The internal spring releases a controlled strike that seats the conductor without crushing the IDC contact.Reversible Hardened Blade
- One end seats the wire only
- Opposite end seats and trims the excess tail
- Blade flips in the holder without a separate tool
110 and 88/Krone Compatibility
The blade profile mates with both terminal block families used in voice and data cross-connects.Adjustable Impact Pressure
A turn collar selects the H setting for heavier conductors or the L setting for lighter gauge wire.Onboard Spare Blade Storage
The handle cap holds one square blade, so a worn edge swaps out at the panel instead of the workshop.High-Impact Plastic Housing
The moulded shell absorbs drops onto concrete floors and resists cracking at the blade collar.
Specifications
| Feature | Specification |
|---|---|
| Model | HT-324B |
| Tool type | Impact punch down tool |
| Terminal compatibility | 110 IDC, 88/Krone IDC |
| Blade configuration | Reversible, hardened steel |
| Blade functions | Punch only; punch and cut |
| Impact mechanism | Spring loaded |
| Impact pressure control | Adjustable, H and L settings |
| Pressure at H | Approximately 15 kg |
| Pressure at L | Approximately 10 kg |
| Body material | High-impact plastic |
| Overall length | Approximately 140 mm |
| Unit weight | Approximately 114 g |
| Colour | Grey |
| Spare blade storage | Handle cap, one square blade |
| Applications | Patch panels, keystone jacks, cross-connect blocks |
What’s in the Box
HT-324B impact punch down tool
Reversible 110/88 blade fitted
Spare square blade in handle cap
Why Choose HT-324B
A spring strike delivers consistent seating force across every port on a panel.
One handle covers 110 and 88 blocks, which trims the tool count in a technician bag.
The punch-and-cut end removes wire tails in the same motion as termination.
H and L pressure settings adapt the strike to different conductor gauges.
Spare blade storage keeps a replacement within reach during long cabling jobs.
Eric Wafula (verified owner) –
Blade cuts and seats cleanly on 110 blocks.
Janet Mueni (verified owner) –
Reversible blade comes in handy.
Alfred Kiprono (verified owner) –
Does the job.
Beatrice Nyambura (verified owner) –
Handle grip is okay, not slippery.
