OEM HT-324B Impact Punch Down Tool with 110/88 Blade
Original price was: KSh 900.00.KSh 700.00Current price is: KSh 700.00. ex VAT
OEM HT-324B Impact Punch Down Tool with 110/88 Blade
| Model | HT-324B |
| Blade Type | 110/88 Reversible |
| Impact Force | Adjustable Hi/Lo |
| Material | ABS & Hardened Steel |
Shipping & Delivery
Delivery
We deliver to the address you provide. Nairobi CBD is often same-day on business days.
Nairobi CBD or Kenya-wide
Free CBD ≥ KES 20,000; else from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

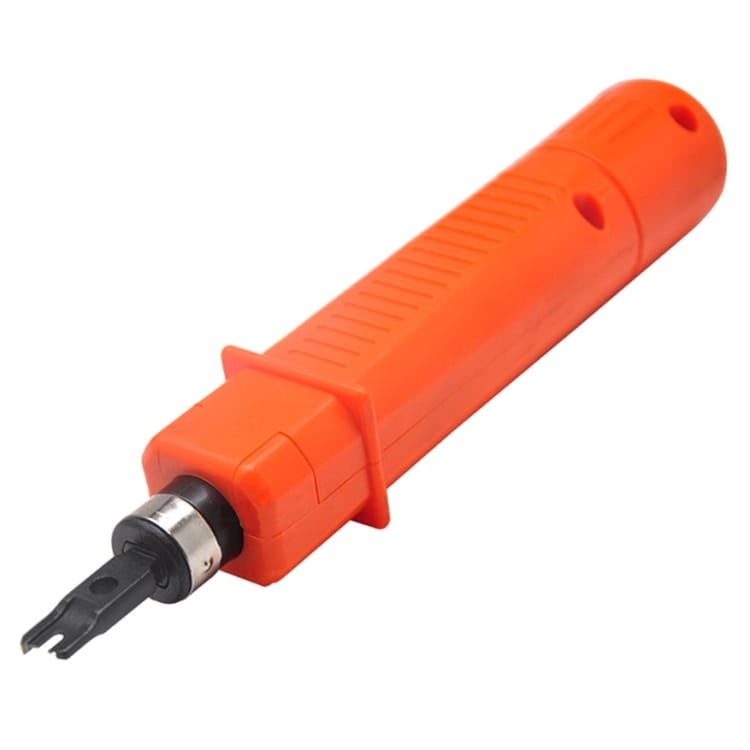

HT-324B Impact Tool
The OEM HT-324B Punch Tool provides a standardized solution for terminating twisted-pair cabling into insulation displacement connectors (IDC). This manual hardware serves as the primary interface for connecting copper conductors to 110 and 88-style wiring blocks. The device combines seating and cutting actions into a single mechanical motion to increase efficiency during large-scale network deployments. It features a robust internal spring mechanism that delivers a calibrated force to the terminal block, ensuring gas-tight connections that meet TIA/EIA standards. This specific model supports various interchangeable blades, making it a modular asset for telecommunications technicians working on voice and data circuits.
Key Features
Integrated Blade Storage
The handle features a removable rear cap that reveals a hollow compartment for securing a spare termination blade.Adjustable Impact Mechanism
- The rotary dial allows selection between 10kg and 15kg of impact pressure.
- High-impact settings accommodate larger gauge conductors or tougher block housings.
- Low-impact settings protect sensitive components in high-density environments.
- The internal spring resets automatically after every trigger event.
Modular Socket Interface
A universal twist-and-lock socket accepts standard industry blades including 66, 110, and 88 types for maximum versatility.
Specifications
| Feature | Specification |
|---|---|
| Model | HT-324B |
| Blade Type | Reversible 110/88 with Cutting Edge |
| Impact Force | Adjustable (Low: 10kg / High: 15kg) |
| Body Material | ABS Resin Polymer |
| Blade Material | Hardened Alloy Steel |
| Length | 175 mm |
| Weight | 150 g |
What’s in the Box
HT-324B Impact Tool Body
Reversible 110/88 Impact Blade
Why Choose HT-324B
Network professionals prioritize this termination instrument because it maintains mechanical integrity over extended use cycles.
The high-impact plastic housing resists cracks and chemical exposure in harsh industrial environments.
The twist-and-lock blade interface ensures the cutting bit remains seated during high-pressure termination cycles.
The reversible blade design allows technicians to switch between seating-only and seating-with-cutting functions instantly.
The tool meets standard industry requirements for Category 5e, Category 6, and Category 6A infrastructure projects.
Balanced weight distribution minimizes hand strain during repetitive termination tasks in high-density data centers.
Each strike provides tactile feedback to the operator, confirming a successful wire seat without visual inspection.
