Hikvision DS-K4H258S Single Door Magnetic Lock 280kg Holding Force
Limited Stock
Hikvision DS-K4H258S Single Door Magnetic Lock 280kg Holding Force
| Brand | Hikvision |
| Model | DS-K4H258S |
| Lock Type | Electromagnetic, single leaf |
| Holding Force | Max. 280 kg (617 lb) |
| Working Voltage | 12 VDC default; 24 VDC supported |
| Working Current | 340 mA × 2 |
| Unlock Method | Current interruption |
| Indicator | Green LED, working status |
| Lock Body Dimensions | 238 × 45 × 25 mm |
| Armature Plate Dimensions | 182 × 38 × 12.5 mm |
| Weight | 2.1 kg (4.6 lb) |
| Door Type | Single leaf; wooden, glass, metal, fireproof |
| Operating Temperature | -10 °C to 55 °C |
| Operating Humidity | 0 to 95% RH |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Value Series Electromagnetic Door Lock

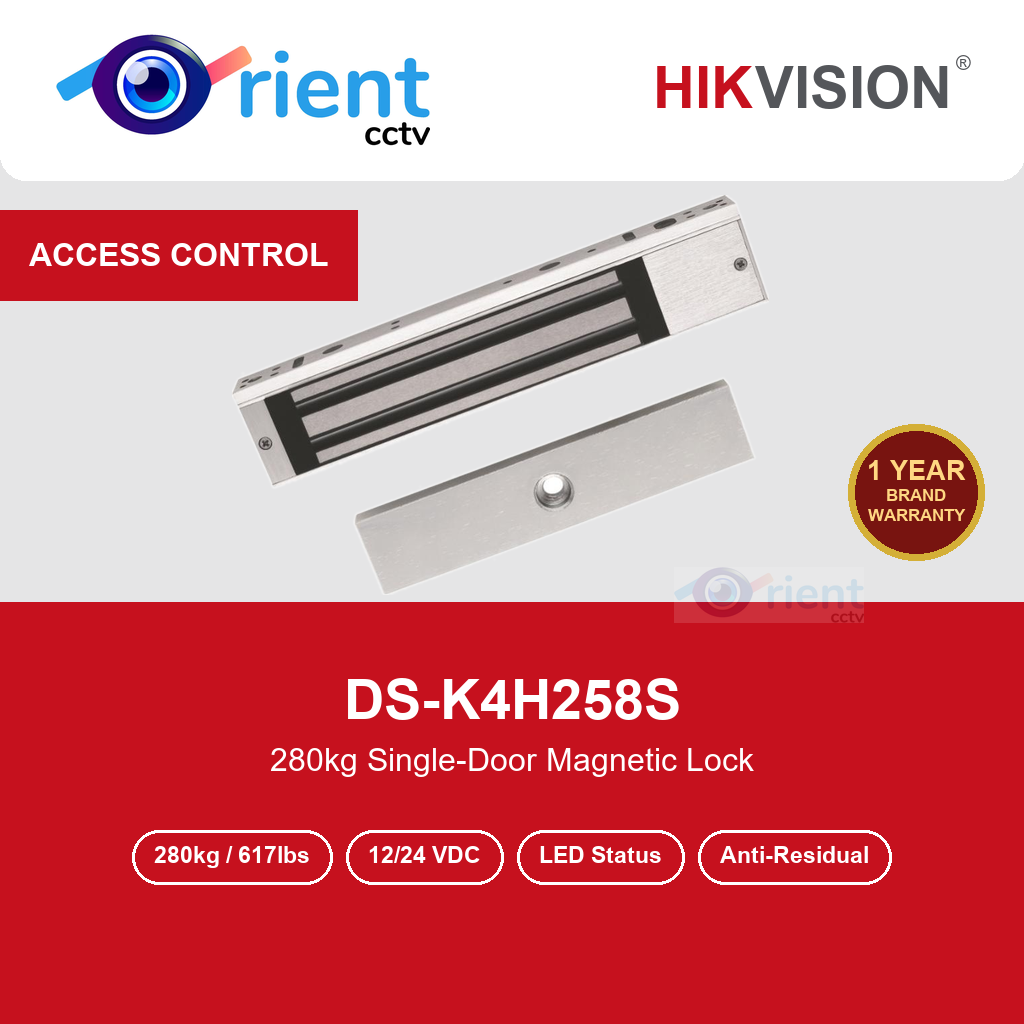

The Hikvision DS-K4H258S is a single-leaf electromagnetic lock that holds a static linear thrust of 280 kg (617 lb). Current interruption releases the armature plate, and a green LED reports lock status.
The lock body measures 238 × 45 × 25 mm and the armature plate 182 × 38 × 12.5 mm. A 12 VDC supply draws 340 mA per coil, and the unit also accepts 24 VDC input. Total weight reaches 2.1 kg.
Hard anodised aluminium forms the shell, with a nickel-plated lock body and zinc-plated armature plate. An internal MOV and anti-residual magnetism design protect the coil. The lock fits wooden, glass, metal and fireproof doors.
Key Features
280 kg Holding Force
The magnet delivers 280 kg (617 lb) of static linear thrust across the full armature contact face.Dual Voltage Input
The coil runs on 12 VDC by default and accepts 24 VDC for longer cable runs from the power supply.Electrical Specification
- 12 VDC, 340 mA × 2 coil current draw
- Fail-safe release on current interruption
- Green LED indicates working status
Anti-Residual Magnetism
A built-in circuit collapses the field at power loss so the armature releases without sticking to the body.Surge Protection
An internal metal oxide varistor clamps voltage spikes on the lock supply line.Corrosion-Resistant Finish
Hard anodising on the aldural shell, nickel electroplating on the body and zinc plating on the plate resist wear.Door Compatibility
The lock mounts on single-leaf wooden, glass, metal and fireproof doors in access-controlled openings.
Specifications
| Feature | Specification |
|---|---|
| Model | DS-K4H258S |
| Series | Value Series |
| Lock Type | Electromagnetic, single leaf |
| Holding Force | Max. 280 kg (617 lb) static linear thrust |
| Working Voltage | 12 VDC default; 24 VDC supported |
| Working Current | 340 mA × 2 |
| Unlock Method | Current interruption |
| Status Indicator | Green LED, working status |
| Lock Body Dimensions | 238 × 45 × 25 mm (9.4 × 1.8 × 1.0 in.) |
| Armature Plate Dimensions | 182 × 38 × 12.5 mm (7.2 × 1.5 × 0.5 in.) |
| Weight | 2.1 kg (4.6 lb) |
| Shell Material | Aldural, hard anodising electroplated |
| Lock Body Material | Eco-friendly nickel electroplating |
| Armature Plate Material | Eco-friendly zinc electroplating |
| Door Type | Single leaf; wooden, glass, metal, fireproof |
| Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Operating Humidity | 0 to 95% relative humidity |
| Surface Temperature | ≤ ambient +20 °C (68 °F) |
| Protection | Internal MOV, anti-residual magnetism design |
What’s in the Box
Magnetic lock body
Armature plate
Mounting hardware
Installation guide
Why Choose This Value Series Lock
The fail-safe coil releases on power loss, which suits fire egress paths.
280 kg of holding force secures standard single-leaf openings without a door strike.
The electromagnetic lock has no moving parts, so mechanical wear does not affect service life.
12 VDC and 24 VDC support lets installers match the existing access control power supply.
A 2.1 kg assembly reduces load on glass door frames and slim metal sections.
The green status LED speeds up fault finding during commissioning and maintenance.
