Hikvision DS-3E0109P-E/M(B) 8-Port 100Mbps Unmanaged PoE Switch

8-Port Fast Ethernet Unmanaged PoE Switch

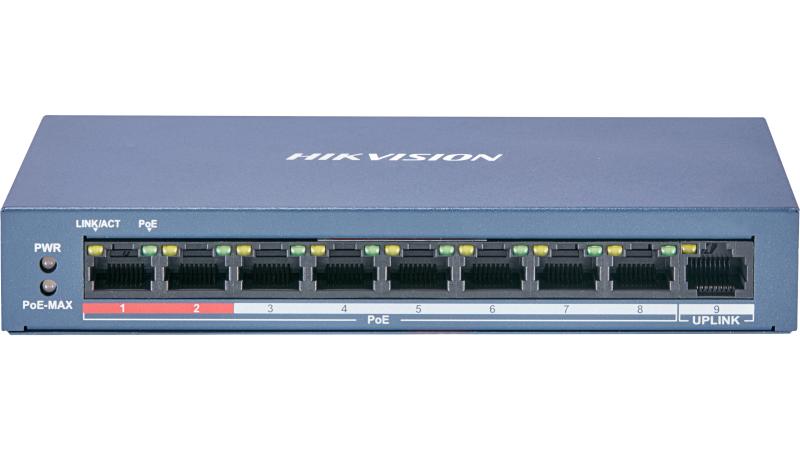

The Hikvision DS-3E0109P-E/M(B) PoE switch provides eight 10/100 Mbps PoE ports and one uplink RJ45 port for small CCTV and access-point deployments. It supplies up to 30 W per port and a total budget of 60 W. The metal chassis measures 170 × 27.6 × 93.1 mm and weighs 0.35 kg.

Intelligent PoE management cuts power to overloaded ports to protect the switch. Ports 1 to 8 support long-range transmission up to 300 m at 10 Mbps for distant cameras. A 6 KV surge protection circuit guards against lightning transients. The 1.8 Gbps switching capacity and 1.34 Mpps forwarding rate handle full-duplex traffic across all ports.

The unit accepts 48 VDC at 1.35 A and draws 65 W at maximum load. It mounts on a desk or wall and operates from 0 to 40 °C at 5% to 95% humidity. Approvals include CE, FCC, UL, CB and RCM for regulated installations. The fanless metal housing suits quiet indoor cabinets and equipment rooms.

Key Features

• Eight PoE Ports with 60 W Budget
  Each port delivers up to 30 W under IEEE 802.3af/at for cameras and access points.

• 300 m Long-Range Transmission
  Ports 1 to 8 extend reach to 300 m at 10 Mbps for distant devices.

• 6 KV Surge Protection
  Built-in protection shields the switch from lightning-induced surges on Ethernet runs.

• Intelligent PoE Management

  • Disables overloaded ports to prevent total power failure.
  • Restores power automatically after the fault clears.

• Metal Housing
  The compact 170 mm chassis mounts on a desk or wall.

• Store-and-Forward Switching
  A 2 K MAC table and 1 Mbit cache handle frame forwarding without errors.

• VIP Port Priority
  The uplink port prioritizes critical video traffic during congestion.

• IEEE 802.3af/at Compliance
  The switch powers standard PoE cameras, access points and IP phones.

• Low Idle Draw
  Power consumption drops to 5 W when no PoE devices are connected.

Specifications

What’s in the Box

• DS-3E0109P-E/M(B) switch

• Power adapter

• Quick start guide

Why Choose Hikvision DS-3E0109P-E/M(B)

• The 60 W budget powers up to four 15 W cameras or two 30 W PTZ units.

• Long-range mode removes the need for mid-span repeaters on distant runs.

• Surge protection reduces downtime in exposed outdoor cabinets.

• The unmanaged design requires no configuration before deployment.

• Metal housing and compact footprint suit tight wall-mount installations.

• Store-and-forward architecture drops corrupt frames before they reach the uplink.
