HID DigitalPersona 5200 Single Fingerprint Reader
Original price was: KSh 20,000.00.KSh 18,000.00Current price is: KSh 18,000.00.
HID DigitalPersona 5200 Single Fingerprint Reader
| Fingerprint Type | Single Finger Optical |
| Resolution | 500 ppi |
| Certification | FIPS 201 / FBI FAP 20 |
| Interface | USB 2.0 |
| Ingress Protection | IP65 Scan Window |
| Use Case | Civil ID, Enrollment, Authentication |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

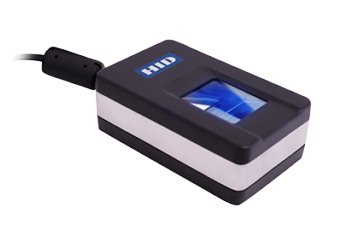

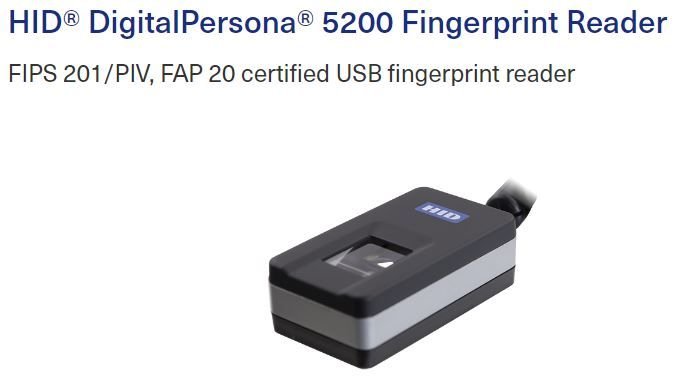

HID DigitalPersona 5200 Single Fingerprint Reader
The HID DigitalPersona 5200 Reader is a compact, high-performance optical single-finger fingerprint scanner designed to meet the stringent requirements of large-scale civil identification, government, and commercial biometric applications. Certified to both FIPS 201/PIV and FBI Mobile ID FAP 20 standards, the 5200 Reader delivers reliable, high-quality fingerprint capture for enrollment and authentication workflows.
Key Features
FIPS 201 / FBI Mobile ID FAP 20 Certified
-
Fully compliant with FIPS 201/PIV and FBI Mobile ID FAP 20 biometric standards.
-
Suitable for government ID, national enrollment, and regulated authentication systems.
High-Resolution Optical Fingerprint Capture
-
Captures fingerprints at 500 ppi resolution.
-
Produces images in ANSI and ISO/IEC standard formats.
Durable IP65-Rated Glass Platen
-
Highly resistant to chemicals, abrasion, and physical damage.
-
Designed for high-volume usage in harsh operational environments.
Compact & Portable Design
-
Small footprint supports single-finger flat capture.
-
USB-powered for easy transport and deployment.
Advanced Fingerprint Matching Compatibility
-
Works with any standards-compliant fingerprint matcher or extractor.
-
Optimized for use with DigitalPersona Biometric SDK v3.1 or later.
Specifications
| Feature | Specification |
|---|---|
| Product Name | HID DigitalPersona 5200 Reader |
| Part Number | 50025-001-101 |
| Capture Mode | Single Finger Flat |
| Dimensions | 80 × 45 × 26.2 mm (±0.5 mm) |
| Weight | 195 g |
| Scan Area | 20.3 × 15.2 mm (0.8” × 0.6”) |
| Image Resolution | 500 ppi |
| Image Mode | Raw (Uncompressed), WSQ Compressed |
| Scan Data | 8-bit Grayscale (256 levels) |
| Interface | USB 2.0 High Speed |
| Cable Length | 6 ft (182.9 cm) |
| Ingress Protection | IP64 (device), IP65 (scan window) |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -20°C to 55°C |
| Operating Humidity | 0–90% non-condensing |
| Power Supply Voltage | 5.0V ±5% |
| Power Consumption (Scan) | <150 mA (typical) |
| Power Consumption (Idle) | <40 mA (typical) |
| Power Consumption (Suspend) | <0.5 mA (max) |
| Supported OS | Windows, Linux, Android |
| Standards Compliance | RoHS, REACH, FCC, UL, USB, WEEE, CE |
| Biometric Certification | FIPS 201 PIV, FBI Mobile ID FAP 20 |
| SDK Support | DigitalPersona Biometric SDK v3.1+ |
What’s in the Box
-
1 × HID DigitalPersona 5200 Fingerprint Reader
-
Integrated USB-A cable (6 ft)
-
Product documentation
Why Choose HID DigitalPersona 5200 Reader
-
Certified for government and national ID programs
-
High-accuracy capture for difficult fingerprints
-
Durable construction for harsh and high-traffic environments
-
Compact, USB-powered design for fixed or mobile deployments
-
Seamless integration with DigitalPersona biometric solutions
-
Proven reliability for large-scale enrollment and authentication systems
