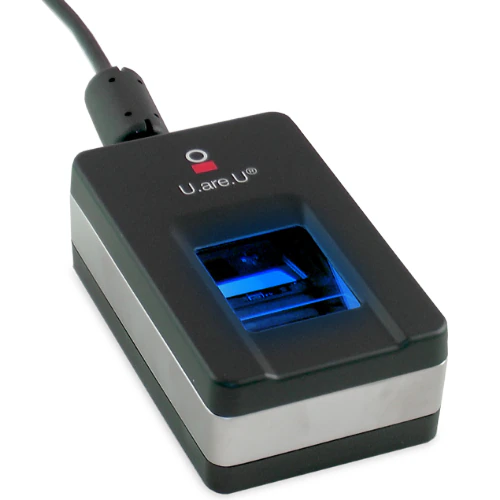

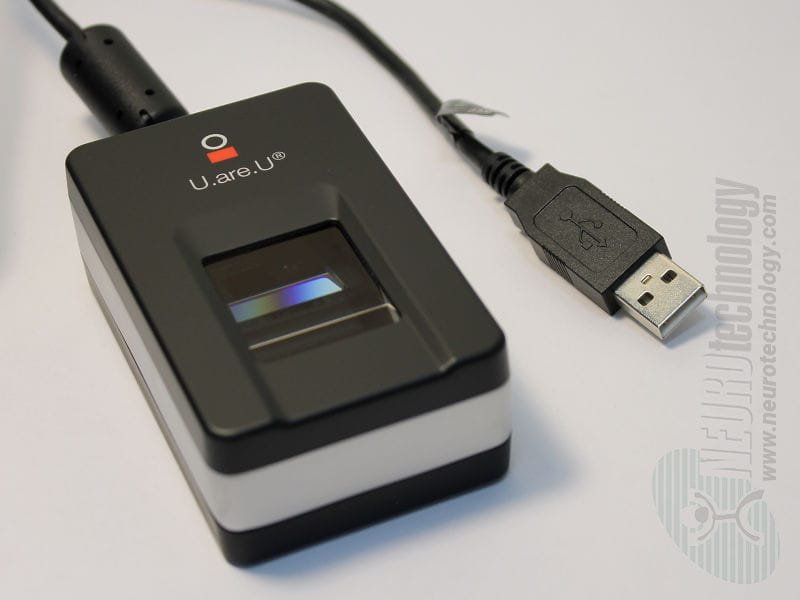

HID Digital Persona 5300 Fingerprint Module
Original price was: KSh 20,000.00.KSh 17,000.00Current price is: KSh 17,000.00.
HID Digital Persona 5300 Fingerprint Module
| Fingerprint Type | Optical Single Finger Module |
| Resolution | 500 dpi |
| Certification | FIPS 201 / FBI FAP 30 |
| Capture Area | 20.32 × 25.4 mm |
| Interface | USB 2.0 |
| Ingress Protection | IP64 |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
HID Digital Persona 5300 Fingerprint Module
The HID Digital Persona 5300 Fingerprint Module is a compact, embedded optical fingerprint scanning module engineered for OEM integration in secure identity verification systems. Certified to FIPS 201/PIV and FBI Mobile ID FAP 30 standards, the module delivers high-accuracy biometric capture suitable for civil ID programs, voting systems, healthcare enrollment, microfinance authentication, and mobile ID terminals.
Key Features
FIPS 201 / FBI Mobile ID FAP 30 Certified
-
Fully compliant with government-grade biometric standards.
-
Suitable for national ID, voter registration, and entitlement systems.
High-Resolution Optical Fingerprint Capture
-
Produces 500 dpi images for precise enrollment and verification.
-
Supports ANSI and ISO/IEC standard fingerprint formats.
Compact OEM-Optimized Design
-
Small, lightweight module simplifies embedded system integration.
-
Designed for fixed installations and portable biometric terminals.
Durable IP64-Sealed Glass Imaging Window
-
Resistant to dust, moisture, chemicals, and abrasion.
-
Reliable operation in harsh and high-traffic environments.
Live Finger Detection (LFD) Support
-
Configurable via DigitalPersona Biometric SDK.
-
Enhances security by reducing spoofing risks.
Broad SDK & Matcher Compatibility
-
Works with standards-compliant fingerprint extractors and matchers.
-
Optimized for DigitalPersona® FingerJet™ Biometric Engine.
-
Compatible with the full range of DigitalPersona SDKs.
Specifications
| Feature | Specification |
|---|---|
| Product Name | HID DigitalPersona® 5300 Module |
| Fingerprint Type | Optical Single Finger (Module) |
| Dimensions | 67 × 41 × 27 mm (Approx.) |
| Weight | 60 g |
| Scan Capture Area | 20.32 × 25.4 mm |
| Pixel Resolution | 500 dpi |
| Image Mode | Raw (Uncompressed), WSQ Compressed |
| Scan Data | 8-bit Grayscale |
| Live Finger Detection | Configurable via DigitalPersona SDK |
| Interface | USB 2.0 High Speed |
| Supply Voltage | 5.0V ±5% (USB) |
| Power Consumption (Scanning) | <150 mA (Typical) |
| Power Consumption (Idle) | <40 mA (Typical) |
| Power Consumption (Suspend) | <0.5 mA (Maximum) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 55°C |
| Operating Humidity | 0–90% non-condensing |
| Storage Humidity | 0–90% non-condensing |
| Ingress Protection | IP64 (Seal between top case and glass window) |
| ESD Protection | EN61000-4-2: ±4kV Contact, ±8kV Air |
| Standards Compliance | FIPS 201 PIV, FBI Mobile ID FAP 30, RoHS, REACH, FCC, UL, USB, WEEE, CE, ICES, BSMI, BSI |
What’s in the Box
-
1 × HID DigitalPersona® 5300 Fingerprint Module
-
Integrated USB interface
-
OEM integration documentation
Why Choose HID DigitalPersona® 5300 Module
-
FAP 30 certification for high-security biometric deployments
-
Compact size ideal for OEM and embedded device integration
-
Durable design suitable for field and mobile applications
-
Accurate fingerprint capture for difficult and worn fingerprints
-
Seamless compatibility with DigitalPersona SDKs and FingerJet™ Engine
-
Trusted HID Global solution for civil, healthcare, and financial identity systems
