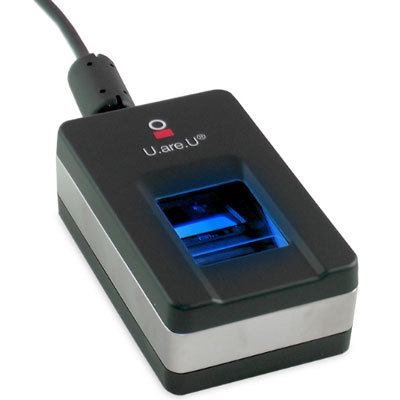

HID Digital Persona 5300 Single Fingerprint Reader
Original price was: KSh 28,000.00.KSh 23,000.00Current price is: KSh 23,000.00.
HID DigitalPersona 5300 Single Fingerprint Reader
| Fingerprint Type | Optical Single Finger |
| Resolution | 500 dpi |
| Certification | FIPS 201 / FBI FAP 30 |
| Capture Area | 20.32 × 25.4 mm |
| Interface | USB 2.0 |
| Ingress Protection | IP64 (Top Surface) |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
HID Digital Persona 5300 Single Fingerprint Reader
The HID Digital Persona 5300 Single Fingerprint Reader is a high-performance optical single-fingerprint scanner engineered to meet the demanding requirements of large-scale civil identification, government, and commercial biometric enrollment systems. Certified to FIPS 201/PIV and FBI Mobile ID FAP 30 standards, the 5300 Reader delivers reliable, high-quality fingerprint capture suitable for regulated identity programs and enterprise-grade authentication environments.
Key Features
FIPS 201 / FBI Mobile ID FAP 30 Certified
-
Fully compliant with FIPS 201/PIV and FBI Mobile ID FAP 30 standards.
-
Suitable for national ID programs, border control, and secure enterprise authentication.
High-Resolution Optical Fingerprint Imaging
-
Captures fingerprints at 500 dpi resolution.
-
Outputs images in ANSI and ISO/IEC standard formats.
Durable IP64-Rated Glass Platen
-
Resistant to chemicals, scratches, and physical wear.
-
Designed for continuous, high-volume usage.
Advanced Onboard Electronics
-
Automatic calibration and data transfer control.
-
Ensures consistent image quality across environments.
Live Finger Detection (LFD) Support
-
Configurable via DigitalPersona Biometric SDK.
-
Enhances security by preventing spoofing attacks.
Broad Matcher & SDK Compatibility
-
Works with standards-compliant fingerprint extractors and matchers.
-
Optimized for use with DigitalPersona FingerJet™ Biometric Engine.
Specifications
| Feature | Specification |
|---|---|
| Product Name | HID DigitalPersona® 5300 Reader |
| Fingerprint Type | Optical Single Finger |
| Dimensions | 86 × 53 × 31 mm (±0.5 mm) |
| Weight | 245 g |
| Scan Capture Area | 20.32 × 25.4 mm |
| Pixel Resolution | 500 dpi |
| Image Mode | Raw (Uncompressed), WSQ Compressed |
| Scan Data | 8-bit Grayscale (256 gray levels) |
| Live Finger Detection | Configurable via DigitalPersona SDK |
| Interface | USB 2.0 High Speed |
| Top Surface Protection | IP64-rated seal between glass and top case |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -20°C to 55°C |
| Operating Humidity | 0–90% non-condensing |
| Storage Humidity | 0–90% non-condensing |
| Power Supply Voltage | 5.0V ±5% |
| Power Consumption (Scanning) | <150 mA (Typical) |
| Power Consumption (Idle) | <40 mA (Typical) |
| Power Consumption (Suspend) | <0.5 mA (Max) |
| ESD Protection | IEC 61000-4-2 Level 3 |
| Standards Compliance | FIPS 201 PIV, FBI Mobile ID FAP 30, RoHS, UL, USB, WEEE, FCC, CE |
What’s in the Box
-
1 × HID DigitalPersona® 5300 Fingerprint Reader
-
Integrated USB interface
-
Product documentation
Why Choose HID DigitalPersona® 5300 Reader
-
FAP 30 certification for high-security biometric applications
-
Large capture area improves enrollment success rates
-
Accurate authentication for difficult or worn fingerprints
-
Durable construction for harsh operational environments
-
Seamless integration with DigitalPersona biometric software ecosystem
-
Ideal for civil ID, border management, and enterprise enrollment systems
