Front Runner FSLI001 Cargo Slide / Fridge Slide 80L–90L, 920 x 580 mm Steel Tray

Slide-Out Tray for Vehicle Fridges and Heavy Gear

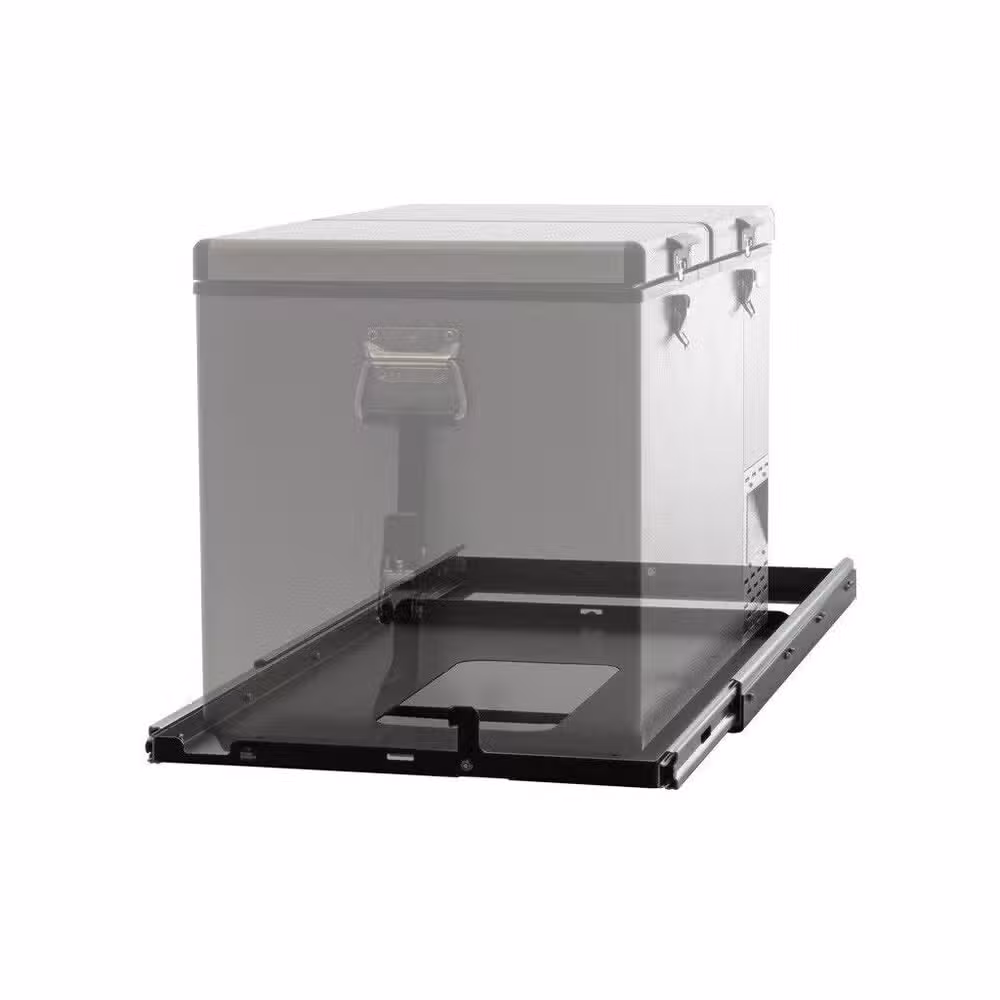

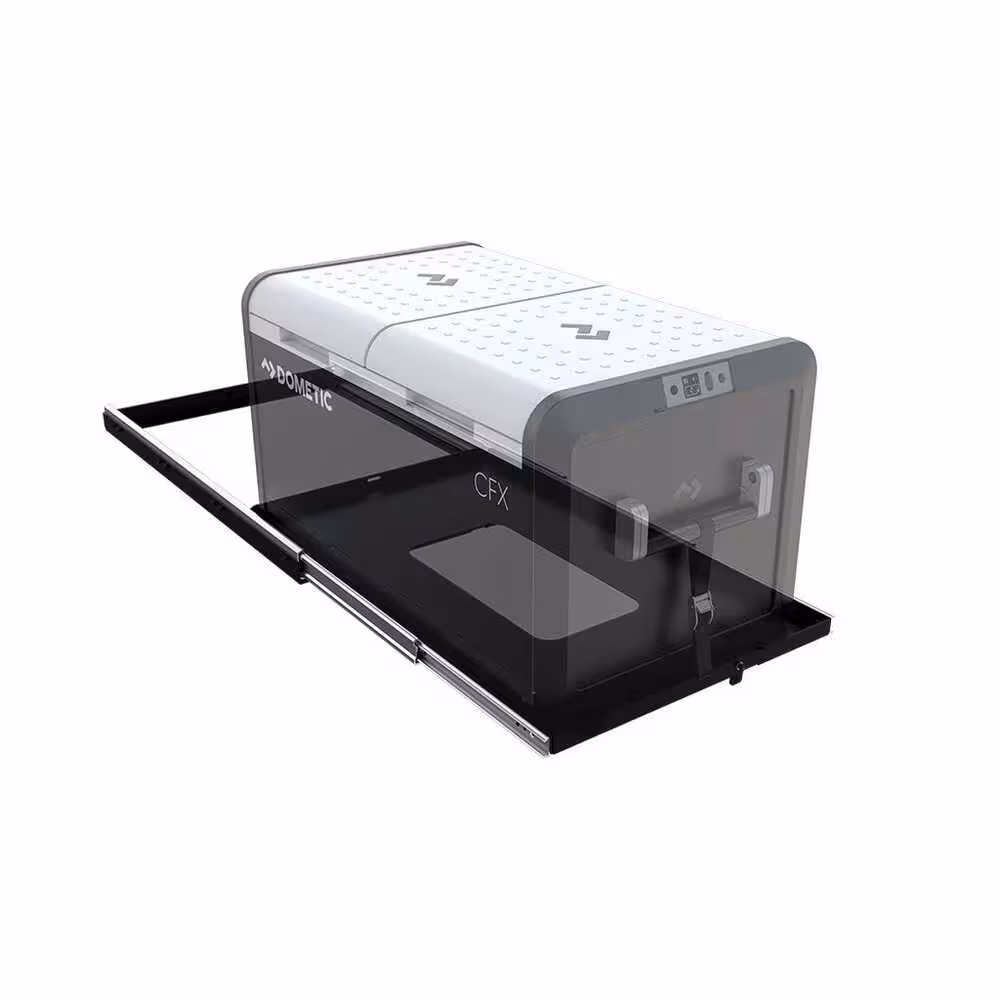

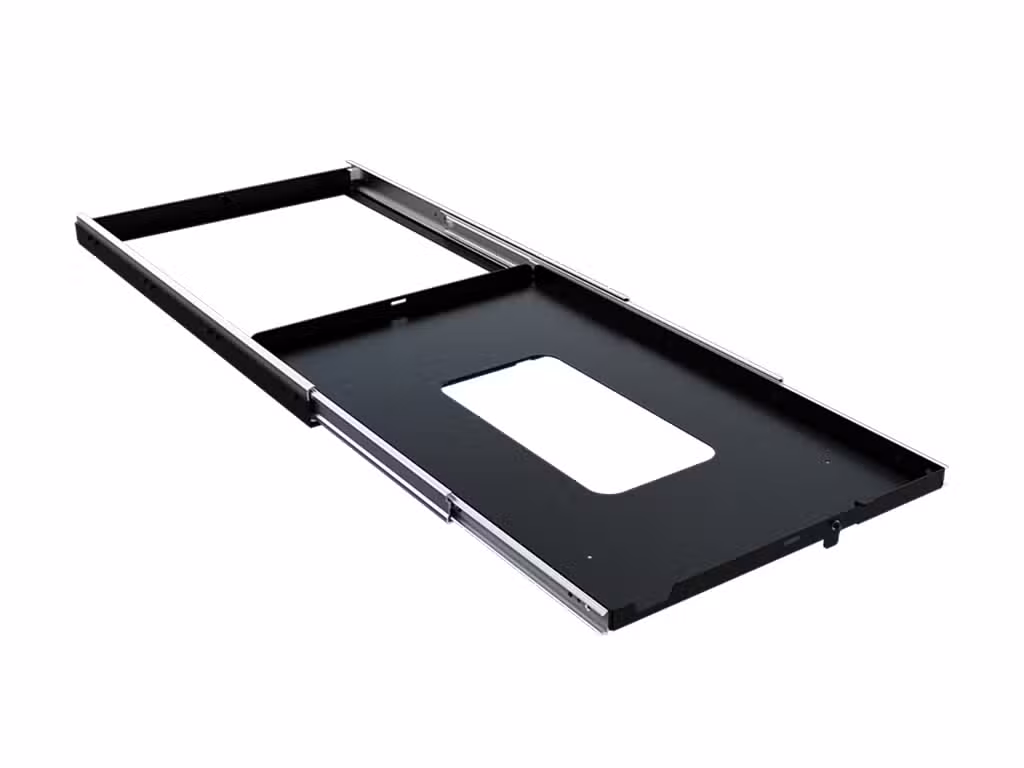

The Front Runner cargo slide is a 920 mm steel tray that extends almost fully from its anchored base. It carries an 80 L to 90 L fridge or other heavy gear at a 100 kg load rating. Four predrilled mounting holes fix the base to any flat surface.

Closed dimensions measure 920 x 580 x 65 mm, and the tray opens to 1830 mm. The internal well measures 875 x 510 x 35 mm, which clears the feet of most 80 L and 90 L compressor fridges. The body uses 1.8 mm black powder-coated steel and weighs 16.7 kg.

High-strength bearing drawer slides take the load through the full travel. A swivel latch locks the tray closed and releases with one hand. The design keeps the platform rattle-free when stowed, so the tray does not chatter over corrugated gravel. Mounting hardware for wood and metal surfaces ships in the kit.

The base bolts to drawer systems, pickup load bins, trailer floors and canopy decks. Remove the fridge before drilling, and check that the slide clears the tailgate or canopy door through its full travel. Re-torque the mounting bolts after the first long trip.

Key Features

• 1.8 mm Powder-Coated Steel
  The folded steel body carries a 100 kg load rating and resists road spray and dust.

• Near-Full Extension
  Bearing slides push the tray to 1830 mm, which exposes the full fridge lid and basket.

• Rattle-Free Closed Position
  The latch geometry holds the tray against its stops when stowed on rough roads.

• Swivel Latch

  • Locks the tray in the closed position.
  • Releases with a single hand movement.
  • L-Bracket latch supplied in the kit.
  • Bolt kit included for the latch assembly.

• Predrilled Mounting Holes
  The base ships with mounting holes drilled for wood and metal surfaces.

• 65 mm Closed Profile
  The low tray height preserves cargo space above the fridge.

Specifications

What’s in the Box

• 1x fridge slide tray

• 1x L-bracket latch

• Bolt kit

• Mounting hardware for wood and metal surfaces

Why Choose the FSLI001

• The slide-out fridge tray brings an 80 L or 90 L fridge to the tailgate without lifting.

• Bearing runners carry 100 kg through the full extension.

• The low 65 mm profile keeps clearance above the fridge for other cargo.

• A swivel latch and rattle-free stow suit corrugated gravel travel.

• Predrilled holes and supplied bolts simplify fitting to drawer systems.

• The steel platform doubles as a tray for toolboxes and recovery gear.
