Front Runner 105Ah Battery Bracket BBTL001 – Toyota Land Cruiser 76 4.2 Diesel, Right-Hand Drive

Auxiliary Battery Mounting Bracket for Land Cruiser 76

The 105Ah Battery Bracket BBTL001 secures a 105Ah auxiliary battery in the engine bay of a Toyota Land Cruiser 76 4.2 diesel station wagon. It holds the second battery clear of the factory loom and steering components. The bracket is cut for right-hand-drive vehicles only.

Front Runner fabricates the bracket from high-strength steel and finishes it in black powder coat. The coating resists engine-bay heat, road salt and battery acid mist. Slotted mounting points align with the factory chassis holes on the 76 series, so the installer does not drill the body. The cradle wraps the battery base and clamps it with J bolts.

A 105Ah lead-acid or AGM battery is heavy, so the bracket spreads load across the inner guard rather than a single bolt point. The J bolts pass through the cradle lip and tighten against the battery case without crushing the plastic. This arrangement keeps the pack fixed over corrugations, washboard gravel and steep descents.

Installation follows the standard engine-bay sequence: isolate the main battery, remove the factory tray fasteners where applicable, position the bracket, torque the mounting bolts and then seat the auxiliary battery. Route the auxiliary cabling clear of the exhaust manifold and any rotating pulley. Recheck the J-bolt tension after the first 500 km of travel.

Key Features

• Vehicle-Specific Fitment
  The bracket aligns with factory mounting points on the Land Cruiser 76 4.2 diesel station wagon without body drilling.

• 105Ah Battery Cradle
  The cradle accepts a 105Ah auxiliary battery and clamps it with J bolts through the base lip.

• Right-Hand-Drive Only
  The bracket is cut for right-hand-drive vehicles and will not fit left-hand-drive engine bays.

• High-Strength Steel Construction

  • Black powder-coated high-strength steel
  • Resists engine-bay heat and corrosion
  • Spreads battery load across the inner guard
  • Slotted holes allow minor alignment adjustment

• Complete Fitment Hardware
  The kit ships with J bolts and mounting hardware for the auxiliary battery installation.

• Serviceable Installation
  The bracket removes with hand tools, which keeps access open for later electrical work.

• Overland System Compatibility
  The bracket sits within the Front Runner accessory range alongside roof racks, drawers and water tanks.

Specifications

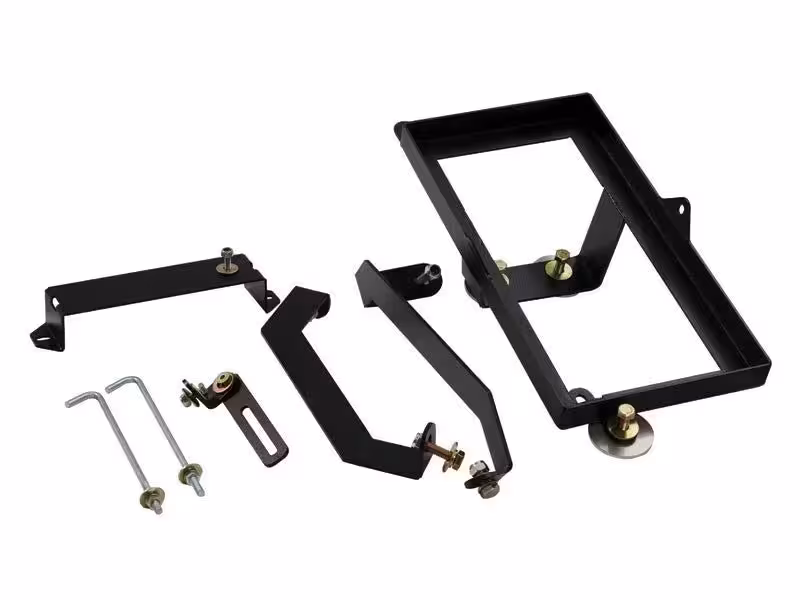

What’s in the Box

• Auxiliary battery bracket BBTL001

• J bolt set

• Installation hardware

• Fitting instructions

Why Choose This Battery Bracket

• The cradle holds a heavy auxiliary battery on corrugated roads without movement.

• Factory mounting points remove the need to drill the inner guard.

• Powder-coated steel resists heat and corrosion in the engine bay.

• J-bolt retention spreads clamping force across the battery base.

• The right-hand-drive cut avoids contact with steering and brake hardware.

• The bracket fits within the wider Front Runner overland accessory system.
