Fanvil A12V Video Intercom IP66 IK10

Outdoor SIP Video Door Station

The Fanvil A12V is an outdoor SIP video intercom (door station) with a 4MP camera, IP66 weather rating, and IK10 impact rating. RFID access, two SIP accounts, IR for night calls, and a loud speaker are typical of this class. Power is PoE+; do not feed it from a 15 W 802.3af port if the datasheet requires at. Mount it on a gate post or wall box with the correct rain hood if Fanvil offers one. Pair it with an indoor IP phone, Fanvil indoor monitor, or an IP PBX such as Grandstream UCM.

Additionally, SIP means the station is a phone endpoint, not a proprietary-only kit. Therefore it can call a hunt group or a mobile via the PBX. However, unlock relays still need a lock power supply and correct NO/NC wiring. Consequently, treat the A12V as the station and budget the maglock separately. IK10 helps against vandalism; it does not replace a proper gate frame and tamper switch.

Key Features

• 4MP camera with IR
  Video preview and recording depend on the indoor client or NVR/PBX path.

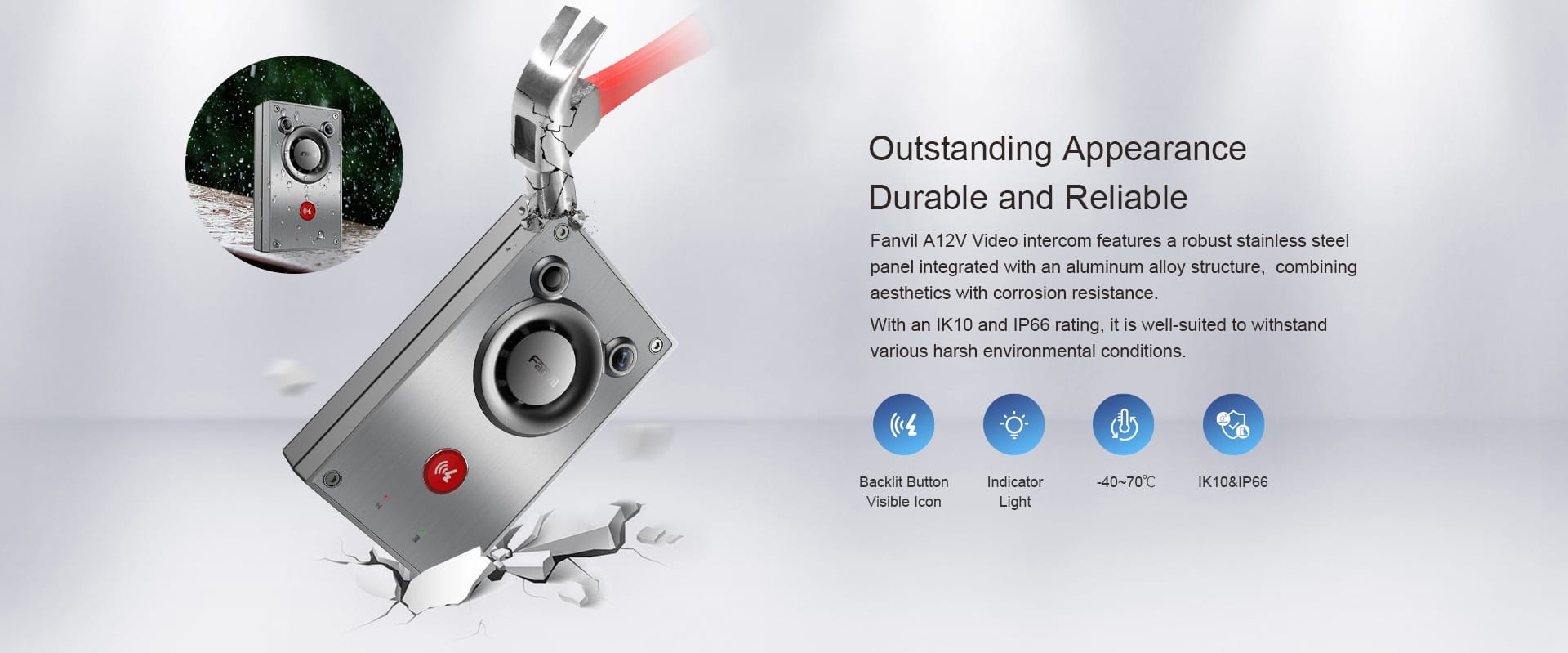

• IP66 / IK10 housing

  • Weather and impact ratings for outdoor gates.
  • Gland the Ethernet drop; do not leave an open RJ45 in the rain.

• SIP door phone
  Two SIP accounts typical; registers to a standard IP PBX.

• RFID
  Card/fob unlock when the access module is enabled in firmware.

• PoE+
  Plus a 10 W-class speaker as quoted for this SKU.

Specifications

What’s in the Box

• A12V door station

• Mounting hardware as packed

• Documentation

Indoor monitor, lock, and PoE switch are separate.

Why Choose This Door Station

• Outdoor ratings suitable for Kenyan gate installs.

• SIP registration against an existing IP PBX.

• 4MP video for visitor identification.

• RFID for staff access on the same plate.

Additionally, use outdoor-rated Cat6 and a surge device on long runs. Therefore do not share the lock PSU with the PoE switch earth in a messy way. However, test the relay current against the maglock coil. Consequently, add a separate lock controller if the station relay is dry-contact only. Change default passwords before the station hits a customer VLAN. The SC-BC01 demo case can show the call path before you mount this SKU on the gate.
