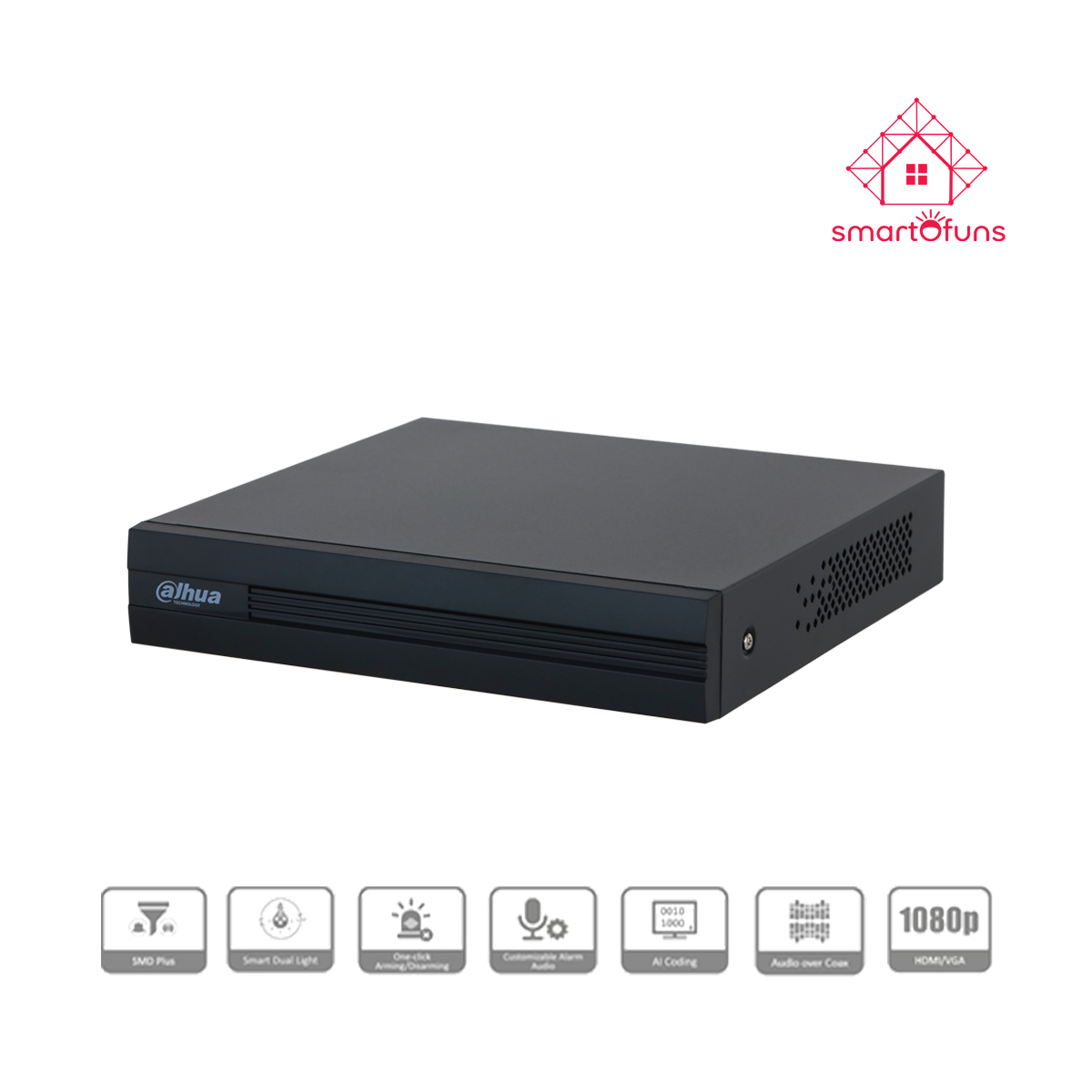

Dahua XVR1B04 4-Channel 2MP FHD HDCVI XVR Recorder

Dahua 4-Channel 2MP XVR

The Dahua XVR1B04 4-Channel XVR records up to four analog cameras at 2MP Full HD over coaxial BNC inputs. It accepts HDCVI, AHD, TVI, and CVBS signals so mixed legacy and current camera fleets can share one recorder. A single SATA bay supports hard drives up to 6TB for local retention without external NAS dependency.

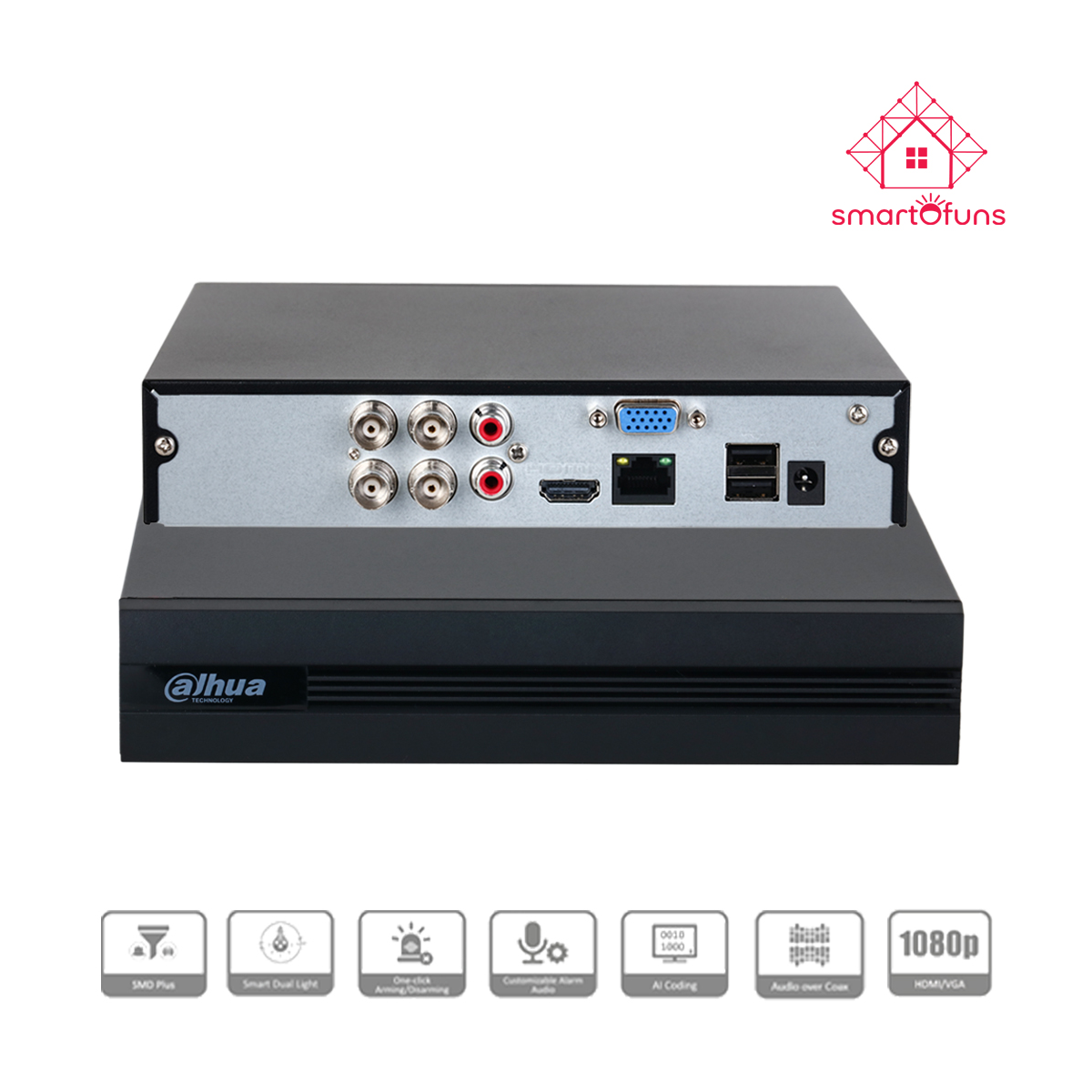

HDMI and VGA outputs drive a local monitor for live view and playback. One RJ45 port provides IP access for remote configuration and mobile client streaming. Two USB ports support backup to flash media or connection of a USB mouse during bench setup. Two-way audio is supported on compatible camera channels when wired with audio-enabled coax or separate audio leads.

Each BNC input auto-detects the incoming protocol at connect time. Technicians can replace one camera at a time during upgrades without reconfiguring the entire recorder. HDCVI mode carries HD video and audio on the same coax when cameras support embedded sound. CVBS mode preserves compatibility with older standard-definition bullet and dome units still on site.

Recording schedules support continuous, motion, and alarm-triggered modes per channel. Bitrate settings trade storage duration against image quality on the internal SATA drive. Six terabyte capacity supports multi-week retention on four 2MP streams at moderate compression. Surveillance-grade HDDs are recommended for 24/7 write workloads.

Remote access over Ethernet enables live matrix view, timeline search, and clip export without a local operator present. Mobile clients connect through Dahua cloud or direct IP depending on network policy. Firmware updates apply through the web interface to patch security and codec improvements across deployed fleets.

Key Features

• Four BNC Analog Inputs
  Each channel records 2MP video from HDCVI, AHD, TVI, or CVBS cameras on one coax run per camera.

• Multi-Protocol Coax Support

  • HDCVI for long-distance HD over existing coax
  • AHD, TVI, and CVBS for legacy camera compatibility
  • Per-channel auto-detection at camera connect

• 6TB Local Storage
  One internal SATA interface accepts surveillance-grade HDDs up to 6TB capacity.

• Dual Local Display Outputs
  HDMI and VGA connectors support simultaneous connection of operator monitor and auxiliary display.

• Network Remote Access
  RJ45 Ethernet enables configuration, live view, and playback from Dahua client software.

• Two-Way Audio on Supported Channels
  Bidirectional sound works with audio-capable HDCVI cameras and proper coax wiring.

Specifications

What’s in the Box

• XVR1B04-I/T 4-channel XVR unit

• Power adapter

• USB mouse

• Quick installation guide

Why Choose Dahua 4-Channel XVR

• Four-channel density suits small retail and residential coax retrofits.

• Multi-protocol BNC inputs avoid wholesale camera replacement during upgrades.

• 6TB ceiling meets moderate retention targets on a single drive.

• HDMI and VGA outputs cover common installer monitor inventories.

• Compact channel count reduces cost on sites with four or fewer cameras.
