Western Digital WD Purple 6TB Surveillance Hard Drive

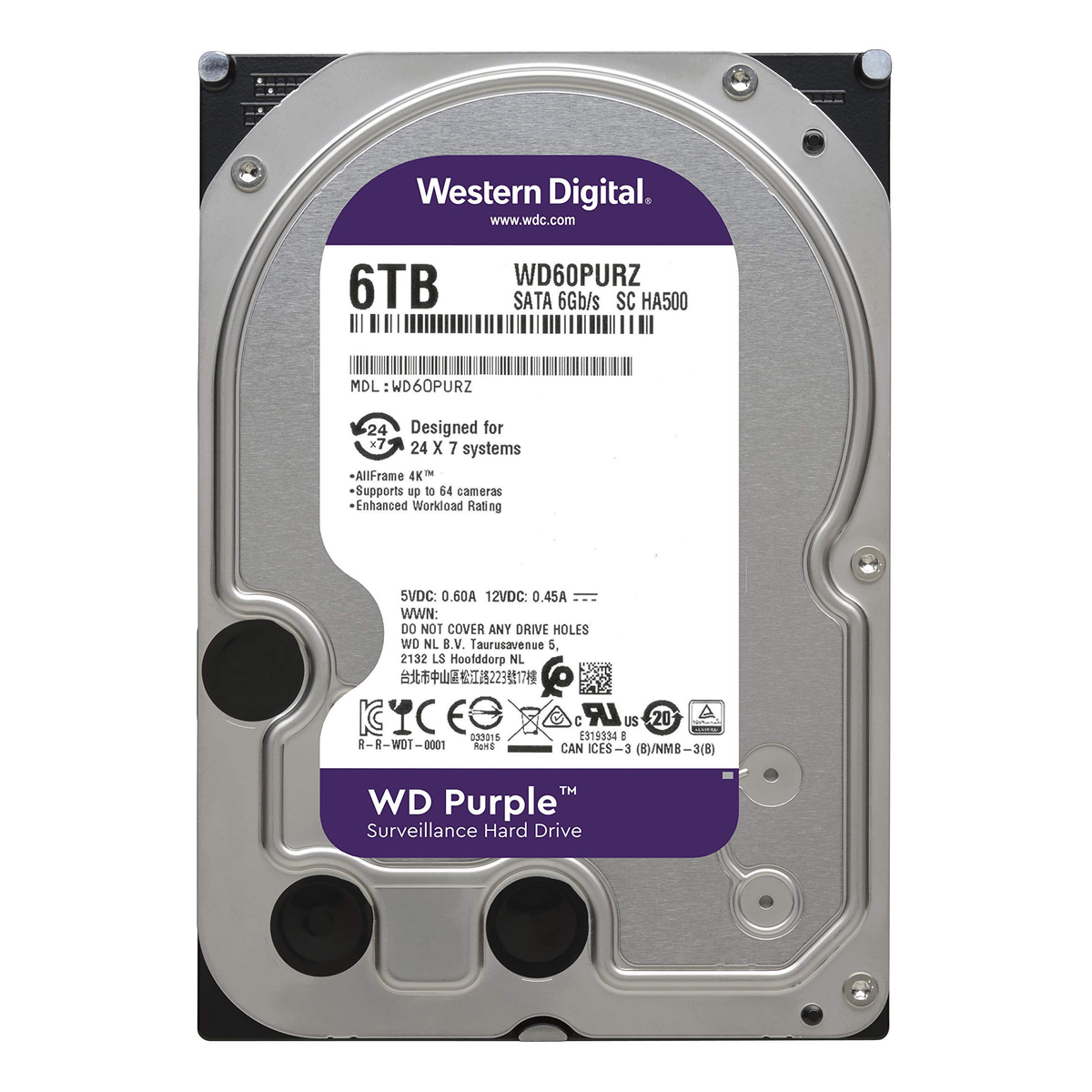

WD Purple 6TB Surveillance Drive

The Western Digital Purple 6TB targets multi-camera security systems that record around the clock. This 3.5-inch unit connects over SATA 6 Gb/s and ships with firmware tuned for continuous video ingest. Network engineers specify it for DVR and NVR builds when retention windows cover weeks of HD streams.

Surveillance workloads differ from desktop use. Video writes arrive as large sequential blocks with periodic read access during playback review. Purple drives apply caching and error recovery aligned to those patterns. The design supports stable recording under 24/7 duty cycles without the early wear seen on general-purpose disks.

Each stream adds sustained write pressure inside shared arrays. Controllers multiplex camera feeds into one or more recording volumes. A six-terabyte spindle increases headroom before operators rotate footage to archive tiers. That capacity supports mid-size sites with mixed 1080p and 4K channels on one recorder.

Key Features

• AllFrame Firmware
  AllFrame reduces dropped frames when recorders mix resolutions and codec types on one volume.

• Surveillance Workload Rating
  The drive supports up to 180 TB per year of transferred data across supported camera counts.

• Quiet IntelliPower Operation

  • 5400 RPM class spindle speed balances power draw and heat in sealed NVR chassis.
  • Lower acoustic output suits rack-adjacent office, retail, and clinic deployments.

• SATA III Host Interface
  6 Gb/s SATA provides broad compatibility with mainstream surveillance controller boards.

• Recording Cache Buffer
  On-board cache absorbs burst writes when motion events spike parallel camera streams.

• TLER Error Recovery
  Time-limited error recovery helps RAID controllers rebuild arrays without hanging on bad sectors.

Specifications

What’s in the Box

• WD Purple six-terabyte surveillance hard drive (bare drive)

• Printed quick install guide

Why Choose WD Purple 6TB

• Firmware and endurance ratings match continuous camera recording instead of intermittent desktop access.

• SATA connectivity fits standard surveillance backplanes without proprietary bridge hardware.

• Six terabytes extends retention before archive rotation or off-site replication.

• The Purple line is validated for multi-bay NVR shelves common in commercial installs.

• CMR recording avoids write-amplification penalties that complicate always-on video arrays.

Procurement teams should confirm recorder compatibility before bulk orders. Verify bay count, maximum supported capacity, and firmware requirements on the NVR vendor matrix. Pair each unit with adequate intake airflow inside metal enclosures to hold rated reliability.

Field engineers benefit from labeling each bay with serial numbers during rack builds. That practice speeds RMA workflows when one stream shows recurring checksum faults. Document camera counts per array so future expansion stays within published workload limits.

Desktop-class disks may feel faster on boot tests but wear quickly under parallel HD streams. Purple firmware prioritizes sustained writes and tolerates vibration from adjacent spindles. For hybrid sites, dedicate Purple arrays to primary recording and tier cold archives on separate media.

Power supplies in compact NVR cases must deliver stable 12 V rails under simultaneous spin-up. Use manufacturer cable routing to preserve SATA signal integrity across long internal runs. Monitor SMART attributes during commissioning to catch early reallocated sectors before production recording starts.
