D-Link switch DGS-F1010P-E 10-Port Gigabit PoE with 8 PoE Ports and 2 Uplink Ports

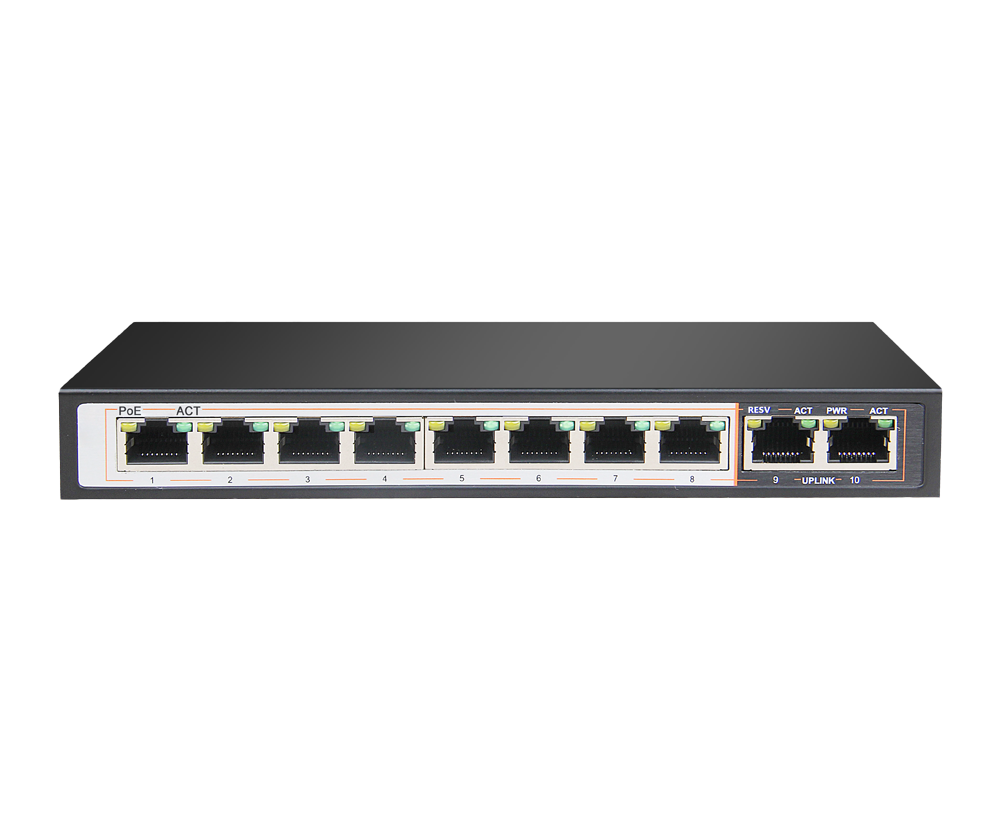

D-Link DGS-F1010P-E Switch

The D-Link Gigabit PoE Switch provides a robust hardware platform for deploying power-over-ethernet devices across a localized network infrastructure. This unit integrates eight 10/100/1000 Mbps ports with PoE capabilities alongside two dedicated Gigabit uplink ports for high-speed connectivity to routers or servers. It utilizes a fanless design to ensure silent operation within professional office environments. Additionally, the device supports the IEEE 802.3af and IEEE 802.3at protocols. Therefore, it can deliver up to 30 watts per port until the total power budget is reached. The internal architecture facilitates wire-speed switching to maintain low latency across all connected nodes. Consequently, network congestion is minimized during high-bandwidth operations like video surveillance streaming or large file transfers.

Key Features

• Extended Range Connectivity
  The hardware supports a specialized long-range mode allowing power and data transmission to reach distances up to 250 meters at 10Mbps.

• Intelligent Power Management

  • Auto-detection of PoE requirements for connected PDs
  • Circuit protection to prevent power interference
  • Prioritization of critical ports during power overloads

• Enhanced Surge Protection
  The system includes 6KV lightning protection on all ports to prevent damage from electrical surges during atmospheric disturbances.

Specifications

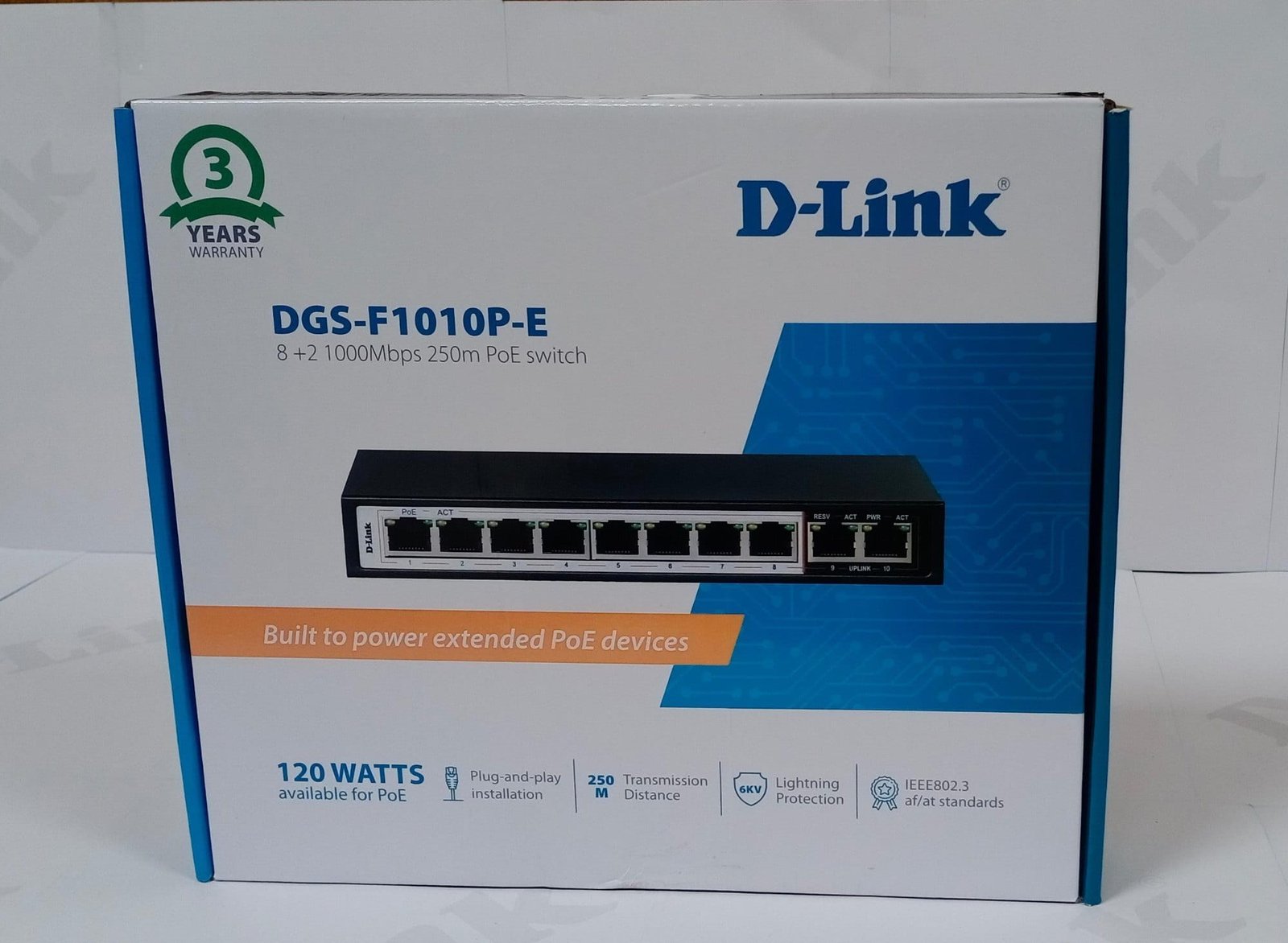

What’s in the Box

• D-Link DGS-F1010P-E Switch
• External Power Adapter
• Quick Installation Guide
• Rubber Feet for Desktop Mounting

Why Choose This Switch

• The inclusion of two uplink ports allows for simultaneous connection to a Network Video Recorder and a primary internet gateway.
• The 250-meter transmission capability simplifies cabling requirements in large facilities by eliminating the need for intermediate repeaters.
• Unmanaged hardware ensures rapid deployment without requiring complex software configuration or specialized IT training.
• The sturdy metal housing provides efficient heat dissipation which extends the lifespan of internal components under continuous load.
• Integrated VLAN isolation mode enhances security by preventing broadcast storms between connected client devices.
