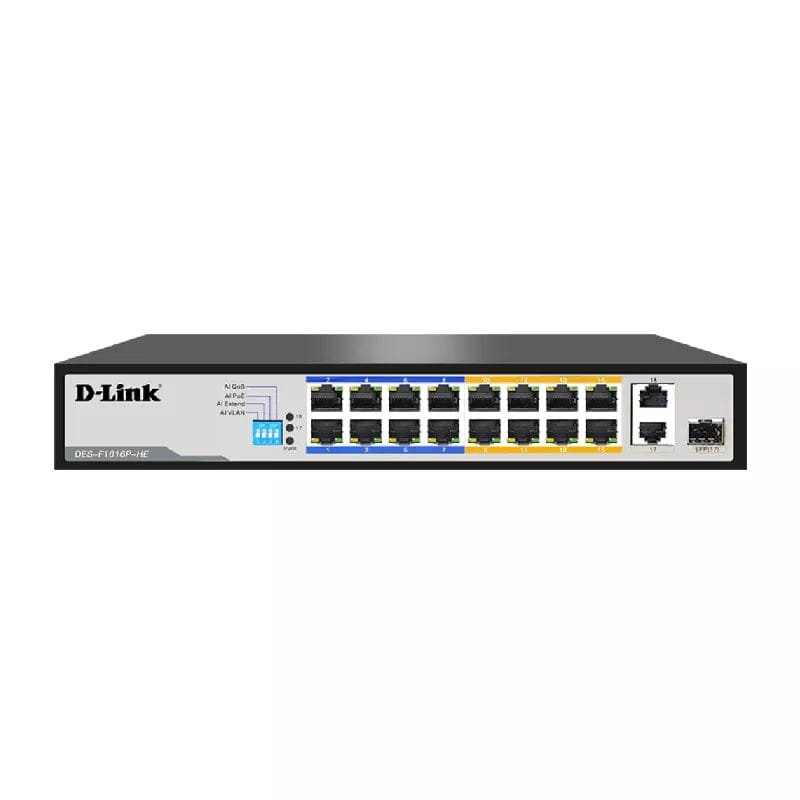

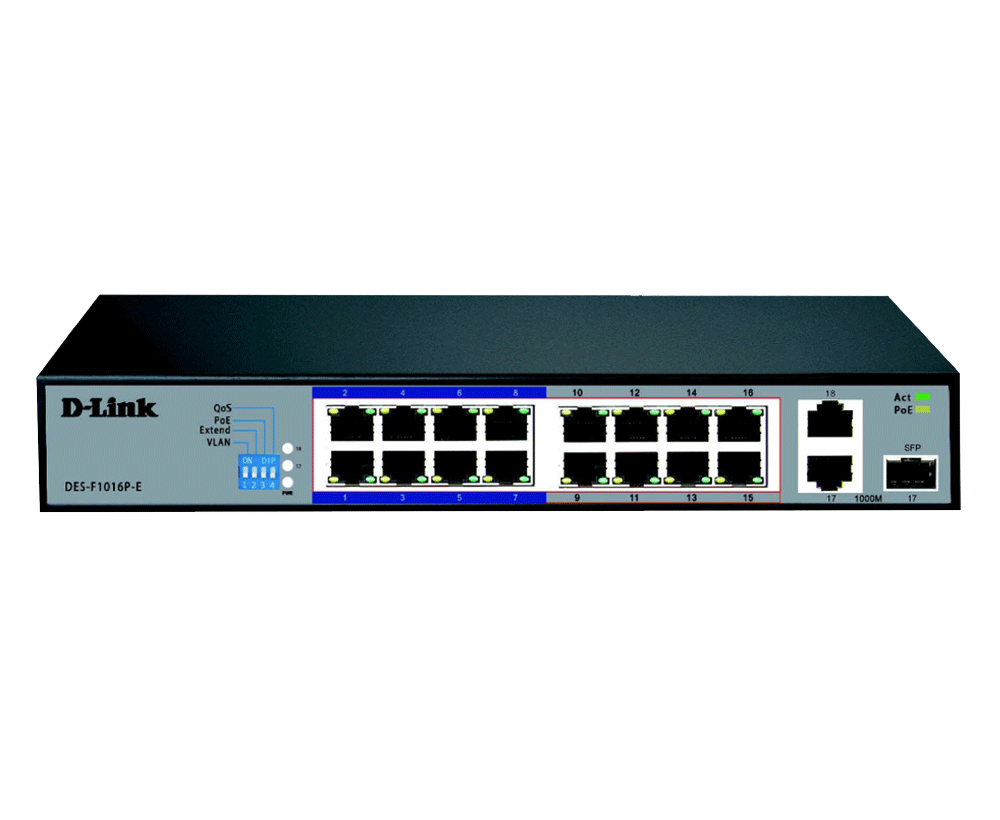

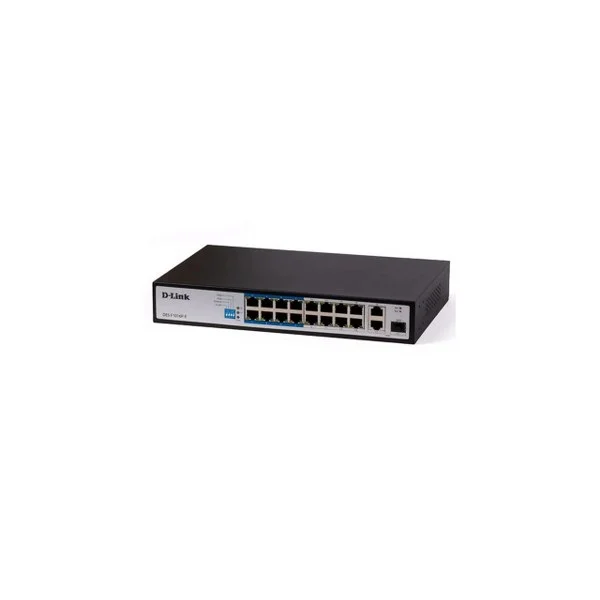

D-Link DES-F1016P-E 16-Port Fast Ethernet 250m Long Range PoE+ Switch
Original price was: KSh 23,000.00.KSh 20,000.00Current price is: KSh 20,000.00.
D-Link DES-F1016P-E 16-Port Fast Ethernet 250m Long Range PoE+ Switch
-
- Power Budget
| Feature | Specification |
|---|---|
| Port Count | 16 PoE Ports |
| 150W | |
| Standard | 802.3af/at PoE+ |
| Max Distance | 250m Long Range |
| Surge Protection | 6kV |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
D-Link DES-F1016P-E Switch
The D-Link DES-F1016P-E PoE+ Switch represents a specialized hardware solution engineered for high-density IP surveillance and network expansion. This unmanaged unit features sixteen 10/100 Mbps ports that fully support IEEE 802.3af and 802.3at Power over Ethernet standards. It provides a total power budget of 150W, allowing for the simultaneous operation of multiple high-draw devices such as PTZ cameras or wireless access points. Consequently, network engineers can deploy infrastructure in environments where localized power sources are unavailable or difficult to install.
Key Features
-
Extended Transmission Range
The integrated Long Range mode enables data and power delivery over copper cabling at distances reaching up to 250 meters. -
Intelligent Port Optimization
- VLAN Isolation mode prevents broadcast storms and enhances security between connected downlink ports.
- Quality of Service (QoS) prioritization ensures critical video traffic receives necessary bandwidth during high-congestion periods.
- PoE Extender functionality automatically adjusts signal strength to maintain link stability over long-distance runs.
Specifications
| Feature | Specification |
|---|---|
| Port Configuration | 16 x 10/100 Mbps PoE Ports |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Total PoE Budget | 150 Watts |
| Switching Capacity | 3.2 Gbps |
| Surge Protection | 6kV Lightning Protection |
| Transmission Range | Up to 250m at 10Mbps |
What’s in the Box
- D-Link DES-F1016P-E 16-Port PoE+ Switch
- Standard Power Cord
- Rack Mount Bracket Kit
- Quick Installation Guide
Why Choose This Surveillance Switch
- Built-in 6kV surge protection safeguards the internal circuitry from electrical transients caused by environmental factors. Therefore, hardware reliability remains consistent in outdoor camera deployments.
- The plug-and-play architecture eliminates the need for complex software configuration. Additionally, physical DIP switches allow for immediate activation of VLAN and Extend modes without accessing a management interface.
- A robust 150W power budget provides sufficient overhead for modern PoE+ devices. However, the system maintains efficient thermal regulation to prevent overheating during peak load operations.
- VLAN functionality effectively isolates ports 1 through 16 from each other. Consequently, this architecture improves overall network performance by reducing unnecessary traffic propagation.
