D-Link switch DGS-F1006P-E 6-Port Gigabit PoE 250M

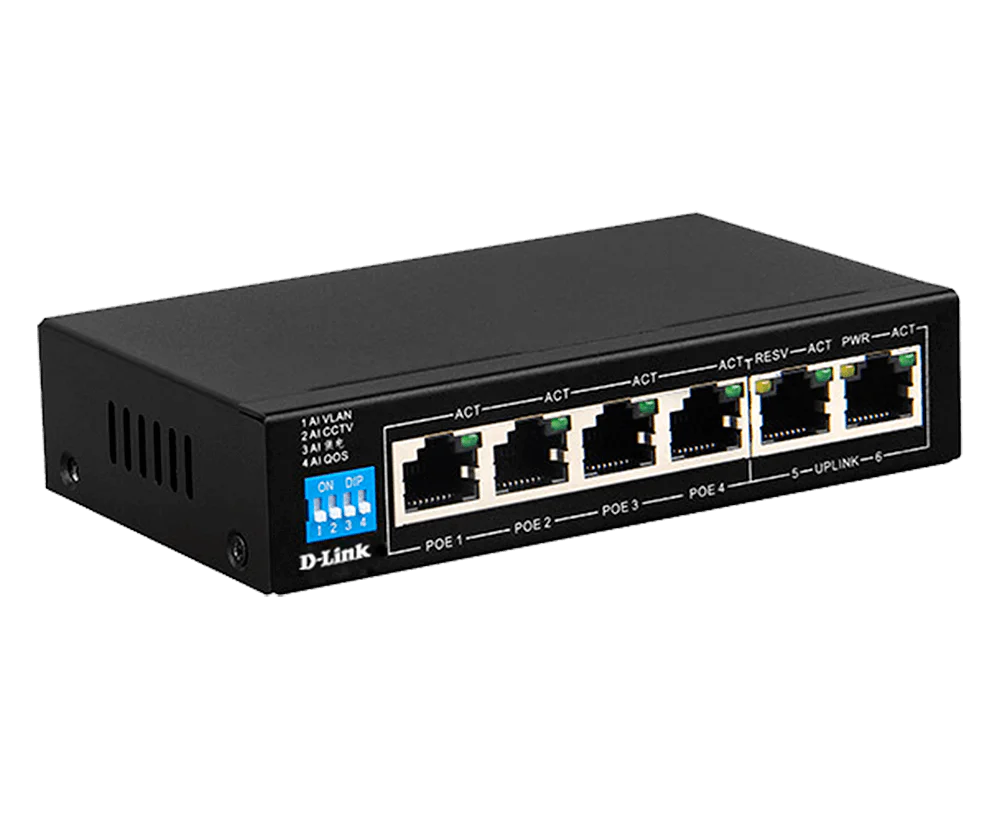

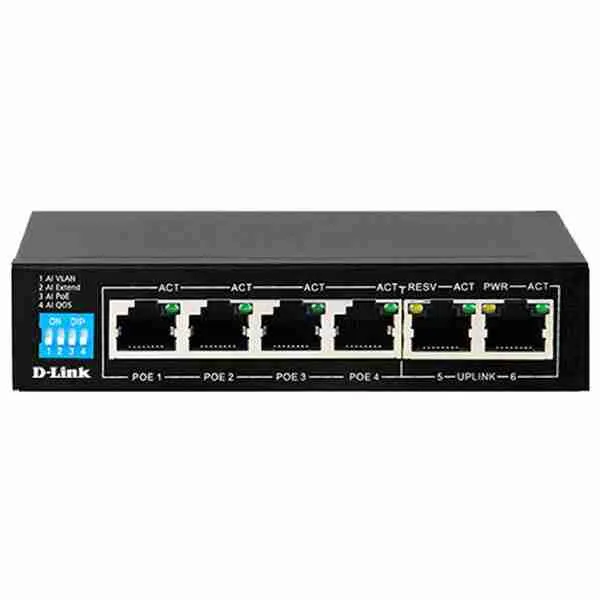

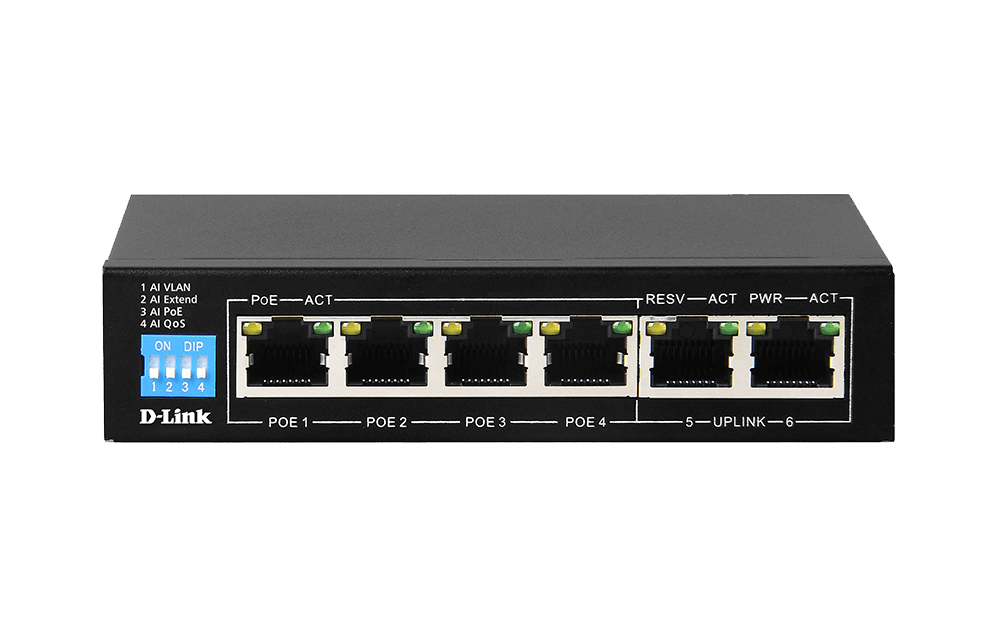

D-Link DGS-F1006P-E

The D-Link 6-Port PoE Switch integrates high-speed data transmission with Power over Ethernet capabilities to support modern IP surveillance and wireless infrastructure. This unmanaged hardware solution features four 10/100/1000 Mbps PoE ports and two dedicated Gigabit uplink ports for high-bandwidth server or NVR connections. It utilizes a robust store-and-forward switching architecture to ensure data integrity across the backplane. Consequently, network engineers can deploy this unit in environments requiring reliable power delivery without complex configuration. The internal power supply manages a total budget of 60W, adhering strictly to IEEE 802.3af and IEEE 802.3at standards.

Key Features

• Extended Transmission Range
  The hardware supports an extended mode that allows power and data delivery up to 250 meters at 10Mbps speeds.

• Intelligent Management Modes

  • VLAN mode isolates downlink ports to prevent broadcast storms and enhance security.
  • QoS mode prioritizes video traffic to ensure smooth surveillance streams.
  • PoE Extend mode increases the physical reach of the network cable.

• Integrated Surge Protection
  Built-in 6KV protection safeguards the internal circuitry from external electrical surges and lightning strikes.

• High Power Budget
  The device provides up to 30 watts per port, ensuring compatibility with PTZ cameras and high-performance access points.

Specifications

What’s in the Box

• D-Link DGS-F1006P-E Switch
• Power Adapter and Cord
• Quick Installation Guide
• Rubber Feet for Desktop Mounting

Why Choose DGS-F1006P-E

• The unit eliminates the need for mid-span injectors by providing direct 802.3at power to connected peripherals.
• Additionally, the 250m long-distance capability simplifies outdoor camera deployments where standard cable limits pose challenges.
• Therefore, procurement managers benefit from a cost-effective solution that reduces additional cabling infrastructure requirements.
• The fanless metal chassis ensures silent operation and efficient heat dissipation in confined rack spaces.
• Consequently, the system provides high reliability for critical security networks without ongoing maintenance needs.
