D-Link DGS-1016C 16-Port Gigabit Unmanaged Switch

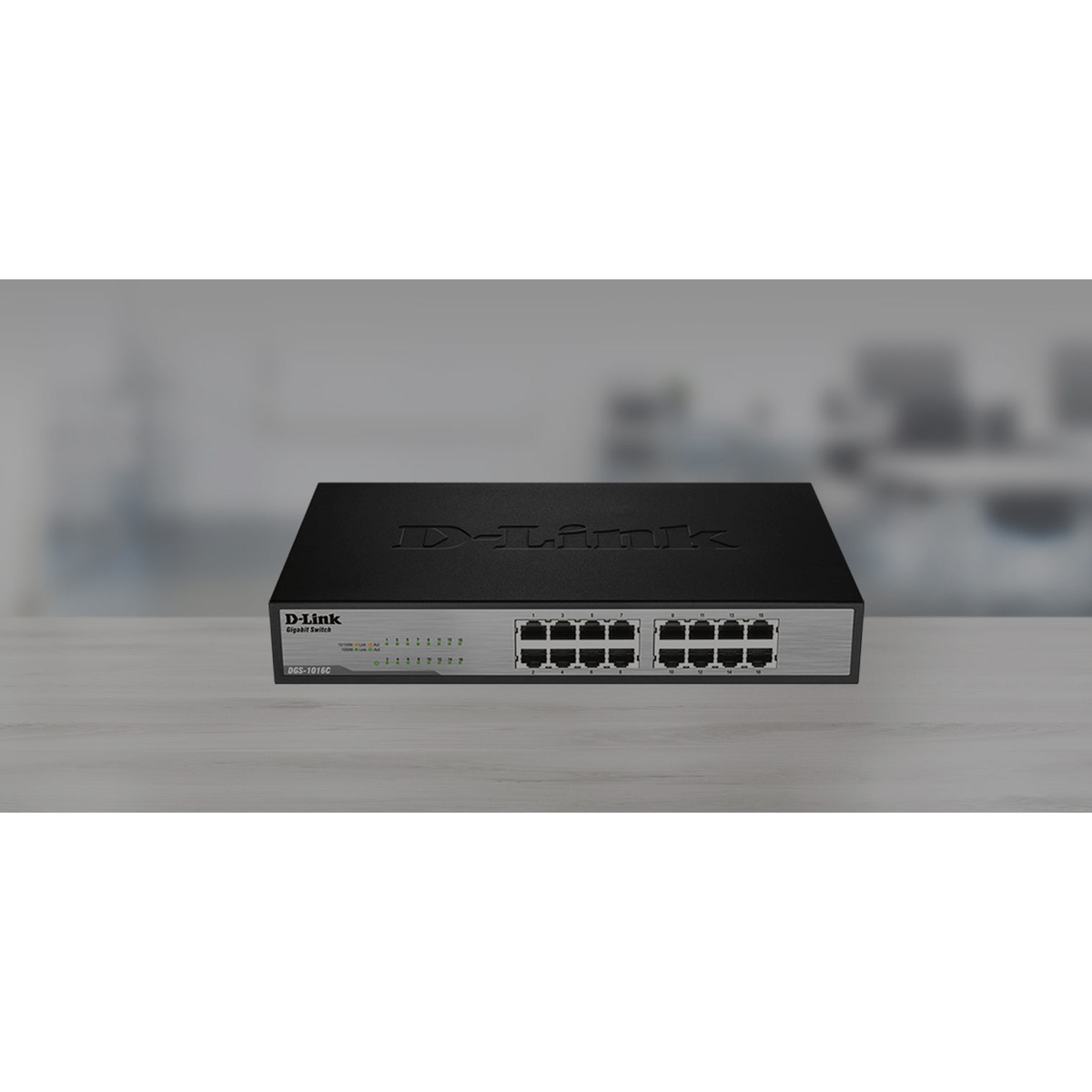

D-Link DGS-1016C Gigabit Switch

The D-Link DGS-1016C switch provides sixteen Gigabit Ethernet ports in a fanless chassis for office LANs, lab benches, and small server rooms that need straightforward Layer 2 connectivity. This unmanaged switch requires no IP configuration or web interface. Connect devices, power on, and the switch learns MAC addresses automatically. Non-PoE design keeps cost and power draw lower when endpoints already have local power adapters.

All sixteen RJ45 ports operate at 10/100/1000 Mbps with auto-negotiation and auto MDI/MDIX. Store-and-forward switching inspects frames before forwarding, reducing corrupted traffic propagation. The 32 Gbps switching capacity handles concurrent traffic across multiple Gigabit links without internal bottlenecks under typical SMB loads. IEEE 802.3x flow control pauses transmission when receiving buffers fill, protecting against packet loss during bursts.

Fanless metal housing runs silently on a desktop or in a shallow rack shelf. Passive cooling suits environments where spinning fans add noise and dust intake. Per-port LEDs indicate link status and activity for quick cable tracing. Jumbo frame support up to standard Gigabit limits helps when large files move between local workstations and NAS devices on the same broadcast domain. Energy Efficient Ethernet reduces power on idle links per IEEE 802.3az.

The compact footprint fits wiring closets with limited depth. Rubber feet support desktop placement. Rack ears allow mounting in standard 19-inch racks when horizontal space is tight. Because the unit is unmanaged, it does not provide VLANs, QoS policies, or SNMP. Teams needing those features should select a managed model. For pure port expansion behind a router or firewall, this switch delivers reliable Gigabit bridging.

Key Features

• Sixteen Gigabit RJ45 Ports
  Expands LAN port count for workstations, printers, IP cameras with local power, and patch panels.

• Fanless Silent Operation
  No moving parts reduce noise and maintenance in open offices and home labs.

• Plug-and-Play Unmanaged Design

  • No configuration or firmware management required
  • Auto-negotiation on every port for speed and duplex

• Desktop and Rack Mount Options
  Includes feet for shelf placement and hardware for standard rack installation.

• Non-PoE Architecture
  Keeps unit cost and PSU size focused on switching when powered devices are not required.

Specifications

What’s in the Box

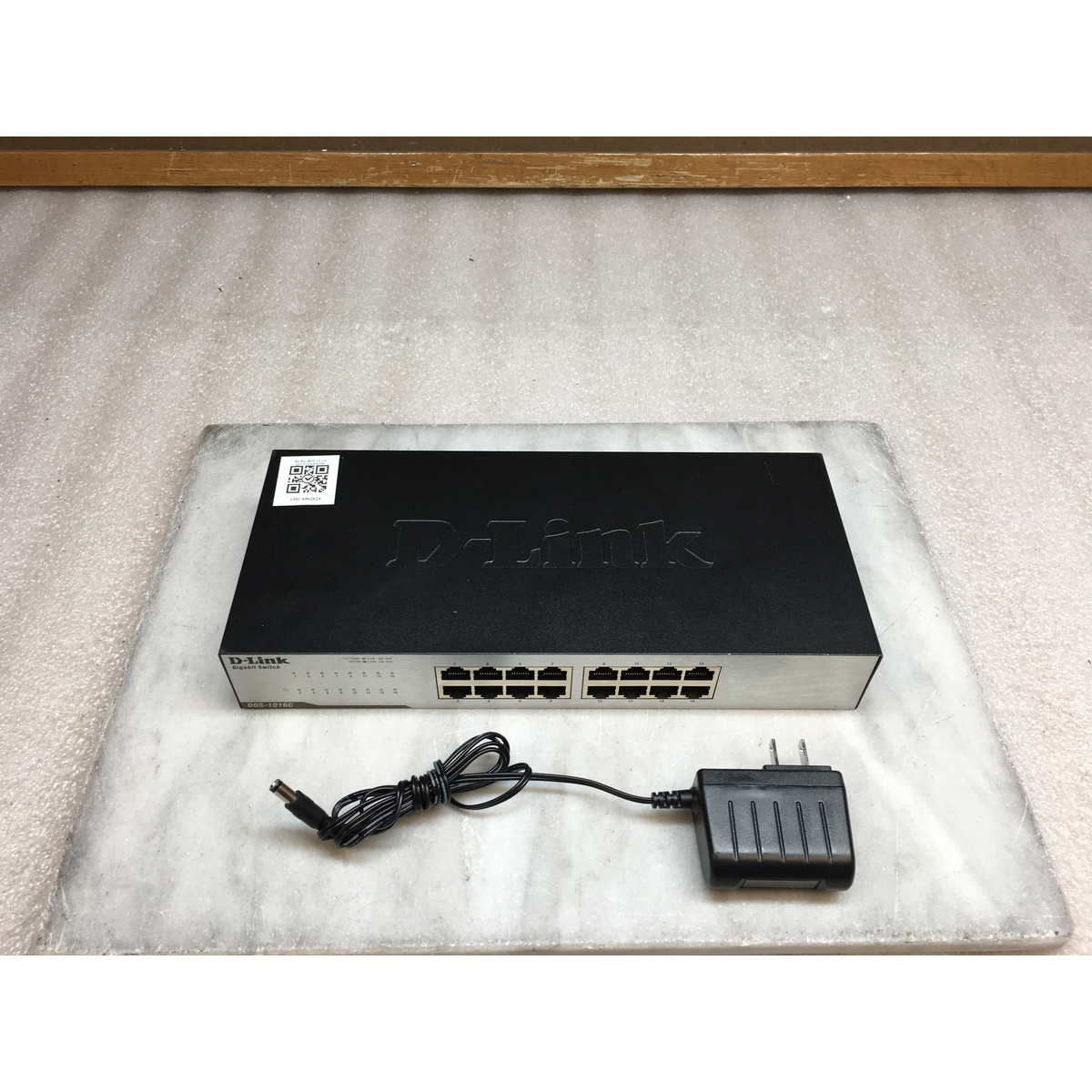

• D-Link DGS-1016C 16-port Gigabit switch

• External power adapter

• Rubber feet and rack-mount ears

• Quick installation guide

Why Choose DGS-1016C

• Sixteen Gigabit ports add capacity without managed switch complexity or licensing.

• Fanless design suits quiet office areas and residential lab setups.

• Non-PoE model fits networks where endpoints use local power bricks.

• Compact chassis mounts on a desk or in a shallow rack shelf.
