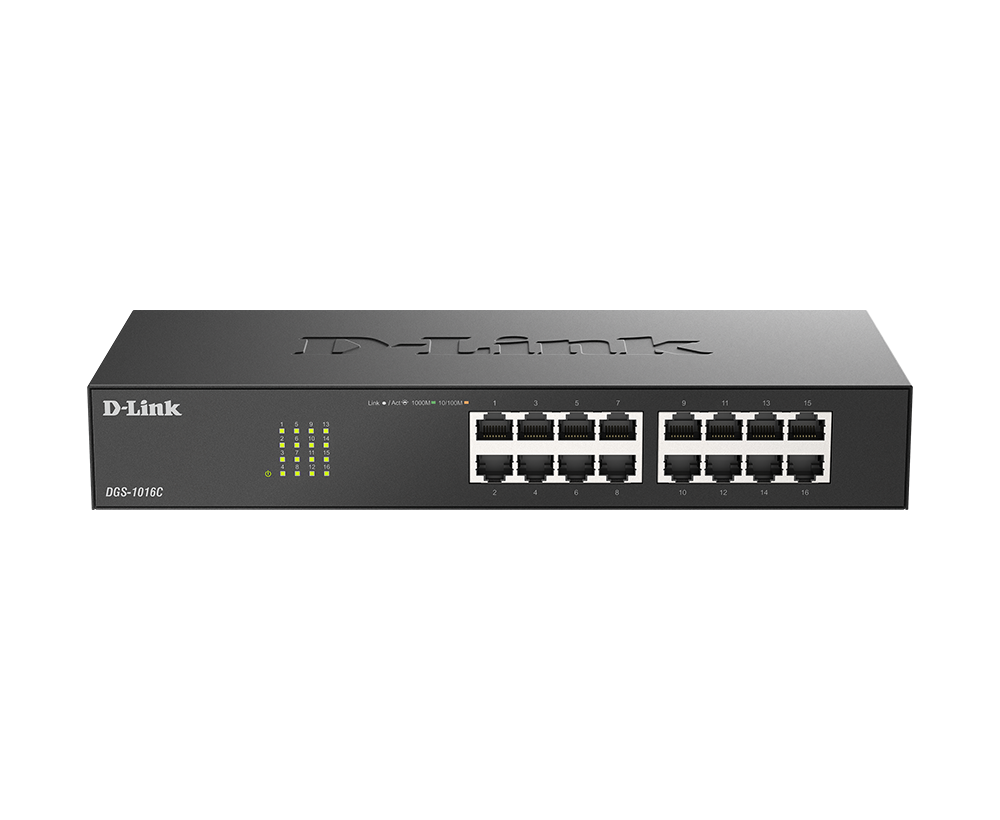

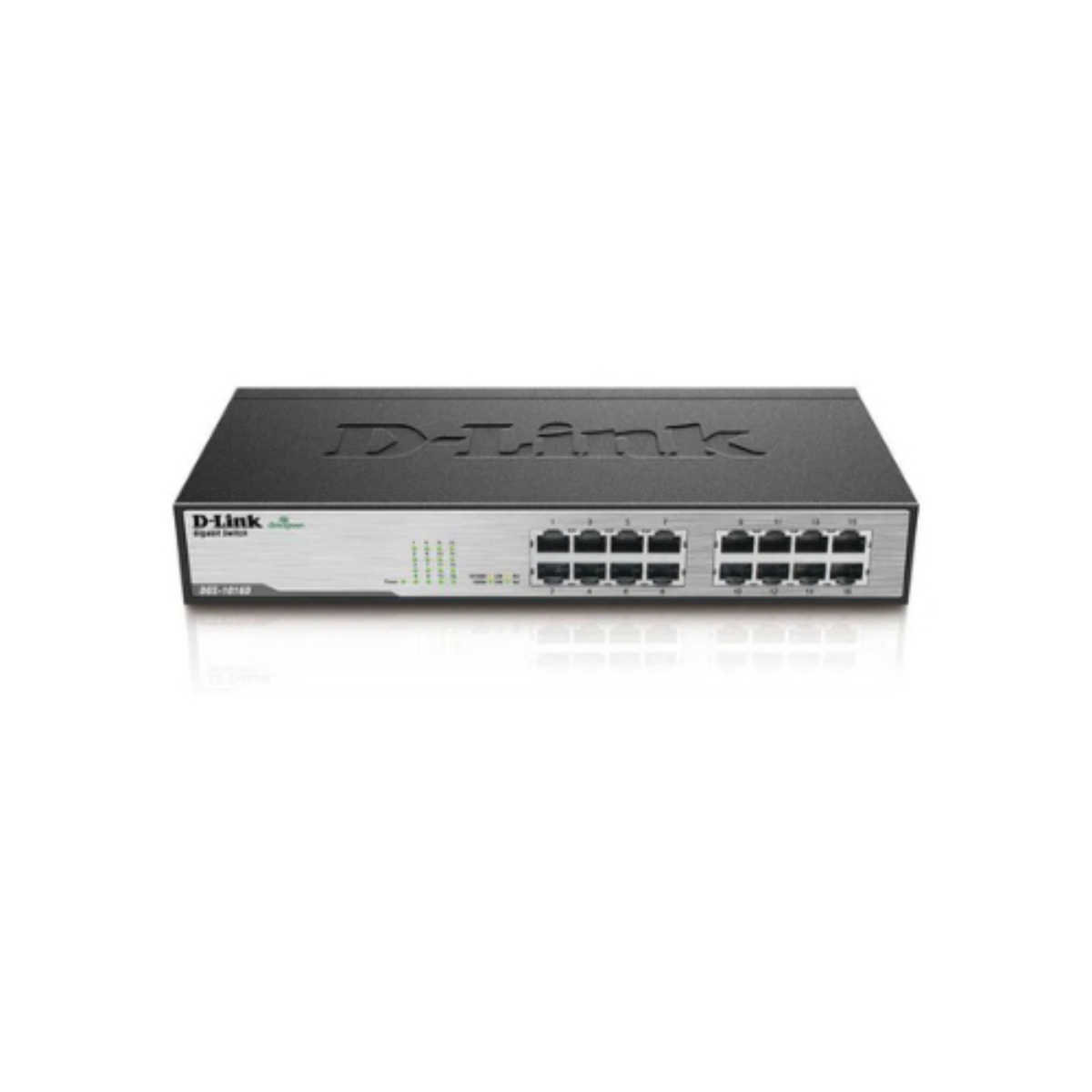

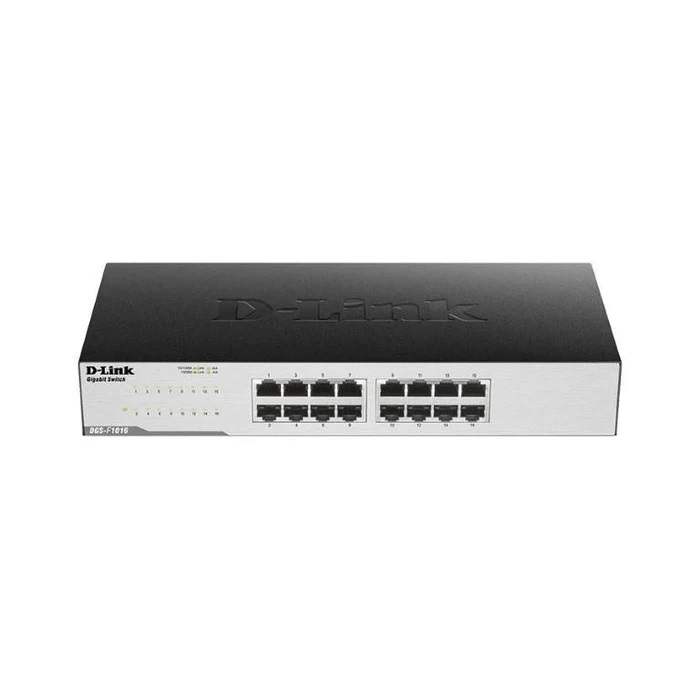

D-Link DGS-F1016C 16-Port 10/100/1000Mbps Unmanaged Switch

Sixteen-Port Copper Access Switch

The D-Link DGS-F1016C provides sixteen auto-negotiating 10/100/1000 Mbps copper ports in a fanless metal enclosure. Each port resolves speed, duplex and MDI/MDIX polarity independently, so straight-through and crossover cabling both work. The unit forwards frames at wire speed across all ports simultaneously, which suits workgroup access, branch offices and retail back-room deployments.

A 32 Gbps switching fabric and an 8,000-entry MAC address table carry the full port count without oversubscription. Store-and-forward switching validates every frame before transmission, and IEEE 802.3x flow control reduces dropped packets when a receive buffer fills. Jumbo frames up to 9,216 bytes cut per-packet overhead on imaging and backup traffic.

The switch accepts 100 to 240 V AC input and carries 6 kV surge protection on the power supply and on every RJ45 port. It runs from 0 to 45 °C in 10 to 90 percent non-condensing humidity. A 29.4 x 17.9 x 4.4 cm chassis at 1.06 kg fits shallow cabinets, shelves and wall positions.

Key Features

• Non-Blocking Forwarding
  32 Gbps switching capacity delivers 1,488,000 pps per gigabit port at wire speed.

• Plug-and-Play Operation
  No management interface, IP address or configuration file is required; ports begin forwarding once a link is detected.

• Jumbo Frame Handling
  Frames up to 9,216 bytes reduce CPU overhead during large sequential transfers.

• Surge and Lightning Protection

  • 6 kV clamping on the AC power input
  • 6 kV protection across all sixteen copper ports

• Fanless Thermal Design
  Passive cooling removes a moving-part failure point and produces no acoustic output.

• Layer 2 Standards Compliance
  Supports IEEE 802.3, 802.3u, 802.3ab and 802.3x flow control on every port.

Specifications

What’s in the Box

• DGS-F1016C 16-port switch unit

• AC power cable

• Quick installation guide

• Rubber feet for desktop placement

Why Choose This D-Link Unit

• Sixteen copper gigabit ports expand an existing network without replacing upstream infrastructure.

• Passive cooling and a metal housing suit dust-prone cabinets and unventilated enclosures.

• Auto-negotiation per port removes speed and duplex mismatch faults during staged rollouts.

• Flow control and store-and-forward buffering keep retransmissions low on congested uplinks.
