CSP-01 Photocell 15m Effective Range Infrared Beam Sensor
Original price was: KSh 2,900.00.KSh 2,400.00Current price is: KSh 2,400.00. ex VAT
CSP-01 Photocell 15m Effective Range Infrared Beam Sensor
| Model | CSP-01 |
| Detection method | Single-beam infrared through-beam |
| Maximum range | 15 m |
| Supply voltage | 12–24 V AC/DC |
| Transmitter current | ≈20 mA |
| Receiver current | ≈15 mA |
| Output | Relay contact |
| Ingress protection | IP55 |
| Housing colour | Black |
| Operating temperature | -20 °C to +55 °C |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Infrared Beam Sensor for Gate and Door Safety

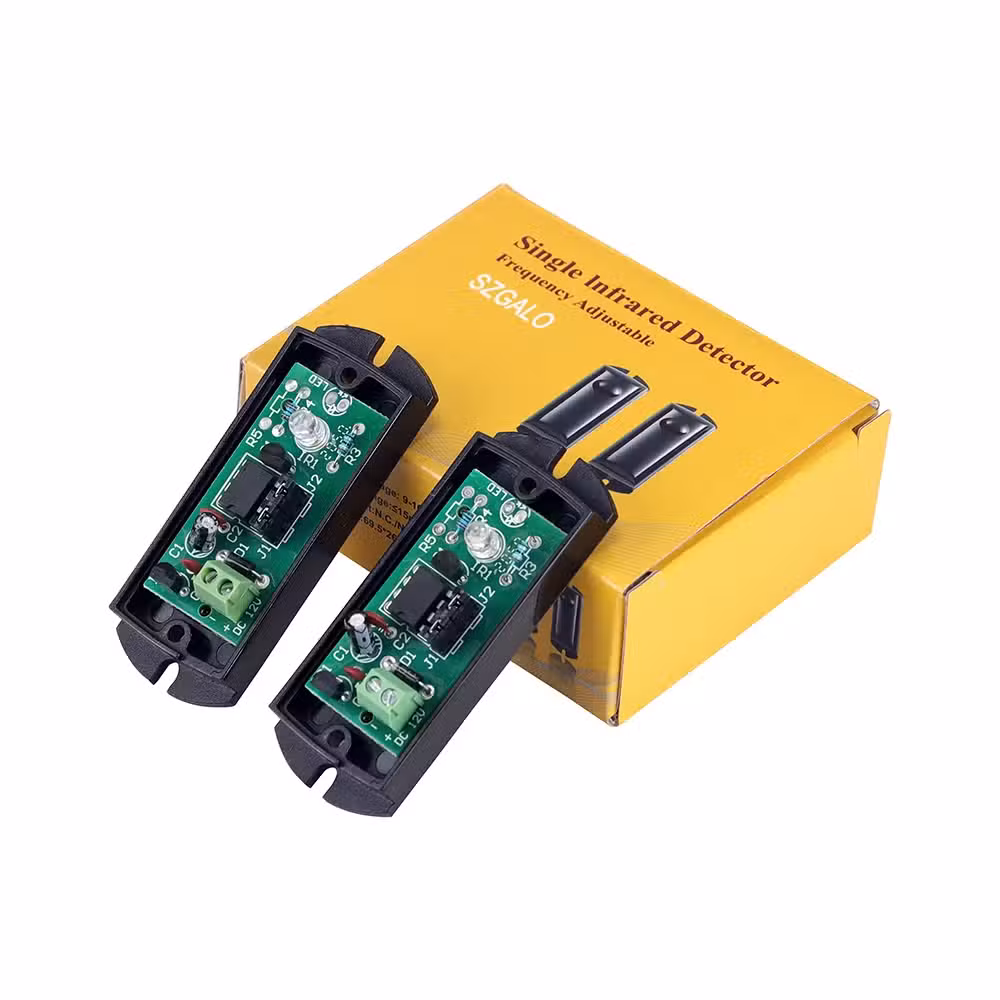

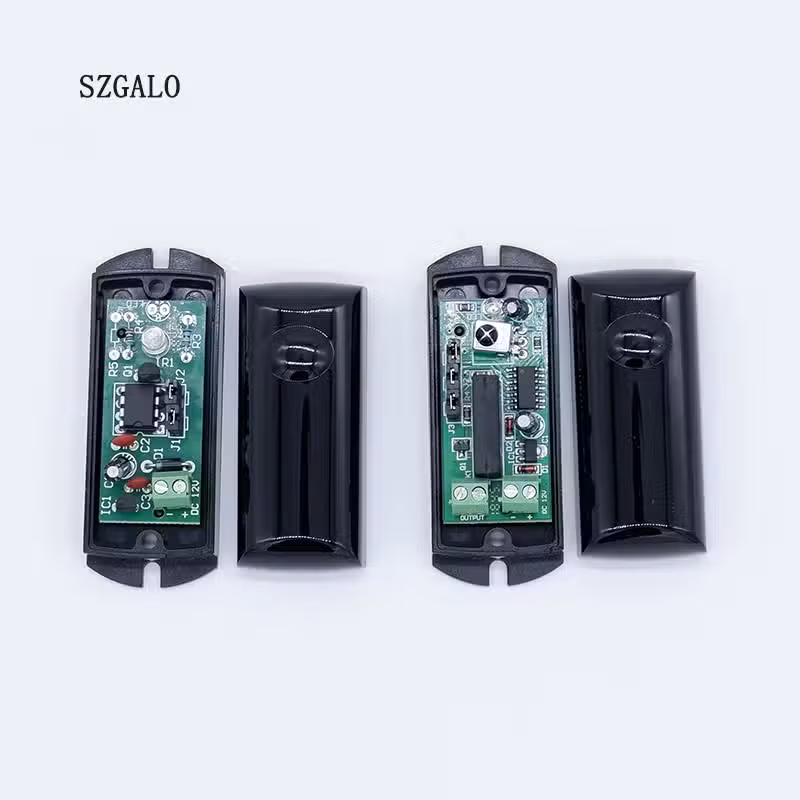

The CSP-01 photocell is a single-beam infrared detector with a maximum effective range of 15 metres. It pairs a transmitter and receiver in a compact black housing for through-beam obstruction detection. The unit operates on 12–24 V AC/DC and suits automatic gate, door, and barrier installations.
The transmitter draws approximately 20 mA and the receiver about 15 mA. A modulated infrared beam resists interference from sunlight and ambient lighting. Relay output switches when the beam is interrupted, and the receiver provides an LED indicator for alignment and status checks.
The housing carries an IP55 rating for dust and water-jet protection. Mount the transmitter and receiver at opposite sides of the opening and align the optical axes within the 15 m working span. The photocell operates across a wide temperature range and requires no additional controller for basic beam-break signalling.
Key Features
15-metre detection span
The through-beam pair covers openings up to 15 m wide with a modulated infrared carrier.12–24 V AC/DC supply
The wide input range accepts common automation and access-control voltages without a separate regulator.Low current draw
The transmitter consumes roughly 20 mA and the receiver about 15 mA at nominal supply.Relay output
- Dry-contact switching for beam-break signalling.
- Compatible with gate controllers and door safety inputs.
- LED status indicator on the receiver for alignment.
IP55 housing
The enclosure resists dust ingress and low-pressure water jets in outdoor installations.Sunlight immunity
The modulated beam rejects ambient light interference from direct sun exposure.Compact black body
The slim housing mounts on walls, posts, and gate frames with standard fixings.
Specifications
| Feature | Specification |
|---|---|
| Model | CSP-01 |
| Detection method | Single-beam infrared through-beam |
| Maximum range | 15 m |
| Supply voltage | 12–24 V AC/DC |
| Transmitter current | ≈20 mA |
| Receiver current | ≈15 mA |
| Output | Relay contact |
| Ingress protection | IP55 |
| Housing colour | Black |
| Operating temperature | -20 °C to +55 °C |

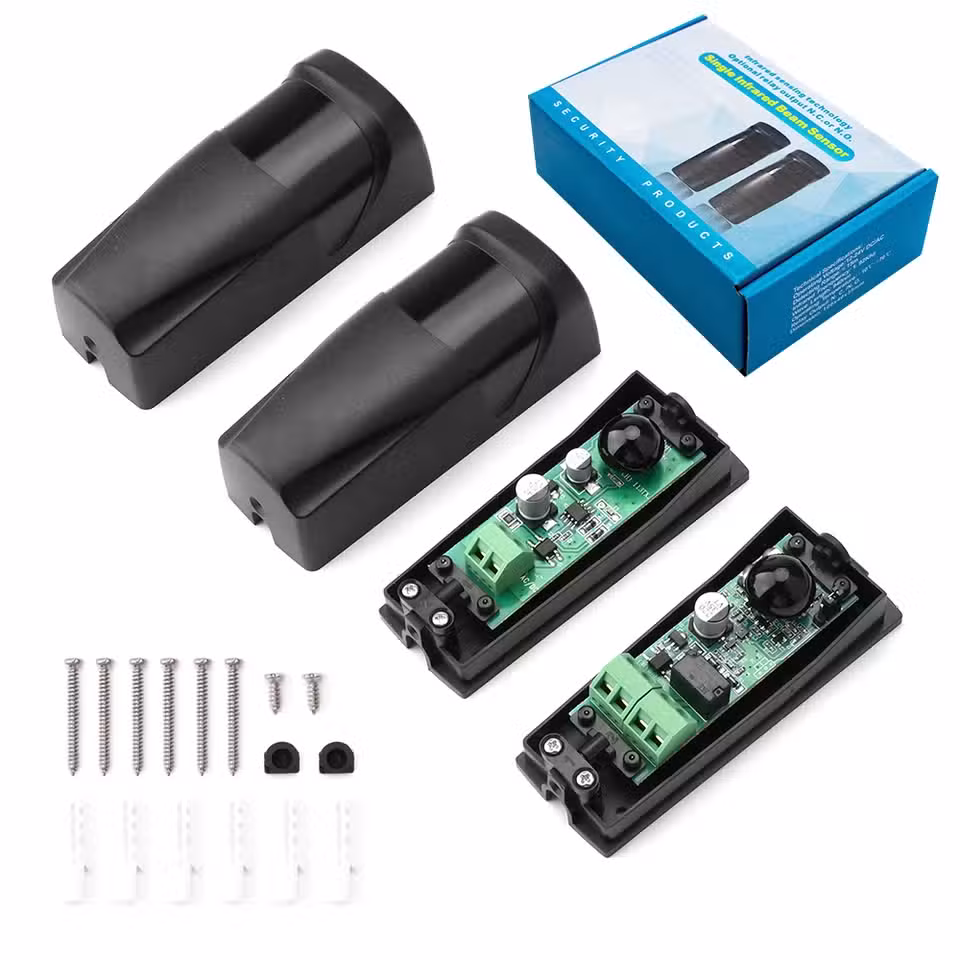

What’s in the Box
CSP-01 transmitter unit
CSP-01 receiver unit
Mounting hardware set
Why Choose the CSP-01
The 15 m working range covers wide gate and door openings without repeaters.
Dual AC/DC input simplifies wiring to 12 V and 24 V automation systems.
Modulated infrared transmission maintains detection stability under direct sunlight.
IP55 sealing supports outdoor mounting on exposed posts and pillars.
The receiver LED speeds alignment during commissioning and fault tracing.
