Jakemy JM-9205A Digital Multimeter 20A AC/DC Resistance Capacitance
Original price was: KSh 2,500.00.KSh 1,500.00Current price is: KSh 1,500.00.
Jakemy Digital Multimeter 20A AC/DC Resistance Capacitance
| DC Voltage | Up to 1000V |
| AC Voltage | Up to 750V |
| Current | Up to 20A AC/DC |
| Resistance | Up to 200MΩ |
| Capacitance | Up to 200μF |
| Display | 3.5 Digit LCD |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

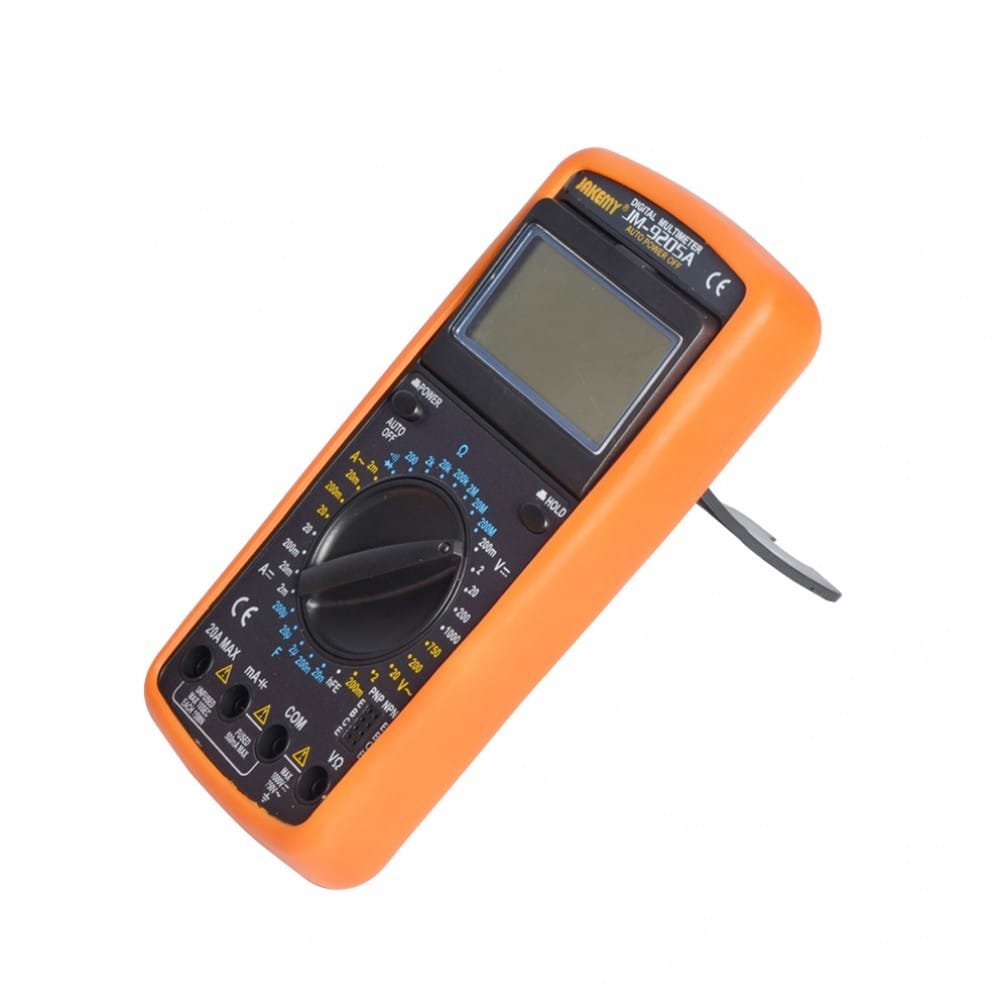

Jakemy JM-9205A Digital Multimeter
The Jakemy JM-9205A Multimeter is a highly versatile diagnostic instrument engineered for precise electrical measurement and circuit troubleshooting. This handheld device utilizes a dual-slope A/D converter system based on CMOS technology to ensure high-accuracy readings. Additionally, the unit features an integrated auto-zeroing function and automatic polarity selection for streamlined operation in complex field environments. The architectural design focuses on durability and electrical safety for technical professionals.
Key Features
-
Large LCD Interface
The 3.5-inch display provides a 1999-count resolution for clear data visualization in low-light conditions. -
Advanced Measurement Ranges
- DC voltage detection from 200mV up to 1000V for high-voltage diagnostics.
- Current measurement capacity up to 20A for both alternating and direct current circuits.
- Resistance testing range extending up to 200M ohms for insulation verification.
-
Safety Protection
Integrated fuse protection and overload circuitry prevent damage to the internal components during surges. -
Component Testing
Dedicated slots allow for hFE transistor testing and diode forward voltage drop measurements.
Specifications
| Feature | Specification |
|---|---|
| DC Voltage | 200mV, 2V, 20V, 200V, 1000V |
| AC Voltage | 200mV, 2V, 20V, 200V, 750V |
| DC Current | 2mA, 20mA, 200mA, 20A |
| AC Current | 2mA, 20mA, 200mA, 20A |
| Resistance | 200Ω to 200MΩ |
| Capacitance | 2nF, 20nF, 200nF, 2μF, 20μF, 200μF |
| Display Type | LCD (3.5 Digit, 1999 Counts) |
| Power Source | 9V 6F22 Battery |

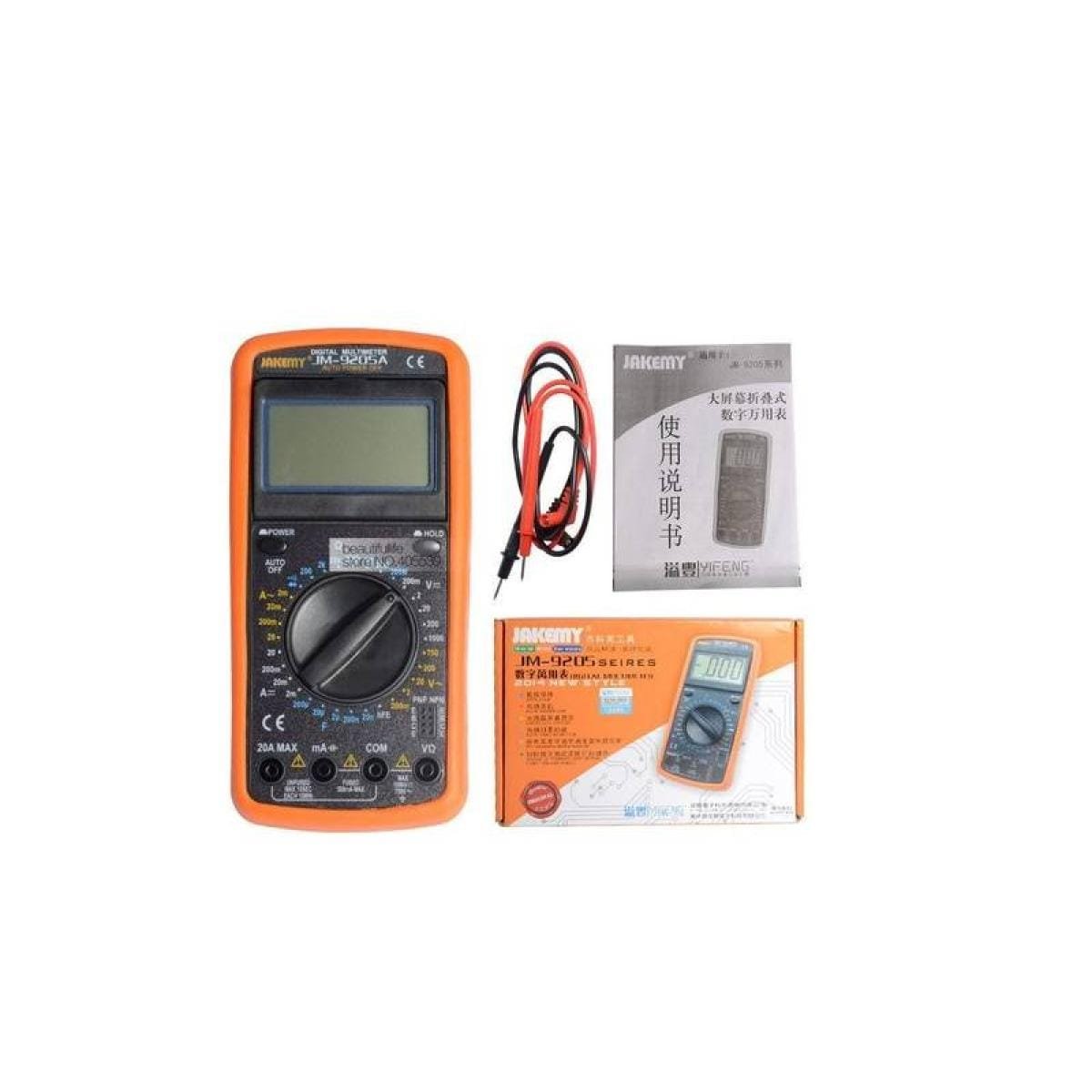

What’s in the Box
- Digital Multimeter Unit
- Red and Black Test Leads
- Protective Rubber Holster
- User Manual
Why Choose this Testing Device
- The high input impedance of 10M ohms minimizes circuit loading during sensitive voltage measurements.
- Furthermore, the wide capacitance range allows for effective capacitor health screening in power supplies.
- Consequently, the 20A current range supports testing of heavy-duty industrial components without requiring external shunts.
- The ruggedized outer shell protects the internal electronics from mechanical impacts during field use.
- Moreover, the inclusion of a continuity buzzer simplifies cable tracing and connection verification tasks for network engineers.
