CP Plus CP-ANW-HP24G2F1-25 24-Port AI PoE Switch, 2 Gigabit & 1 SFP Uplink
Original price was: KSh 36,000.00.KSh 33,500.00Current price is: KSh 33,500.00.
CP Plus CP-ANW-HP24G2F1-25 24-Port AI PoE Switch, 2 Gigabit & 1 SFP Uplink
| PoE Ports | 24 x 10/100 Mbps |
| Uplink Ports | 2 x Gigabit RJ45 + 1 x Gigabit SFP (Combo) |
| PoE Budget | 250W |
| AI Features | Extend (250m), VLAN, QoS, Watchdog |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

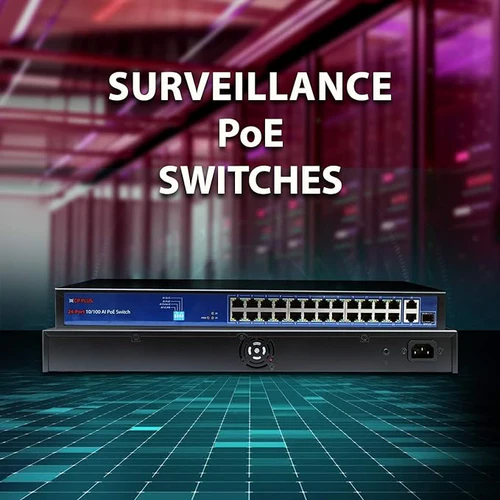

CP Plus CP-ANW-HP24G2F1-25 24-Port AI PoE Switch
The CP Plus CP-ANW-HP24G2F1-25 24-Port AI PoE Switch provides a robust infrastructure for high-density IP surveillance and enterprise networking. This specialized hardware integrates intelligent management features to optimize power delivery and data traffic across twenty-four 10/100 Mbps PoE ports. Additionally, the unit features two dedicated Gigabit uplink ports and one SFP combo slot to ensure high-speed connectivity to core network layers. Consequently, the device facilitates seamless integration for professional security environments.
Key Features
-
AI Watchdog Functionality
The system automatically detects unresponsive powered devices and initiates a hardware reboot to restore service. -
Extended Transmission Mode
Engineers can toggle a manual switch to support data and power delivery up to 250 meters at 10Mbps speeds. -
VLAN Port Isolation
The hardware supports port-based VLANs to prevent broadcast storms and enhance security between connected IP cameras. -
AI Quality of Service
This switching unit prioritizes video data packets over standard traffic to ensure smooth playback for surveillance feeds.
Specifications
| Feature | Specification |
|---|---|
| Port Configuration | 24 x 10/100M PoE, 2 x 10/100/1000M RJ45, 1 x 1000M SFP (Combo) |
| PoE Standard | IEEE 802.3af/at (Up to 30W per port) |
| Total PoE Budget | 250 Watts |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.55 Mpps |
| MAC Address Table | 4K Entries |
| Lightning Protection | 6KV Common Mode / 4KV Differential Mode |
What’s in the Box
- CP Plus 24-Port AI PoE Switch unit
- Standard AC Power Cable
- Rackmount Brackets and Screw Kit
- User Manual and Warranty Documentation
Why Choose This Networking Solution
- The 250W power budget allows for the deployment of multiple high-draw PTZ cameras without external power injectors.
- Integrated lightning protection safeguards internal circuitry against electrical surges common in outdoor deployments.
- The Gigabit uplink ports prevent bottlenecks when multiple 10/100 ports transmit high-resolution video streams simultaneously.
- The SFP combo port offers flexibility for fiber optic uplinks over long distances between buildings or floors.
- Active monitoring via AI PoE reduces manual maintenance visits by automatically power-cycling frozen network peripherals.
