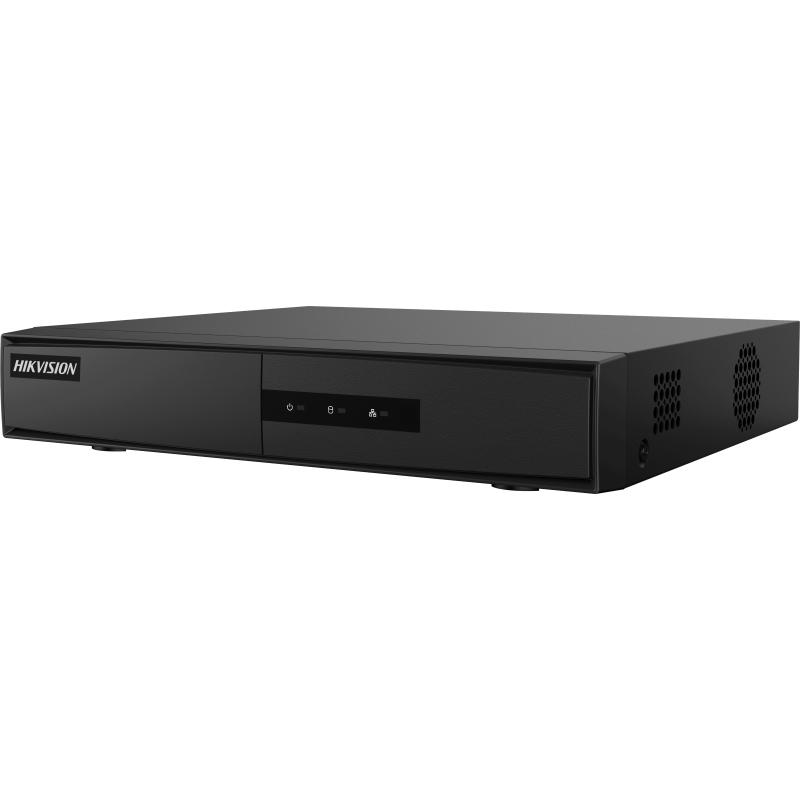

Hikvision DS-7104NI-Q1/4P 4-Channel 4MP PoE NVR
WhatsApp for availability
Hikvision 4-Channel 4MP PoE NVR
| Channels | 4-Channel |
| PoE Ports | 4 Ports (802.3af/at) |
| Max Resolution | Up to 6MP Decoding |
| Compression | H.265+ / H.265 |
| Storage | 1 SATA (Up to 6TB) |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
The Hikvision 4-Channel PoE NVR provides a centralized recording solution for small-scale IP surveillance systems. This unit manages up to four network cameras via integrated Power over Ethernet ports. It supports high-efficiency video compression to reduce storage requirements. Users can access live feeds through the Hik-Connect mobile application. This hardware simplifies installation by delivering power and data through a single cable.
Hikvision DS-7104NI-Q1/4P
The recorder features a compact 1U chassis. It fits well in restricted spaces. The system handles 40 Mbps of incoming traffic. This bandwidth ensures stable recording for multiple high-definition streams. Outgoing bandwidth reaches 60 Mbps for remote viewing.
The network video recorder utilizes the H.265+ codec. This standard optimizes video data processing. It allows for longer retention periods on the same disk size. The device supports various VCA events. It can detect motion and trigger recording or alerts. Smart search functionality helps security personnel find specific video segments quickly.

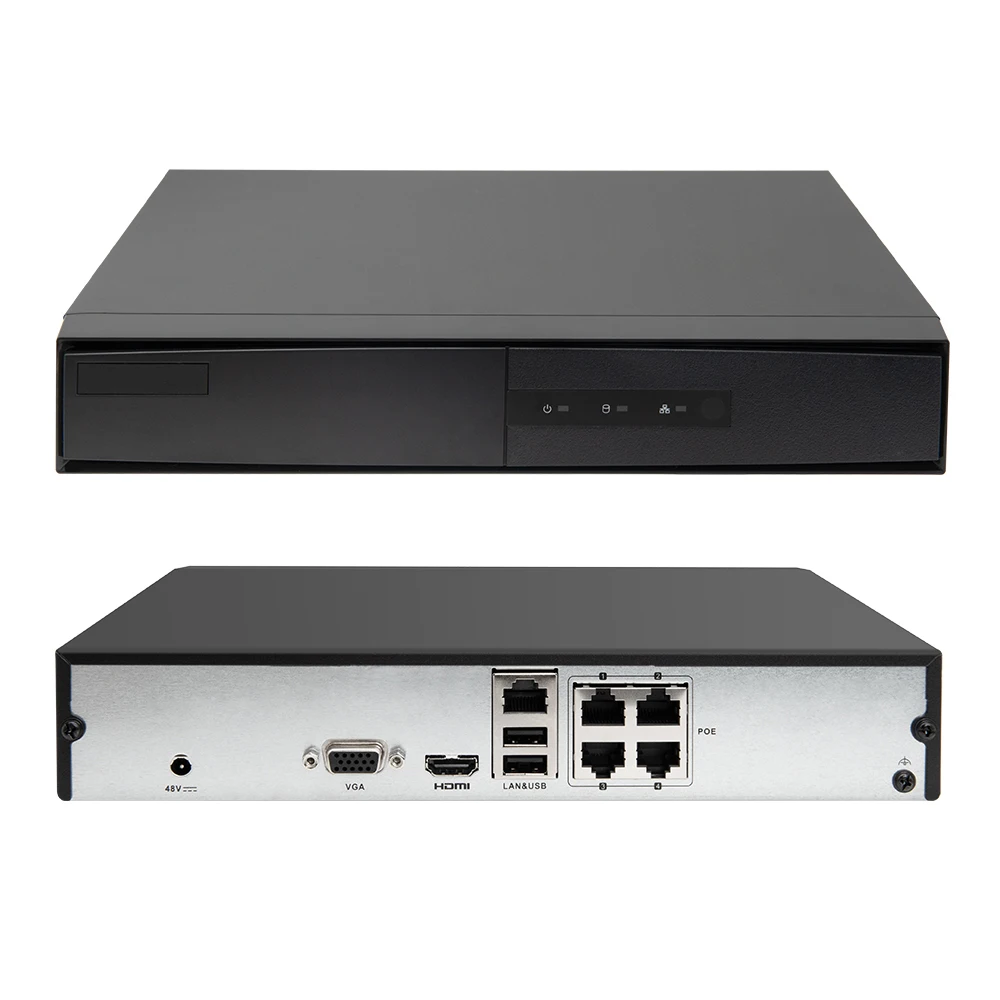

The back panel includes four RJ45 ports with PoE capability. These ports follow IEEE 802.3 af/at standards. Connecting a camera automatically assigns an IP address. This eliminates manual network configuration for every endpoint. The internal 48V power supply provides consistent energy to connected devices.
Network protocols include TCP/IP, DHCP, and DNS. The system also supports DDNS and NTP. Compatibility with ONVIF ensures interoperability with third-party cameras. However, performance remains best when paired with Hikvision hardware. The metal housing aids in heat dissipation. This passive cooling design prevents overheating during continuous operation.
Security features include password protection and HTTPS encryption. Remote access is secured via user authentication levels. Administrators can define specific permissions for different users. This prevents unauthorized access to sensitive footage. The NVR operates reliably in temperatures ranging from -10 to +55 degrees Celsius.
Key Features
Advanced Video Compression
H.265+ technology reduces bandwidth usage and storage occupancy by up to 75 percent.Integrated PoE Switching
- Four independent PoE interfaces
- Plug-and-play configuration for IP cameras
- Total PoE power budget of 36 Watts
High-Resolution Output
- HDMI and VGA outputs provide simultaneous video display
- Support for 1920 x 1080 resolution on local monitors
Storage Scalability
One SATA interface accommodates a hard drive with capacity up to 6TB.
Specifications
| Feature | Specification |
|---|---|
| IP Video Input | 4-channel |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Decoding Capability | 1-ch @ 6 MP / 4-ch @ 1080p |
| SATA Interface | 1 SATA interface (up to 6 TB) |
| PoE Standard | IEEE 802.3 af/at |
| Power Consumption | ≤ 10 W (without HDD and PoE off) |
What’s in the Box
Hikvision DS-7104NI-Q1/4P NVR Unit
Power Adapter and Cord
USB Mouse
SATA Data and Power Cables
Quick Start Guide
Why Choose DS-7104NI-Q1/4P
Integrated power delivery reduces the need for external switches and complex wiring.
Efficient data encoding extends recording time without requiring additional hard drives.
Dual video outputs ensure compatibility with various professional monitoring displays.
Evans Mutua (verified owner) –
Decent NVR for a basic home setup. The 4MP output is sharp and the interface is easy to navigate once you set up the Hik-Connect app on your phone. My only small issue was the fan noise is slightly audible if you put it in a very quiet bedroom, but in the living room it’s fine. Delivery to Machakos was quick.
Mercy Wanjiku (verified owner) –
Good quality and very compact. Fits perfectly in my office cabinet without taking up too much space.
Samuel Odhiambo (verified owner) –
The PoE feature on this Hikvision is a lifesaver for my small shop in Nairobi. I didn’t have to look for extra power sockets for the cameras, just plug and play through the LAN ports. Very stable so far and the 4MP resolution is quite clear for the price.
