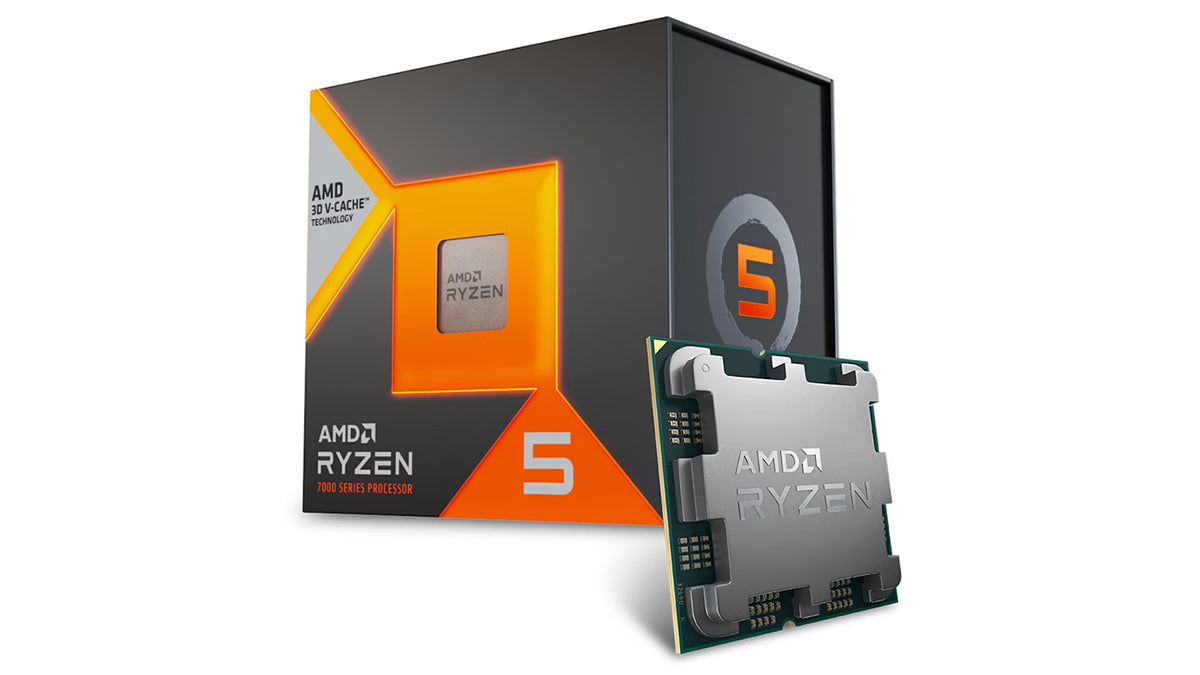

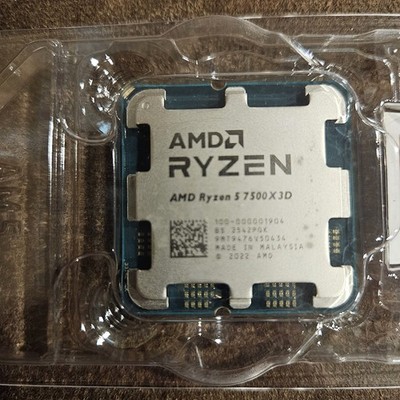

AMD Ryzen 5 7500X3D 6-Core 12-Thread AM5 Processor, 96MB 3D V-Cache, 65W

Six-Core Zen 4 Processor with Stacked Cache

The AMD Ryzen 5 7500X3D pairs six Zen 4 cores with 96 MB of L3 cache on the AM5 platform. AMD stacks 64 MB of 3D V-Cache over a 32 MB on-die array. Twelve threads run at a 4.0 GHz base clock and boost to 4.5 GHz.

The 65 W default TDP keeps thermal load modest for compact builds. The chip carries 6 MB of L2 cache and 384 KB of L1 across its cores. Precision Boost 2 manages clock scaling within the power and thermal envelope. Curve Optimizer and Precision Boost Overdrive remain available for manual tuning on supported boards.

Two DDR5 channels accept up to 128 GB of UDIMM memory, rated DDR5-5200 with two single-rank modules and DDR5-3600 with four dual-rank modules. The processor exposes PCIe 5.0 across 28 native lanes, 24 of them usable. Supported chipsets include A620, B650, B650E, X670, X670E, X870, X870E, B840 and B850.

Key Features

• 96 MB L3 Cache
  The stacked 3D V-Cache array holds game assets and working sets close to the cores, which cuts memory trips in frame-rate sensitive titles.

• Six Cores and Twelve Threads
  SMT doubles the thread count over six physical cores for parallel workloads and background services.

• 65 W Default TDP
  The processor stays inside a 65 W envelope at stock settings, so mid-range air coolers handle the heat load.

• AM5 Platform Support

  • Socket AM5 with A620 through X870E chipsets
  • DDR5 dual-channel memory, ECC supported with motherboard validation
  • PCIe 5.0 for graphics cards and NVMe storage

• Integrated Radeon Graphics
  Two RDNA 2 compute units at 2200 MHz drive display output and provide a fallback during GPU servicing.

• Tuning Controls
  EXPO memory profiles, Precision Boost Overdrive, Curve Optimizer and Ryzen Master remain available on supported boards.

• Instruction Set Coverage
  AVX-512, AVX2, AES, SHA and AMD-V extensions cover encryption, virtualisation and vector workloads.

• 89°C Thermal Limit
  The Tjmax ceiling of 89°C defines the throttle point for cooler sizing decisions.

Specifications

What’s in the Box

• Ryzen 5 7500X3D processor

• Documentation

Why Choose the 7500X3D

• The 96 MB cache pool lifts minimum frame rates in simulation, strategy and open-world titles.

• A 65 W envelope suits small-form-factor chassis and low-noise office builds.

• The AM5 socket spans budget A620 boards through X870E platforms, which supports staged upgrades.

• Integrated Radeon output keeps a workstation usable while a discrete card is out for service.

• PCIe 5.0 lanes and DDR5 memory give procurement a platform with a multi-year service window.
