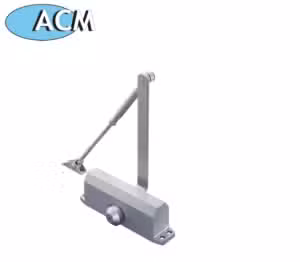

ACM-M60 Door Closer 65kg – Hydraulic Top-Mount Aluminium Body, 950mm Door Width, 180° Swing

Hydraulic Overhead Closer for Heavy Timber and Steel Doors

The ACM-M60 Door Closer is a hydraulic overhead unit for single-leaf doors weighing 45 kg to 65 kg. It mounts on the frame head above the hinge side and returns the leaf through a parallel arm linkage. An aluminium alloy body houses the rack, pinion and two speed valves.

Maximum door width is 950 mm and the opening arc reaches 180°. Separate valves govern sweep speed and latching speed, so the leaf decelerates before the strike plate. A non-hold-open design returns the door after every cycle. The unit carries no backcheck function.

The body measures 178 x 43 x 61 mm and weighs 2 kg. Tested durability reaches 1,000,000 open-and-close cycles on the manufacturer rig. A silver anodised aluminium finish suits timber, steel and fire-rated leaf assemblies in corridors and plant rooms.

Two through-bolts fix the closer to the frame, and the arm anchors to the leaf face. Installers set the sweep valve first, then the latch valve, then cycle the door to confirm the leaf seats without slamming. The body suits left and right hung doors when the arm is reversed.

Key Features

• Twin Hydraulic Speed Valves
  Independent sweep and latch adjusters set closing velocity and the final seating speed.

• 65 kg Door Weight Rating
  The closer carries single-leaf doors from 45 kg to 65 kg across a 950 mm maximum width.

• Aluminium Alloy Housing
  The die-cast body measures 178 x 43 x 61 mm and weighs 2 kg with the arm fitted.

• Mechanical and Mounting Detail

  • Parallel arm linkage drives a 180° opening arc.
  • Non-hold-open action returns the leaf after each pass.
  • Through-bolts fix the body to timber or steel frame heads.

• Million-Cycle Endurance
  The mechanism completes 1,000,000 test cycles before the manufacturer signs off the batch.

• No Backcheck Stage
  The closer omits the backcheck cushion, which keeps linkage inertia low on light commercial doors.

• Reversible Handing
  Technicians reverse the arm and body to suit left-hand or right-hand hung leaves.

Specifications

What’s in the Box

• ACM-M60 hydraulic closer body

• Parallel arm linkage and bracket

• Mounting bolts and wood screws

• Adjustment tool

Why Choose the ACM-M60

• The 45–65 kg band covers solid-core timber and hollow steel leaves that lighter units cannot pull shut.

• Sweep and latch valves sit under separate screws, so commissioning takes minutes rather than a shim pack.

• An aluminium alloy body resists corrosion in humid plant rooms and covered walkways.

• The overhead position clears the threshold for trolleys and wheeled equipment.

• Million-cycle endurance data gives maintenance planners a service interval to work from.
