4-in-1 Cable Tester RJ45 RJ11 USB BNC Network Continuity Checker
Original price was: KSh 2,200.00.KSh 1,800.00Current price is: KSh 1,800.00. ex VAT
4-in-1 Cable Tester RJ45 RJ11 USB BNC Network Continuity Checker
| Supported connectors | RJ45, RJ11, USB Type-A/B, BNC |
| LAN cable types | UTP and STP, Cat5e and Cat6 |
| Telephone conductors | 2 to 6 on RJ11 |
| Test function | Continuity, open, short, crossed pair |
| Indicators | 7 conductor LEDs plus fault LEDs |
| Remote unit | Detachable terminator |
| Power | 9 V alkaline battery, not included |
| Dimensions | 144 x 86 x 25 mm |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

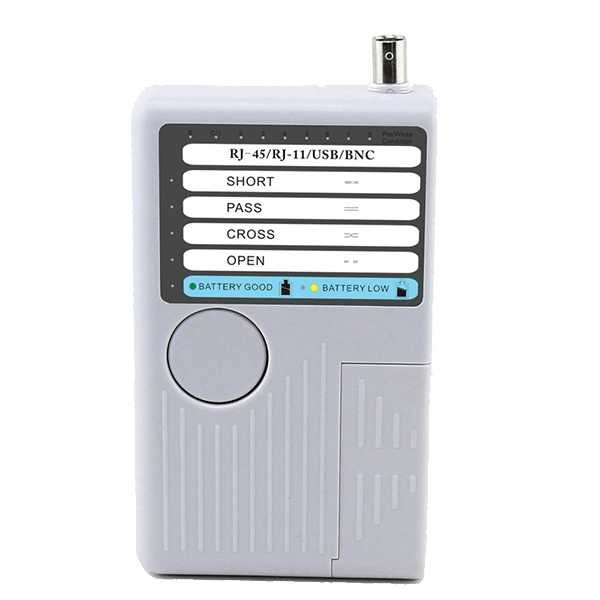

Handheld Continuity Tester for Four Cable Types
The 4-in-1 cable tester checks RJ45, RJ11, USB and BNC assemblies for continuity, opens, shorts and crossed pairs. One button starts each test, and seven conductor LEDs step through the pins in sequence. A detachable remote terminator plugs into the far end of installed wiring.
Four ports sit on the top face: RJ45 for Cat5e and Cat6 LAN leads, RJ11 for two to six conductor telephone cords, USB Type-A to Type-B, and BNC for coaxial runs. Shielded and unshielded LAN cable both test, and the shield path reports separately from the signal conductors.
A 9 V alkaline battery powers the unit, and auto power-off protects the cell between jobs. The ABS housing measures 144 x 86 x 25 mm and weighs 155 g without the battery. A beeper confirms results audibly when the LED bank sits out of sight at the far end of a run.
Key Features
Four Test Ports on One Chassis
RJ45, RJ11, USB and BNC sockets share a single housing, so one tool covers LAN, telephony, peripheral and coaxial work.Wire Map and Fault Detection
- Reports opens, shorts and crossed pairs on the conductor LEDs
- Identifies miswiring across all eight LAN conductors
- Separate indication for shield continuity on STP cable

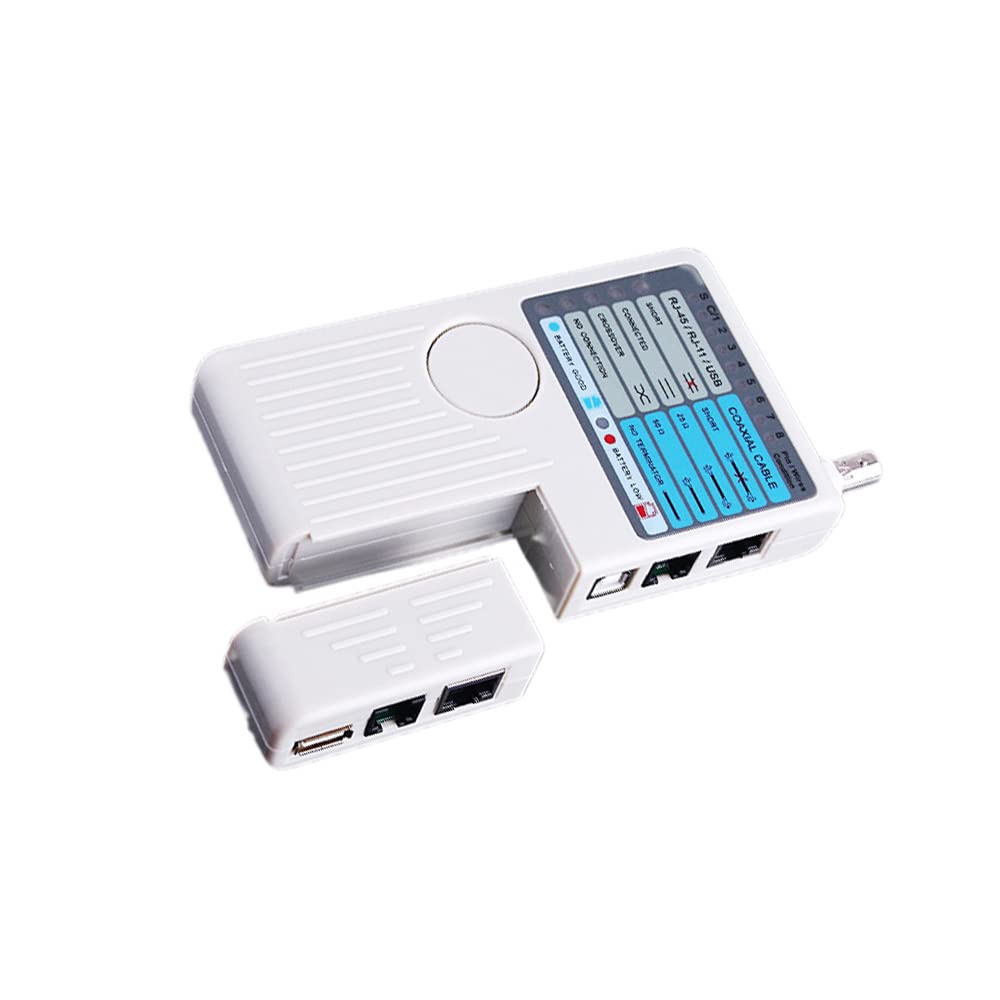

Detachable Remote Terminator
The passive end unit clips into the main body for storage and separates for testing installed cabling at the far outlet.Seven-Conductor LED Bank
Sequential LEDs walk the pin order and stop at the faulty conductor for fast fault location.Audible Beeper
A tone confirms continuity when the display faces away from the operator during long pulls.Auto Power-Off
The circuit shuts down after a period of inactivity to preserve the 9 V battery between site visits.Palm-Sized ABS Housing
The 155 g body fits a tool pouch and survives knocks inside a cable bag.
Specifications
| Feature | Specification |
|---|---|
| Supported connectors | RJ45, RJ11, USB Type-A to Type-B, BNC |
| LAN cable types | UTP and STP, Cat5e and Cat6 |
| Telephone conductors | 2 to 6 conductors on RJ11 male plugs |
| USB cable type | Type-A flat plug to Type-B square plug |
| Coaxial connector | BNC male |
| Test function | Continuity, open, short and crossed pair |
| Indicators | 7 conductor LEDs plus fault LEDs |
| Audible alert | Beeper on continuity |
| Remote unit | Detachable terminator, stores in main body |
| Operation | Single-button test |
| Power source | 9 V alkaline battery (not included) |
| Auto power-off | Yes |
| Housing material | ABS plastic |
| Colour | Grey |
| Dimensions | 144 x 86 x 25 mm |
| Weight | 155 g without battery |
| Operating temperature | 0 °C to 50 °C |
| Compliance | RoHS |
What’s in the Box
Main tester unit
Detachable remote terminator
RJ45 to BNC adapter
Carry pouch
User manual
Why Choose This Handheld Checker
One tool replaces separate LAN, phone, USB and coax testers in a technician kit.
The remote terminator verifies cabling already pulled through walls and ceilings.
Sequential LEDs shorten fault tracing on multi-pair runs during acceptance testing.
Auto power-off and a common 9 V cell simplify battery management on site.
The compact body fits a pouch alongside crimpers and punch-down tools.
