Z130 7-Inch Android Handheld POS Terminal with 58mm Thermal Printer

Handheld Android Sales Device

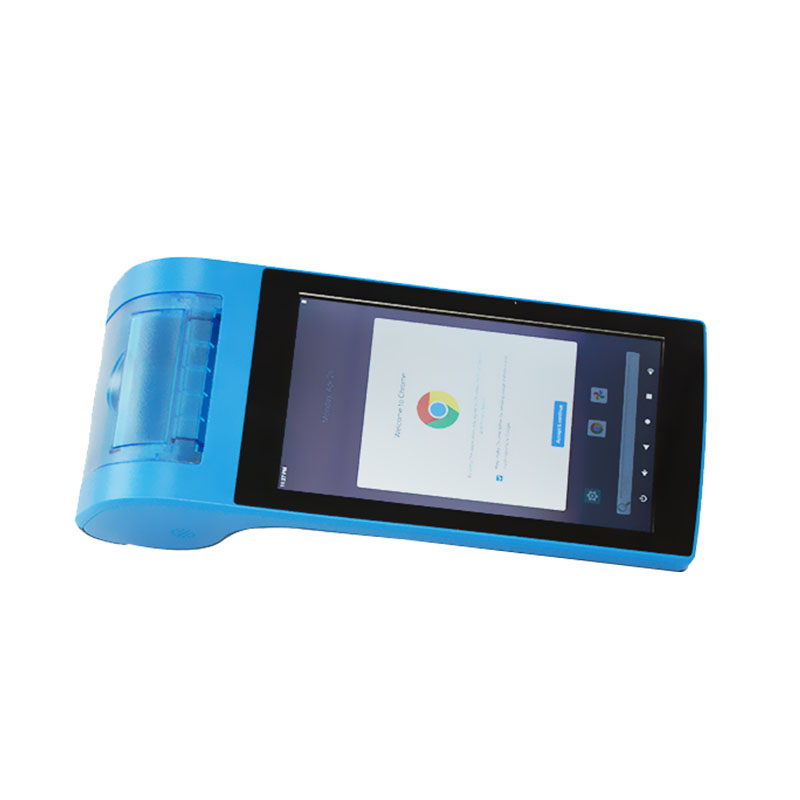

The Z130 POS terminal pairs a 7-inch capacitive touchscreen, an industrial 58 mm thermal printer and Android 10 inside one handheld chassis. Retailers, restaurants and field agents capture payment, scan stock and issue receipts from a single unit. The quad-core platform runs local applications without a tethered base station.

Memory runs 2 GB RAM against 16 GB of storage, enough for a till application plus offline item files and terminal keys. The 1024 x 600 TN panel accepts multi-point capacitive input for signature capture and on-screen keypads. A serial 2D scan engine ships as a factory option on this model.

A sealed 3.7 V 6600 mAh cell keeps the unit running through a full shift away from mains power, and a DC 12 V 2 A adaptor recharges it. Wi-Fi 802.11ac, Bluetooth 5.0 and optional 4G LTE with a micro-SIM slot cover fixed counters and mobile routes alike.

Key Features

• 7-inch multi-touch panel
  The 1024 x 600 TN display accepts capacitive multi-point input for signatures, PIN pads and product grids.

• Integrated receipt engine
  A 58 mm direct thermal line printer with a 50 km head rating prints slips at the counter or on the road.

• Android 10 quad-core platform
  2 GB RAM and 16 GB ROM run the checkout application alongside offline catalogue data.

• Wireless and cellular options

  • Wi-Fi 802.11 a/b/g/n/ac on 2.4 GHz and 5 GHz bands
  • Bluetooth 5.0 with backward support for 4.0, 3.0 and 2.0
  • Optional 4G LTE on B1/B3/B7/B8/B20/B38/B39/B40/B41 with micro-SIM, plus WCDMA and GSM fallback

• Shift-length battery
  The built-in 3.7 V 6600 mAh pack carries the handheld through extended trading hours.

• Peripheral interfacing
  USB host, USB OTG, RJ11 cash drawer, RJ11 serial, 3.5 mm audio and DC input sit on the base.

Specifications

What’s in the Box

• Z130 handheld unit with built-in 6600 mAh battery

• DC 12 V 2 A power adaptor

• 58 mm thermal paper roll

• Quick start guide

Why Choose Z130

• One portable checkout unit covers payment capture, slip printing and stock scanning, which removes a separate printer and scanner from the counter.

• The Android 10 build accepts standard retail and field-service APKs, so deployment skips bespoke firmware work.

• Dual-band Wi-Fi plus optional LTE keeps synchronisation alive in pop-up shops, deliveries and market stalls.

• GPS, GLONASS and BeiDou positioning supports route tracking and proof-of-delivery capture.

• Optional 2D scan and fiscal modules let integrators match local tax and inventory rules on the same hardware.
