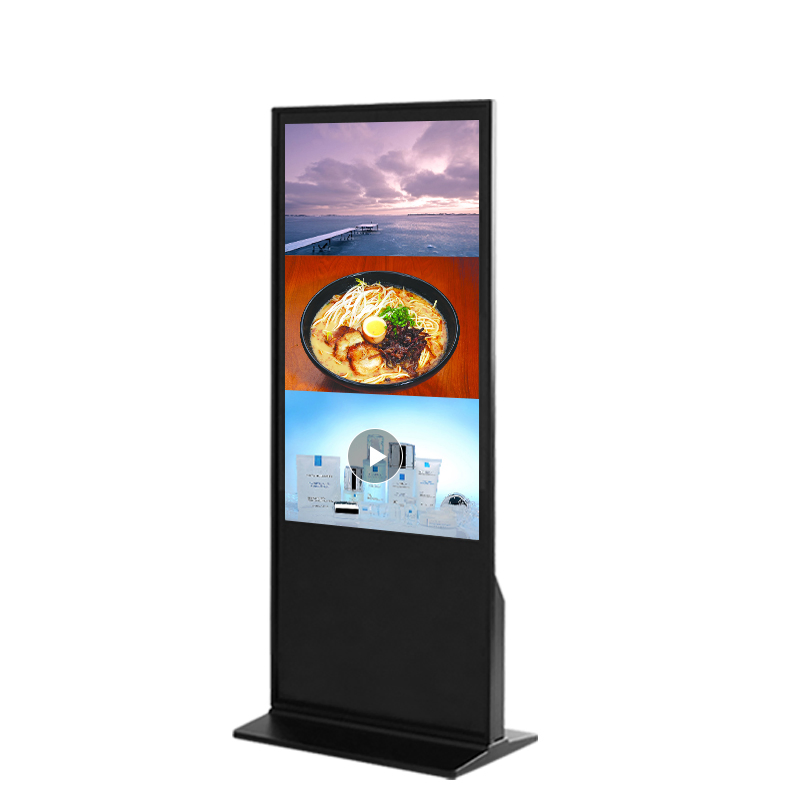

Y65-FAD01 65 Inch Digital Signage – Floor Standing IR Touch Windows i3

Interactive Floor-Standing Display

The 65 inch digital signage unit combines a 1920 x 1080 LED-backlit panel with a built-in Windows PC and a 10-point infrared touch overlay. It ships as a floor-standing kiosk for lobbies, showrooms, and conference areas. The integrated i3 processor runs Windows 11 Pro without an external media player.

The display delivers 350 cd/m² brightness and a 1200:1 contrast ratio, with 178-degree viewing angles on both axes. An 8 ms response time keeps cursor tracking and video playback smooth. The IR touch layer registers 10 simultaneous contact points and connects over USB. A tempered glass surface protects the panel from daily contact.

The onboard Intel Core i3 fourth-generation CPU pairs with 8 GB of DDR3 memory and a 128 GB SSD. Windows 11 Pro comes pre-installed and activated. Ports include HDMI, VGA, four USB 2.0, one USB 3.0, RJ45 Ethernet, and 3.5 mm audio. Wi-Fi and Bluetooth are available for wireless content delivery. The floor stand uses a powder-coated steel base with lockable castors for relocation.

The unit accepts 100-240 V AC input and draws about 120 W in normal operation. A VESA 400 x 400 mm pattern allows wall mounting if the stand is removed. The kiosk measures approximately 1980 mm high, 780 mm wide, and 60 mm deep at the panel. A rear service door gives access to the PC module and cabling. The display supports 24/7 operation and includes an automatic brightness sensor. Content updates run through the local Windows desktop or a network management agent.

Key Features

• 10-Point Infrared Touch
  The IR overlay registers ten simultaneous contacts for multi-user interaction and annotation.

• Integrated Windows PC
  An Intel Core i3 fourth-generation CPU, 8 GB RAM, and 128 GB SSD run the signage application locally.

• Full HD Commercial Panel

  • 1920 x 1080 resolution with 350 cd/m² brightness
  • 1200:1 contrast ratio and 178-degree viewing angles
  • 8 ms response time for smooth video and touch tracking

• Activated Windows 11 Pro
  The operating system ships pre-installed and activated, ready for content deployment.

• Floor Standing Steel Base
  A powder-coated base with lockable castors supports relocation across a showroom floor.

• Flexible Connectivity
  HDMI, VGA, USB, RJ45 Ethernet, Wi-Fi, and Bluetooth cover wired and wireless content feeds.

• VESA Wall-Mount Option
  A 400 x 400 mm pattern allows the panel to be removed from the stand and wall mounted.

• 24/7 Duty Rating
  The panel and PC module support continuous operation for lobby and retail signage.

Specifications

What’s in the Box

• 65-inch interactive display panel

• Floor stand with castors

• Power cable

• USB touch cable

• Remote control

• Setup guide

Why Choose This Interactive Kiosk

• The integrated PC removes the need for an external media player or set-top box.

• Ten-point IR touch supports collaborative annotation and self-service navigation.

• The floor stand with castors simplifies repositioning in retail and exhibition spaces.

• Activated Windows 11 Pro allows immediate deployment of standard signage software.

• A 65-inch commercial panel with 350 cd/m² brightness suits bright indoor environments.
