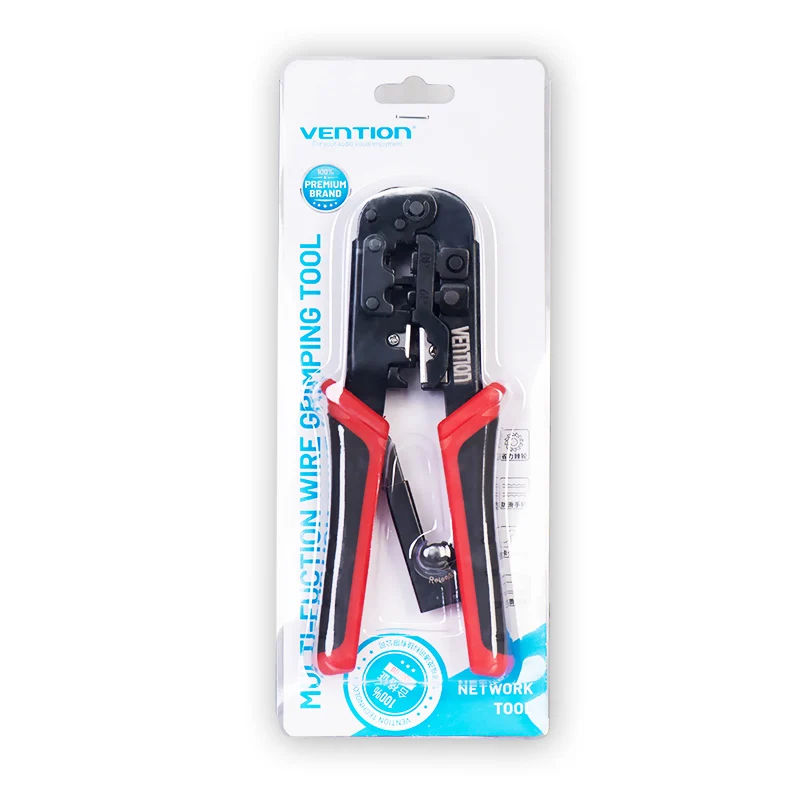

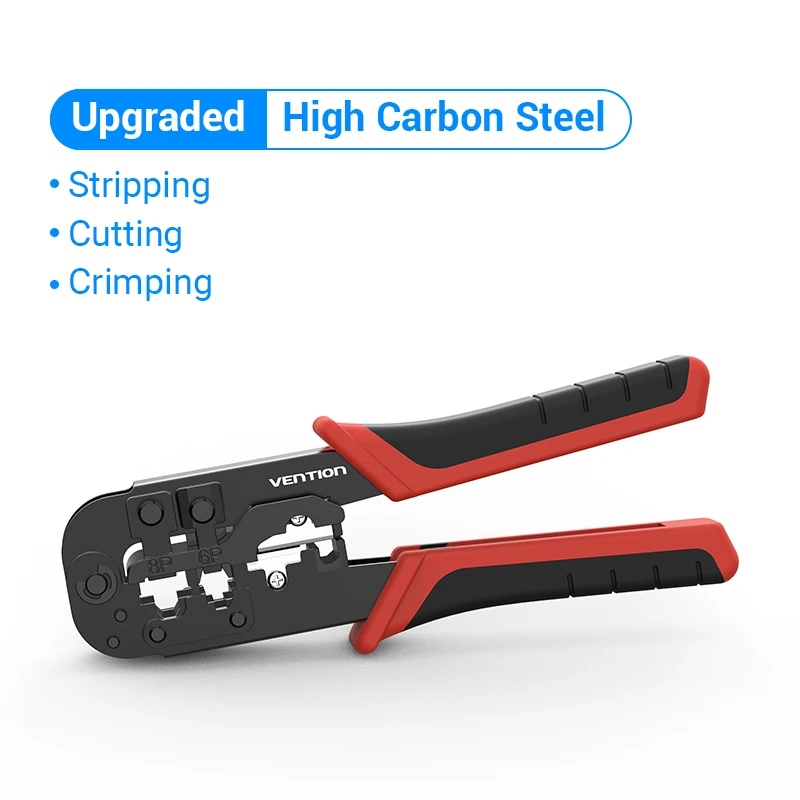

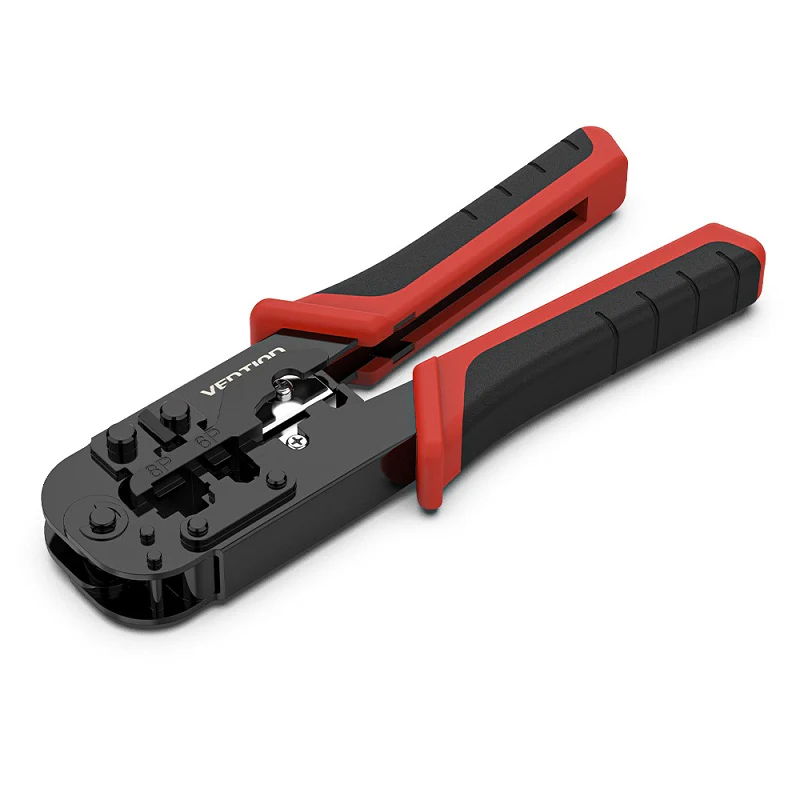

Vention KEDBO Multi-function Crimping Tool RJ45 RJ11 RJ12

Vention KEDBO Crimping Tool

The Vention Multi-function Crimping Tool provides a robust mechanical solution for terminating modular communication connectors in high-density networking environments. This specialized instrument supports multiple modular plug standards including 8P8C (RJ45), 6P6C (RJ11), and 6P4C/6P2C (RJ12) configurations. It utilizes a high-carbon steel frame to maintain precise alignment during the compression cycle. Therefore, network technicians achieve consistent contact seating across all pins. This tool incorporates a vertical crimping design to minimize terminal deformation during high-pressure application. The integrated stripping module features a depth-stop to prevent accidental nicking of the twisted pair insulation. This is critical for maintaining Category 6 performance specifications, as insulation damage can alter the impedance of the cable. Furthermore, this device supports both shielded and unshielded modular plugs.

Key Features

• Integrated Ratchet Mechanism
  The internal ratcheting system ensures the tool completes a full compression cycle before releasing the handles to prevent incomplete crimps.

• Multi-Standard Compatibility

  • 8P8C (RJ45) for Ethernet data cabling.
  • 6P6C/6P4C (RJ11/RJ12) for voice and telecommunication lines.
  • 4P4C/4P2C for telephone handset cords.

• Precision Cutting and Stripping
  The assembly includes sharp SK5 steel blades that allow users to strip outer jackets and cut conductors without damaging copper filaments.

• Durable Carbon Steel Frame
  The frame undergoes a black oxide finish treatment to enhance corrosion resistance in humid server room environments.

Specifications

What’s in the Box

• 1 x Vention KEDBO Multi-function Crimping Tool

• 1 x Replacement Blade Set (Model Dependent)

Why Choose This Tool

• The precise die-cast head ensures that every pin is driven to the exact depth required by TIA/EIA standards for network integrity.

• Combining cutting, stripping, and crimping into a single unit reduces the tool load for field engineers during site installations.

• High-carbon steel prevents the frame from flexing over time, ensuring the instrument maintains its calibration through thousands of termination cycles.

• The built-in blade guard protects the operator during cutting and stripping tasks while the emergency release lever provides safety for blockages.
