USB to USB Cable 1.5m, USB 2.0 A-B Male to Male, 28AWG/24AWG Double Shielded 480Mbps

USB 2.0 Peripheral Lead

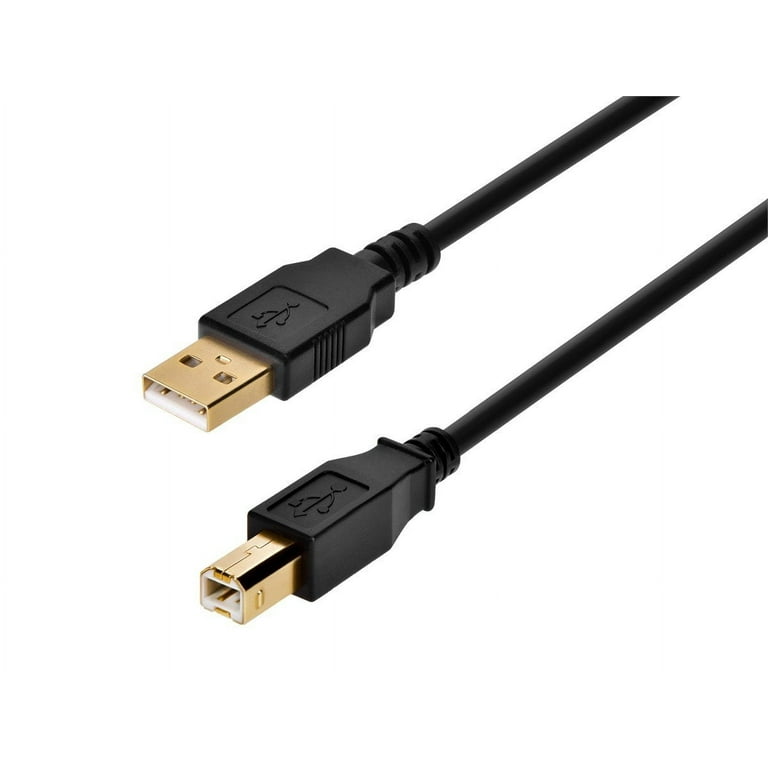

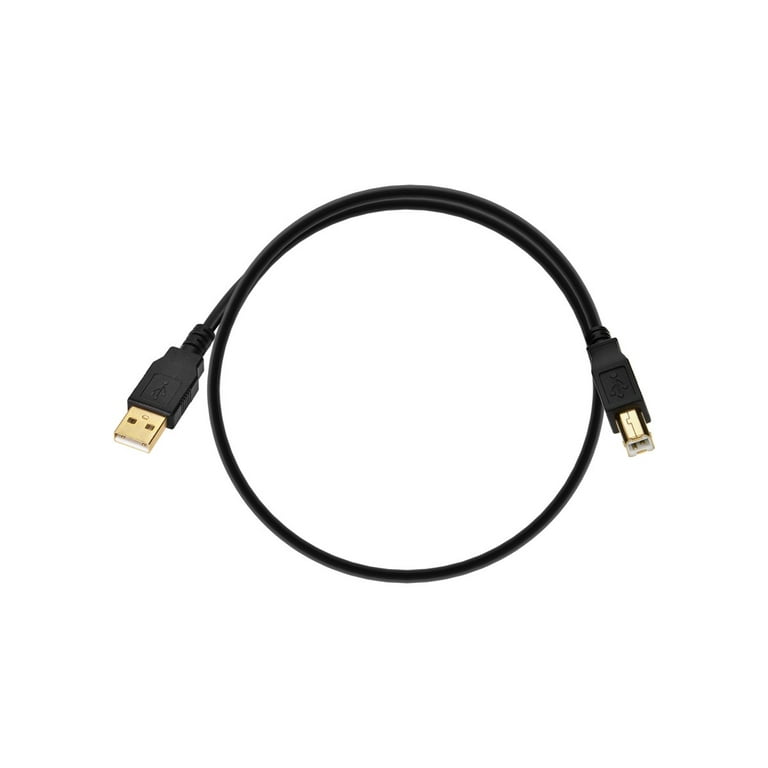

The USB 2.0 A-B cable connects a USB 2.0 Type-B device to a host Type-A port across a 1.5 m run. It carries 480 Mbps High-Speed signalling with backward compatibility to 12 Mbps and 1.5 Mbps. The assembly suits printers, scanners, external drive enclosures and audio interfaces.

A 28 AWG twisted data pair handles the differential signal, while two 24 AWG conductors carry VBUS and ground. The data pair holds 90 Ω differential impedance, which keeps reflections inside the USB 2.0 eye mask. Foil plus braid shielding blocks radiated noise from nearby power supplies and displays.

Moulded PVC strain reliefs protect the solder joints at both plugs. Gold-plated contacts limit oxidation across repeated mating cycles. The cable measures about 4 mm across the jacket, so it routes through tight grommets and cable managers. Operating temperature spans -20 °C to 80 °C, and the lead carries RoHS compliance.

Key Features

• USB 2.0 High-Speed Data Path
  The lead sustains 480 Mbps transfer and falls back to Full-Speed and Low-Speed devices without a setting change.

• Mixed Gauge Construction

  • 28 AWG twisted pair for the D+ and D- data lines
  • 24 AWG conductors for VBUS and ground
  • 90 Ω differential impedance on the data pair

• Double Shielding
  Aluminium foil plus braid covers the data pair and limits EMI ingress along the 1.5 m run.

• Gold-Plated Contacts
  Plated pins resist corrosion through repeated plug and unplug cycles at the host and device ends.

• Moulded Strain Relief
  PVC overmoulding spreads bending stress away from the solder terminations.

• 1.5 m Reach
  The length covers desk peripherals and shelf-mounted printers without excess slack.

Specifications

What’s in the Box

• 1 x USB 2.0 Type-A to Type-B cable, 1.5 m

Why Choose This Peripheral Lead

• The 1.5 m span reaches shelf-mounted printers and scanners from a rear-panel host port.

• 24 AWG power conductors limit voltage drop on bus-powered peripherals.

• Double shielding keeps 480 Mbps links stable beside switch-mode supplies.

• Gold-plated pins survive frequent device swaps in shared work areas.

• Moulded reliefs reduce conductor fracture at the plug entry point.
